Mount indoor unit
6
18
If you have already passed the refrigerant piping through the hole in the wall, proceed to Step 4.
Otherwise, double-check that the ends of the refrigerant pipes are sealed to prevent dirt or foreign
materials from entering the pipes.
Slowly pass the wrapped bundle of refrigerant pipes, drain hose, and signal wire through the hole
in the wall.
Hook the top of the indoor unit on the upper hook of the mounting plate.
Check that unit is hooked firmly on mounting by applying slight pressure to the left and right-hand
sides of the unit. The unit should not jiggle or shift.
Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit
snaps onto the hooks along the bottom of the mounting plate.
Again, check that the unit is firmly mounted by applying slight pressure to the left and the right-hand
sides of the unit.

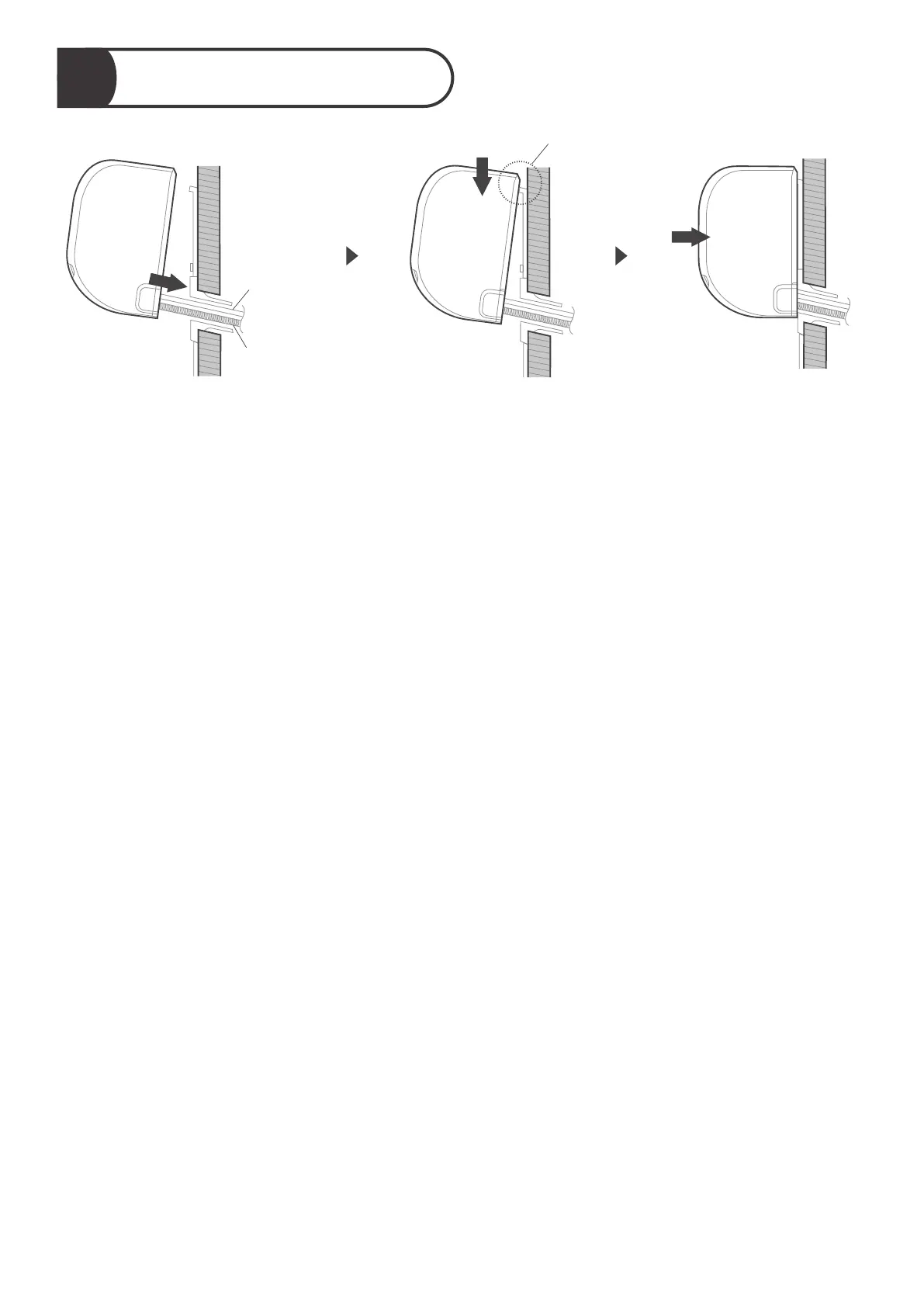

Put pipes in wall hole Hook it and press down
lightly to secure
Check that the unit is
firmly mounted
Drain
hose
Connecting
cable
Hook it
If you installed new connective piping to the outdoor unit, do the following:
