9.3.5 Open circuit or short circuit of temperature sensor diagnosis and solution(E5)

Error Code

E4/E5/F1/F2/F3

Malfunction decision

conditions

If the sampling voltage is lower than 0.06V or higher than 4.94V,

the LED will display the failure.

Supposed causes

● Wiring mistake

● Sensor faulty

● PCB faulty

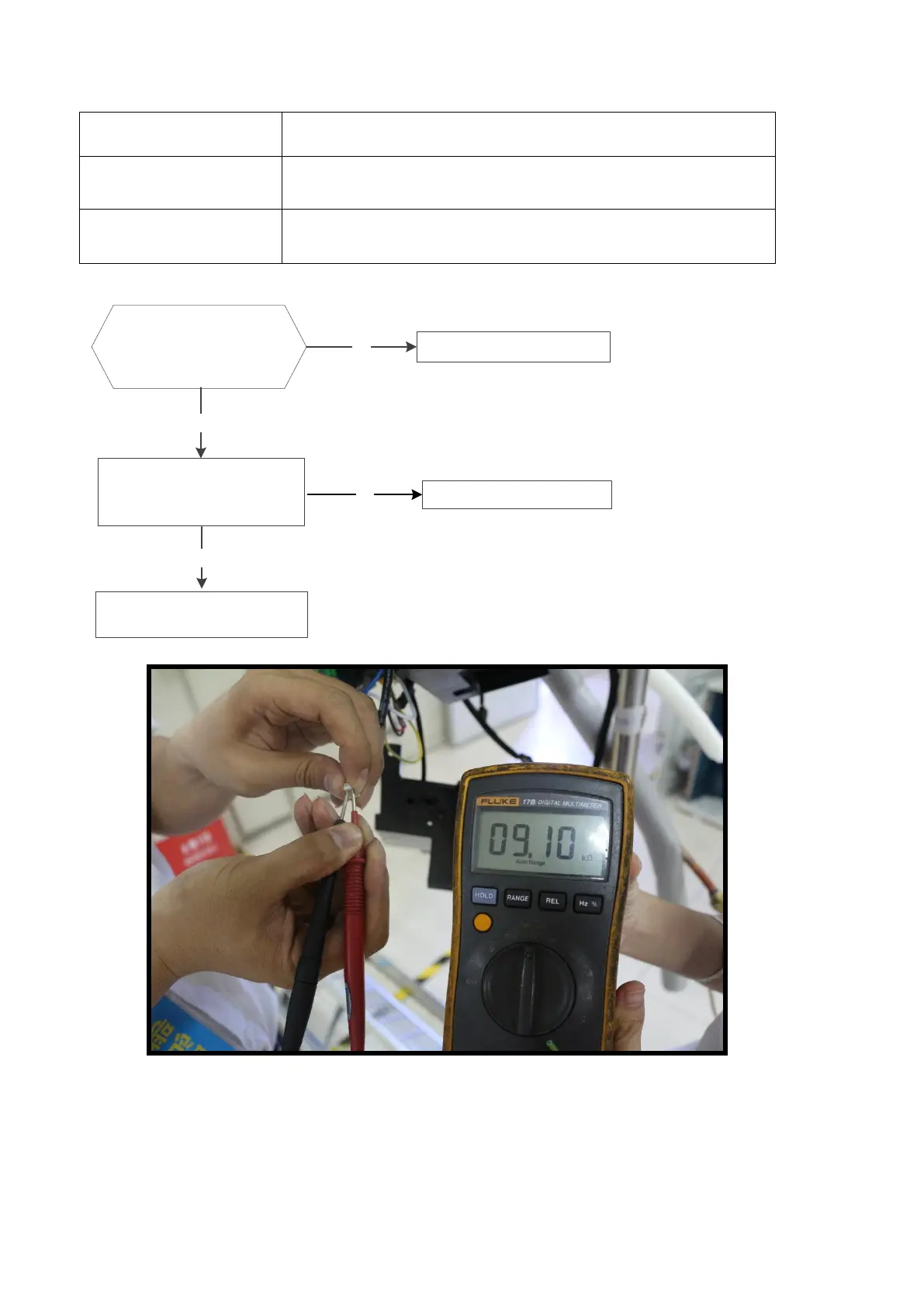

Trouble shooting:

Check the connection

between temperature

sensor and PCB.

Correct the connectionNo

Yes

Replace indoor or outdoor

main PCB

Measure the resistance

value of the sensor

Repalce the sensorNo

Yes
