Midea CSU-09HHAA User Manual

CSU-05HCAA CSU-07HCAA CSU-09HCAA
Power Cable
Unit:mm
liquid pipe 6.35 1/4F
gas pipe 9.52 3/8F
external diameter after
heat insulation
Wireless Remote controller
•••
•••
••
•••
•••
Body Center
3

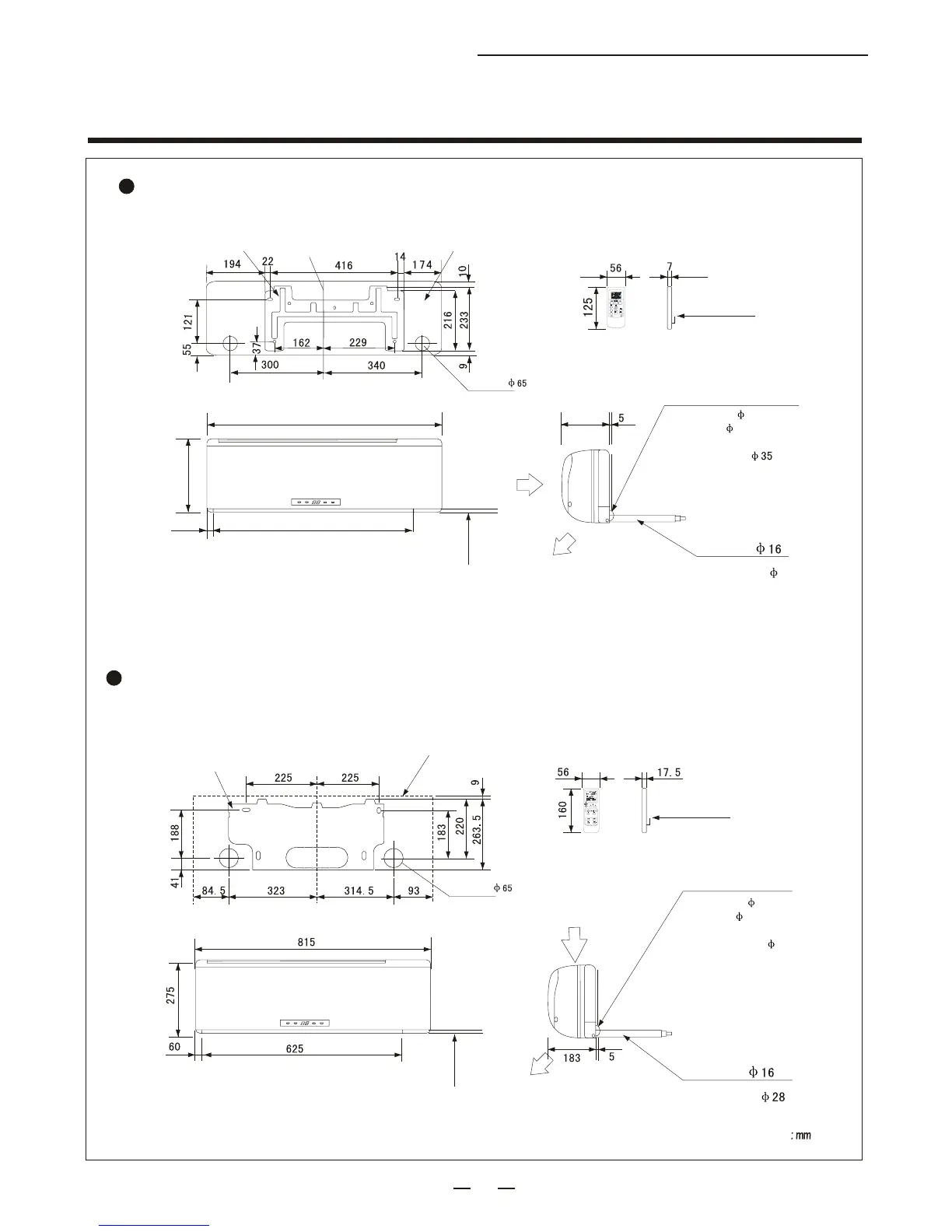

II .Dimensions
Installation & Maintenance Manual
mounting unit
indoor unit
porthole
mounting unit
air inlet
air outlet
drain hose
external diameter after
heat insulation
28
HUALING
CSU-09HHAA indoor unit
CSU-12HCAA CSU-12HHAA indoor unit
mounting unit
indoor unit
Mounting board
liquid pipe 6.35 1/4F
gas pipe 12.7 1/2F
external diameter after
heat insulation 35
air inlet
air outlet
wireless remote controller
drain hose
external diameter after
heat insulation
porthole
Unit
HUALING

Midea CSU-09HHAA Specifications
