II.Dimensions
Installation & Maintenance Manual
piping for liquid pipe joint 6.35
piping for gas pipe joint 12.7
air inlet
air inlet
air outlet
If there exists only
50-60 cm clearance
from the back to the wall,
the left side of the outdoor
unit must be entirely open.
100mm Above
100mm Above
100mm Above
500mm
Above
350mm Above
mounting hole distance
Outdoor unit
CU-07CA
CU-12C(H)A
CU-09C(H)A
CU-18C(H)A
CU-21C(H)A
CU-24C(H)A
Model
I
H
G
F
E
D
C
B
A

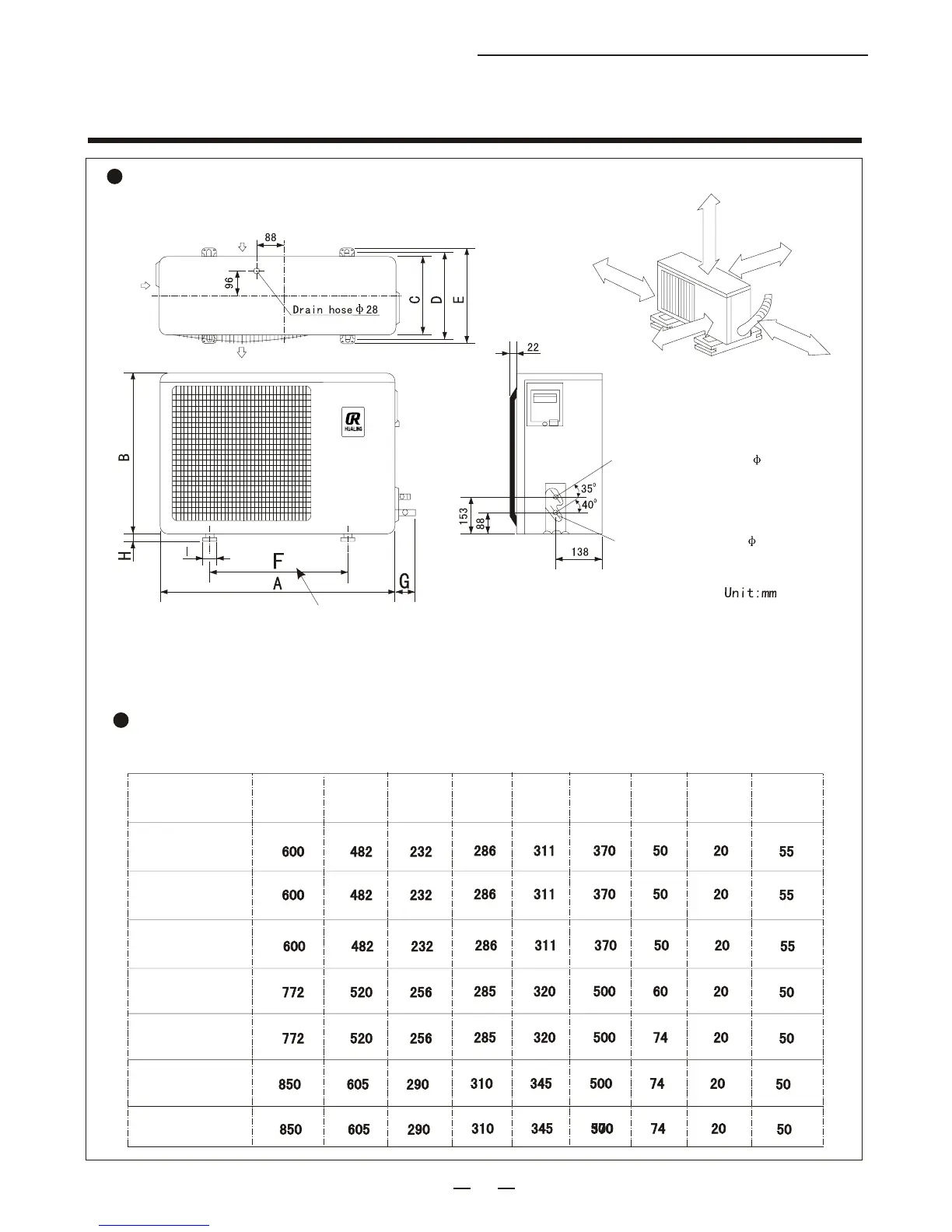

OUTDOOR UNITS DIMENSION
