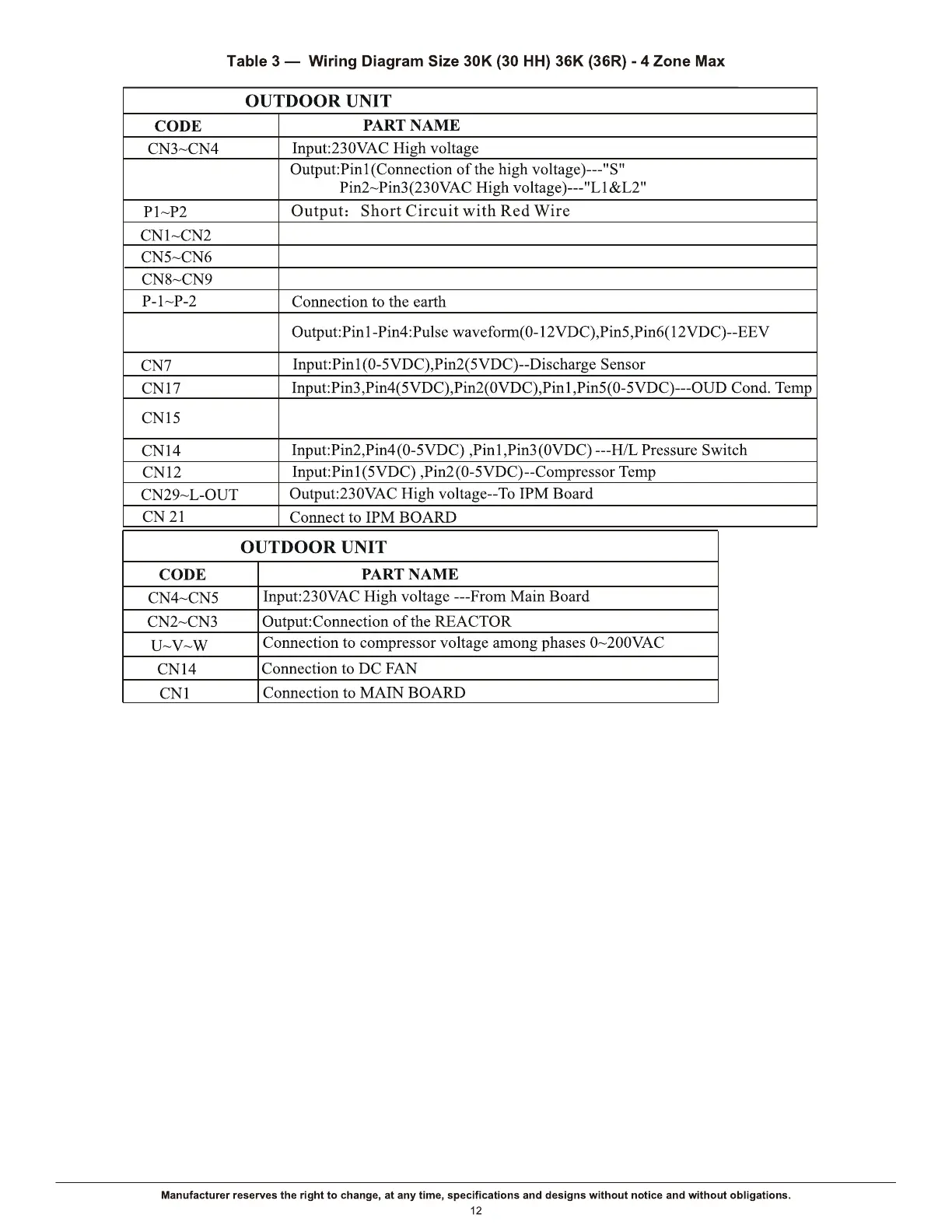

CN16,CN20,
CN23,CN25
CN18,CN19,
CN22,CN24
Input:Pin1,Pin3,Pin5,Pin7(5VDC)
Pin2,Pin4,Pin6,Pin8(0-5VDC)--IDU Pipe Temp
IPM DRIVE BOARD
MAIN CONTROL BOARD
Output:230VAC High voltage----REVERSE VALVE
Output:230VAC High voltage----CRANKCASE HEATER
Output:230VAC High voltage----CHASSIS HEATER
DLCM(R/H)B: Service Manual
