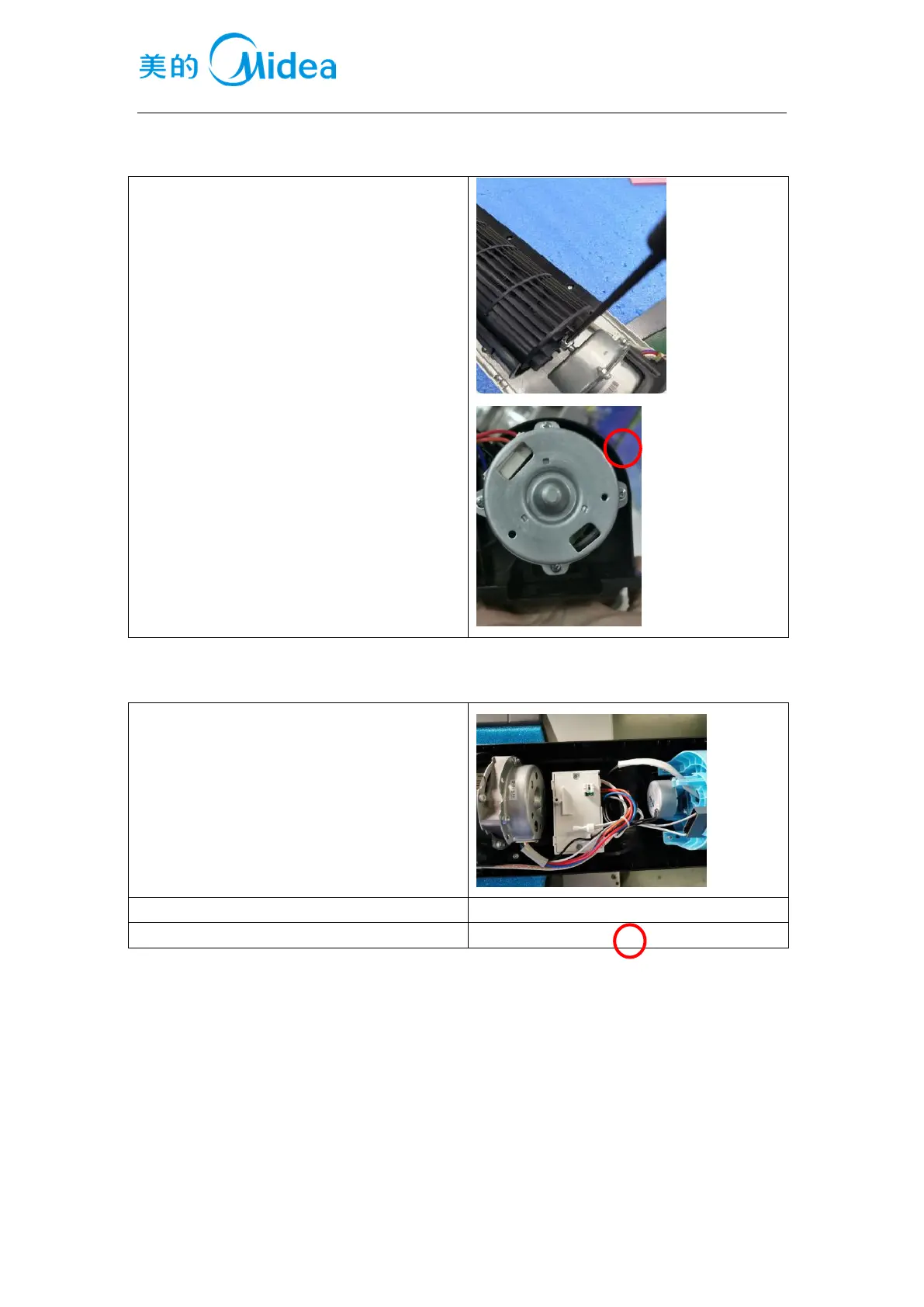

2.8 风轮的拆卸 Disassembly of the wind wheel
用螺丝刀取下风轮的固定螺钉，用螺丝刀取下
电机安装的固定螺钉，即可取下电机。。
Use the screwdriver to take down the fixing
screw of the wind wheel
Remove the motor with the screwdriver. Remove
the motor with the screwdriver.
2.9 运动组件的拆卸 Disassembly of motion components
用螺丝刀取下摇头组件的固定螺钉，即可取下
摇头组件。
Use screw driver to remove the fixing screws of
the shaking head assembly and remove the fixing
screws of the shaking head assembly
