维修手册 Service Manual, 2019 v1.0
9 / 16
3. 整机的安装 Function and operation

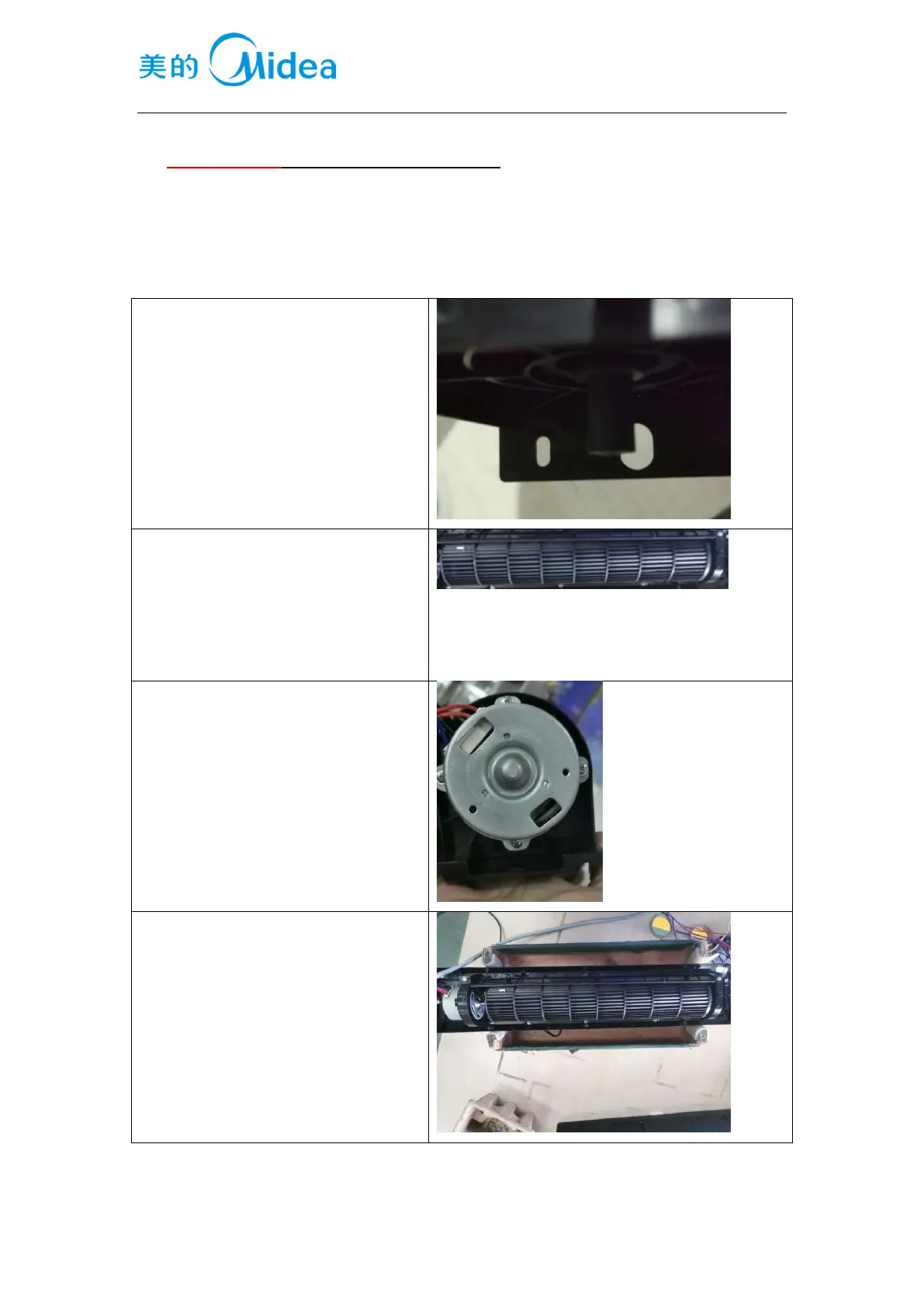

3.1 控制系统和风道系统的安装 Installation of control system and duct system
将轴套装入风道轴套孔中
Load the shaft sleeve into the shaft sleeve
hole of the wind channel
风轮装入风道中，风轮轴卡入轴套孔中
The shaft sleeve is loaded into the shaft
sleeve hole of the wind passage by
aligning the shaft sleeve hole in the wind
wheel
用螺丝刀拧紧电机安装的固定螺钉
Tighten the fixed screw of the motor with
a screwdriver
风道组件与前壳装配并用螺钉固定好，
用螺丝刀拧紧导风板的固定螺钉
After assembling the air duct and the
front shell, fix it with screws。Tighten the
fixed screw of the guide plate with a
screwdriver
