Fig 3-8
Fig 3-9
Fig 3-10

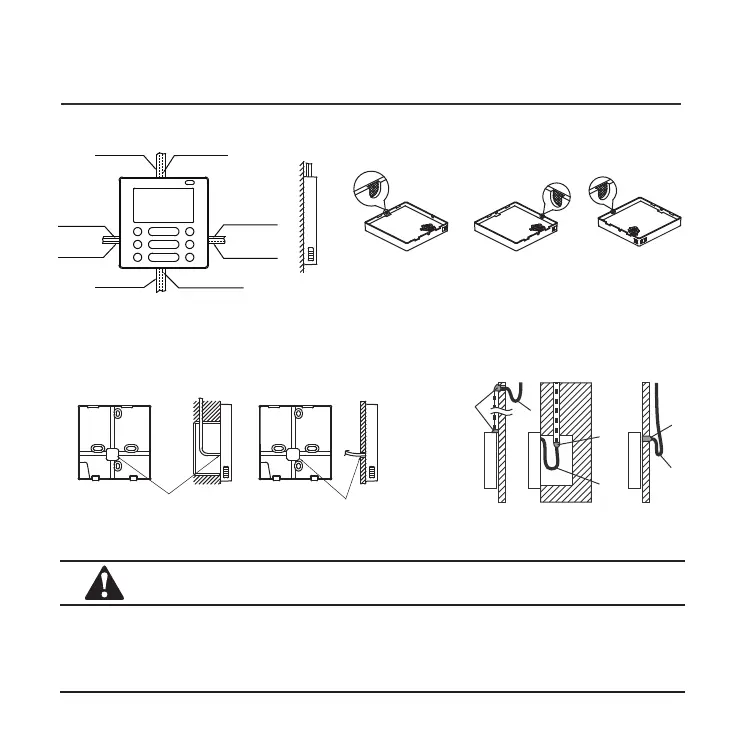

3. INSTALLATION METHOD
8
6. Wiring
Top side
wire outlet
Left side
wire outlet
Right side
wire outlet
Bottom side
wire outlet
Cutting place of top
side wire outlet
Cutting place of left
side wire outlet
Cutting place of right
side wire outlet
A. For wiring in the slot, four outletting positions.
There are three need cutting.
Diameter of wall hole：Φ20mm
Embedded switch
box wiring
B.Shielded wiring
Wiring
hole
Wiring through the wall
Wall hole and wiring hole
Putty
Putty
Putty
Trap
Trap
Trap
CAUTION
Avoid the water enter into the wired remote controller, use trap and putty to seal the
connectors of wires during wiring installation. (Fig.3-10)
When under installation, reserve certain length of the connecting wire for convenient
to take down the wired remote controller while during maintenance.
Line groove
Line groove
Line groove
Line groove
