4
3. INSTALLATION METHOD

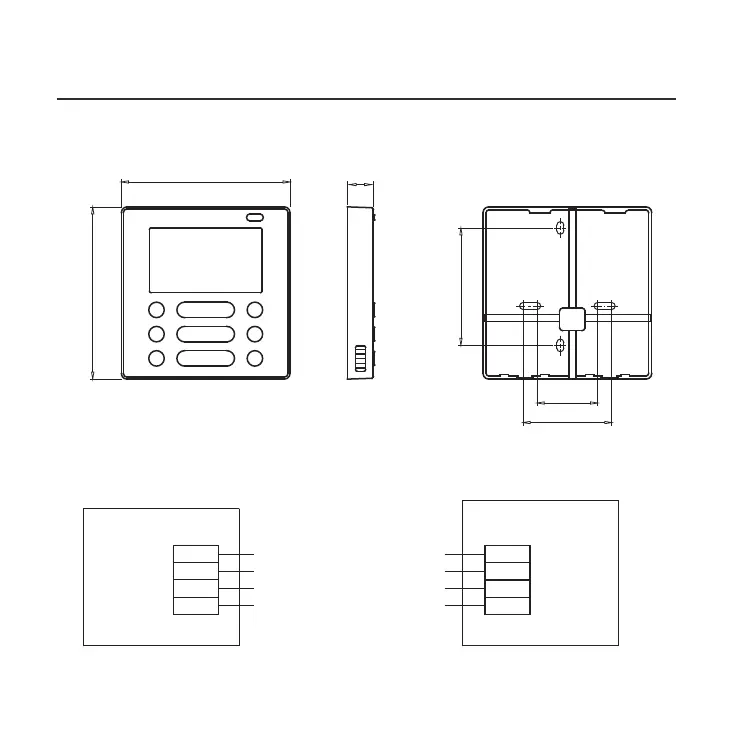

Fig 3-1
Fig 3-2
1.Wired remote controller structure size figure
2.Wiring Principle Sketch:
red
black
yellow
brown
red
black
yellow
brown
Insert of the
mainboard CN40
Wire controller
Indoor unit mainboard
4-Core Shield Cable, the length
is decided by installation
-----------------------------------
-----------------------------------
-----------------------------------
-----------------------------------
120
122
18.5
83.5
46
62
