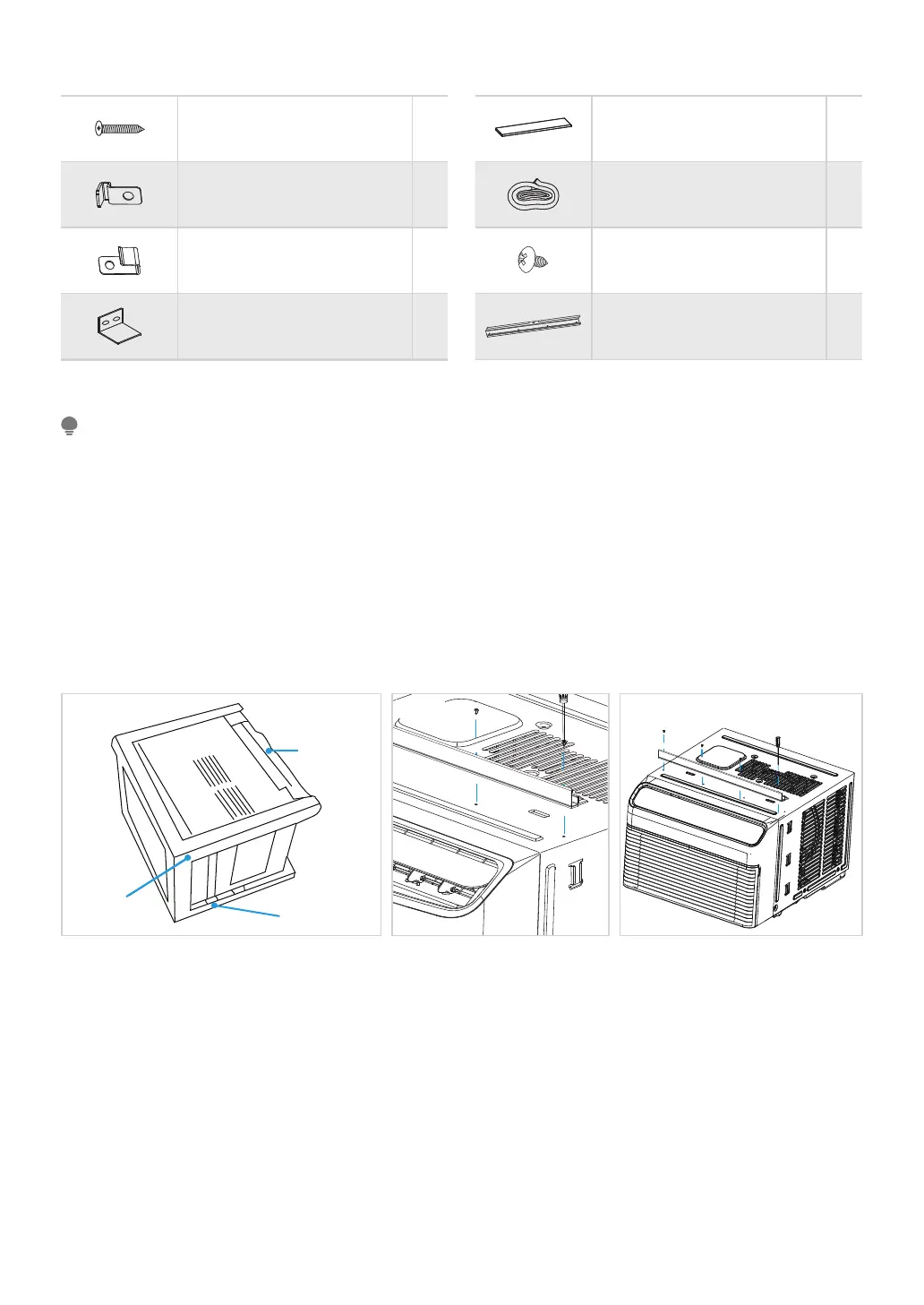

1/2” Screws 7
Lock frame
(For Wooden windows)
2
Lock frame
(For Vinyl-Clad windows)
2
Sash lock 1
Weather stripping
(10” x 1-1/2” x 1/6”)
2
Window sash seal foam 1
3/8” Screws 4
Top Rail 1
Installation Hardware
Before installing unit, the top rail must be assembled on the unit.
A. Remove the air conditioner from the carton and place on a fl at surface.
B. Remove top rail from the rear of the packaging material as shown in Fig. A.
C. Align the hole in the top rail with those in the top of the unit as shown in Fig. B.
D. Secure the top rail to the unit with the 3/8” Screws as shown in Fig. C.
Some assembly is required. Please read these instructions carefully.
• SAVE CARTON and these INSTALLATION INSTRUCTIONS for future reference. The carton is the best way
to store unit during winter, or when not in use.
• DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE.
• FOR SAFETY REASONS, THE TOP RAIL MUST BE SECURELY FASTENED WITH ALL FOUR (4) SCREWS.
NOTE
Top Rail
Fig. A
Top Rail
Packaging
Fig. B Fig. C
To Next Page
