Indoor unit installation
Installation 199

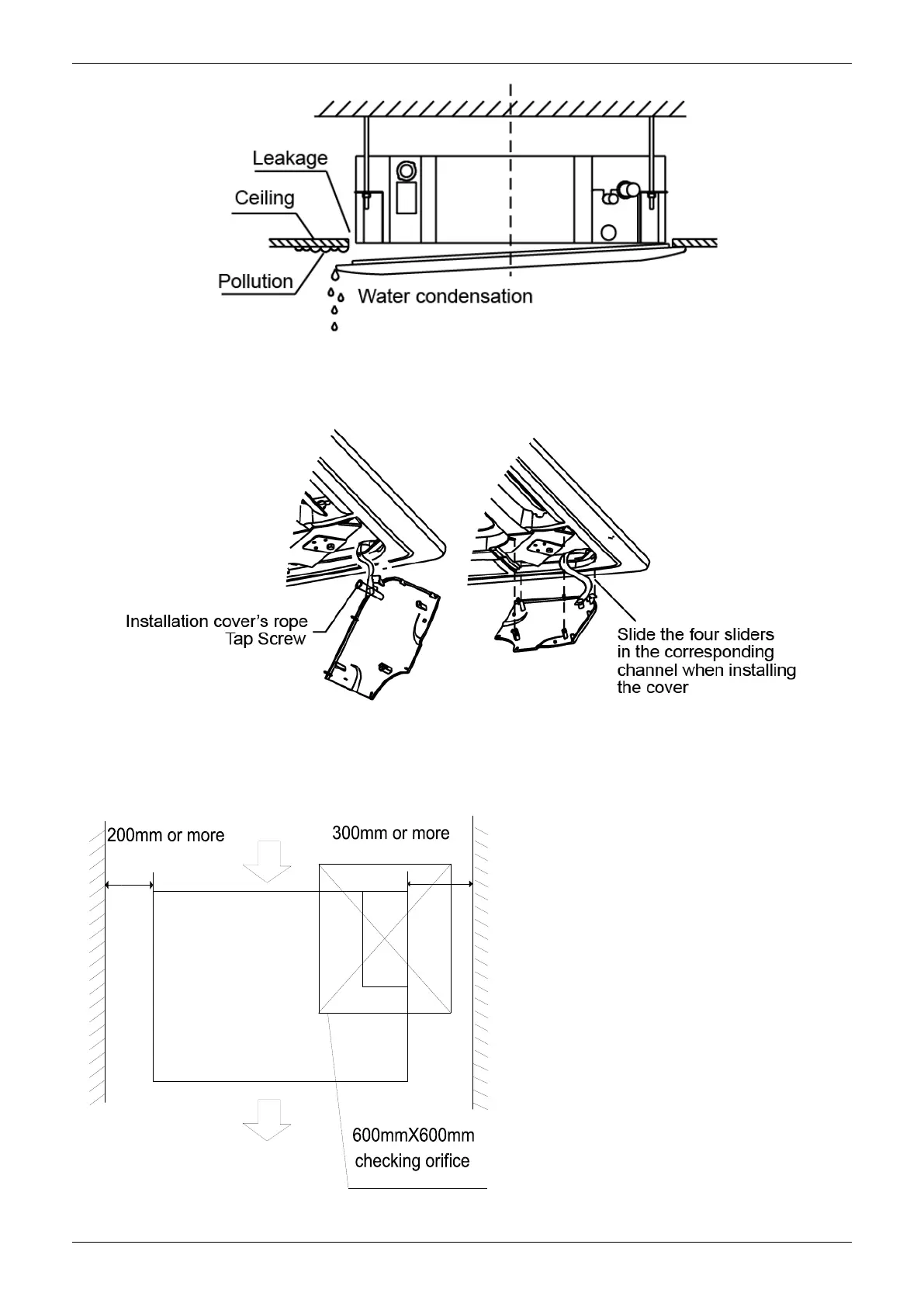

Hang the air-in grill to the panel, then connect the lead terminator of the swing motor and that of the control
box with corresponding terminators on the body respectively.
Install the 4 corner covers back.
Note: The panel shall be installed after the wiring connected.
3.3 A5 duct indoor unit installation
3.3.1 Service space for indoor unit
3.3.2 Bolt pitch
