Indoor unit installation
Installation 201
3.3.5 Install the air filter

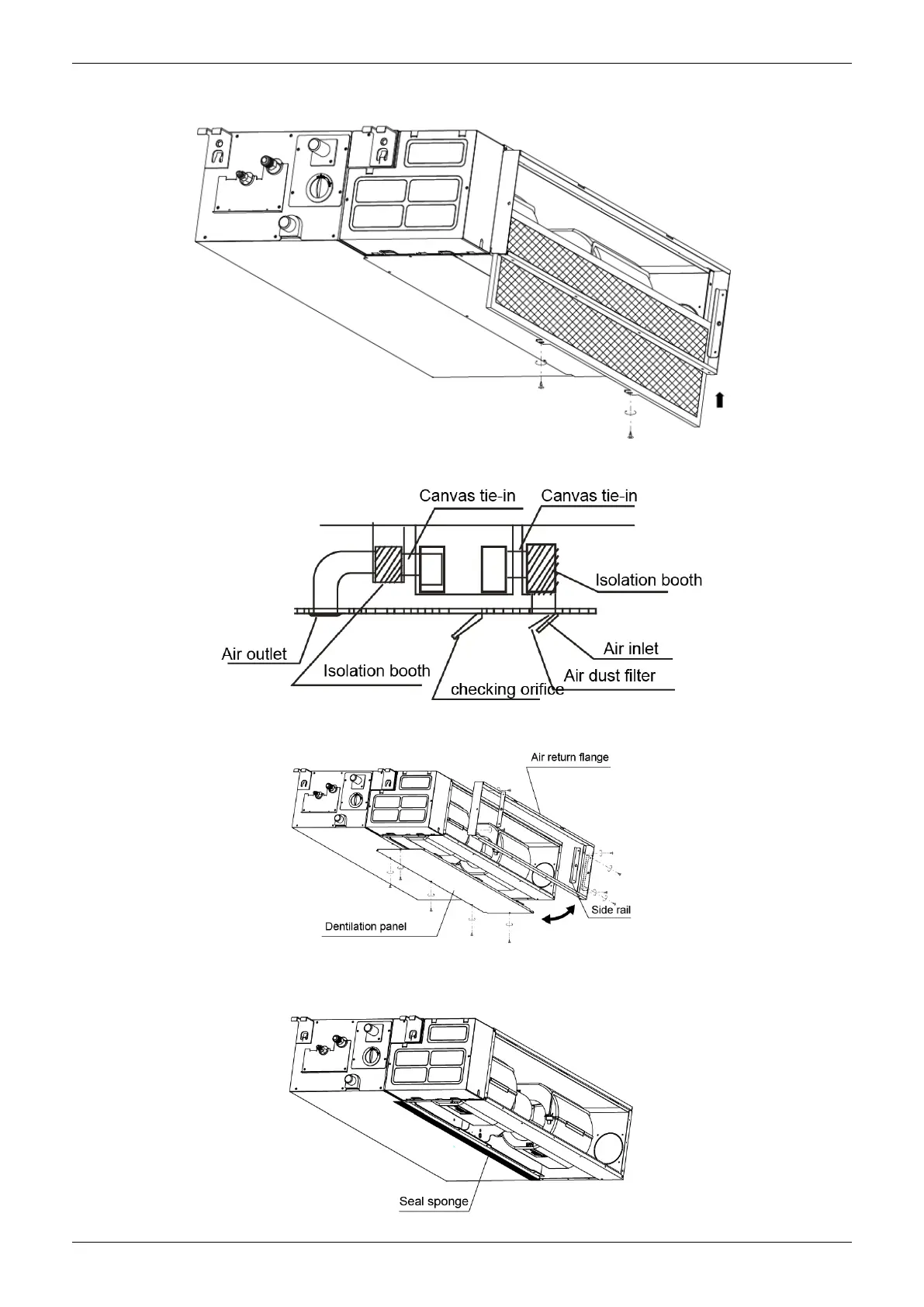

Insert the air filter through the filter slot and fix it with 2 screws.
3.3.6 Install the air duct
Please design the air duct as below recommended picture
3.3.7 Change the air inlet direction
① Take off ventilation panel and flange, cut off the staples at side rail.
② Stick the attached seal sponge as per the indicating place in the following fig, and then change the
mounting positions of air return panel and air return flange .
