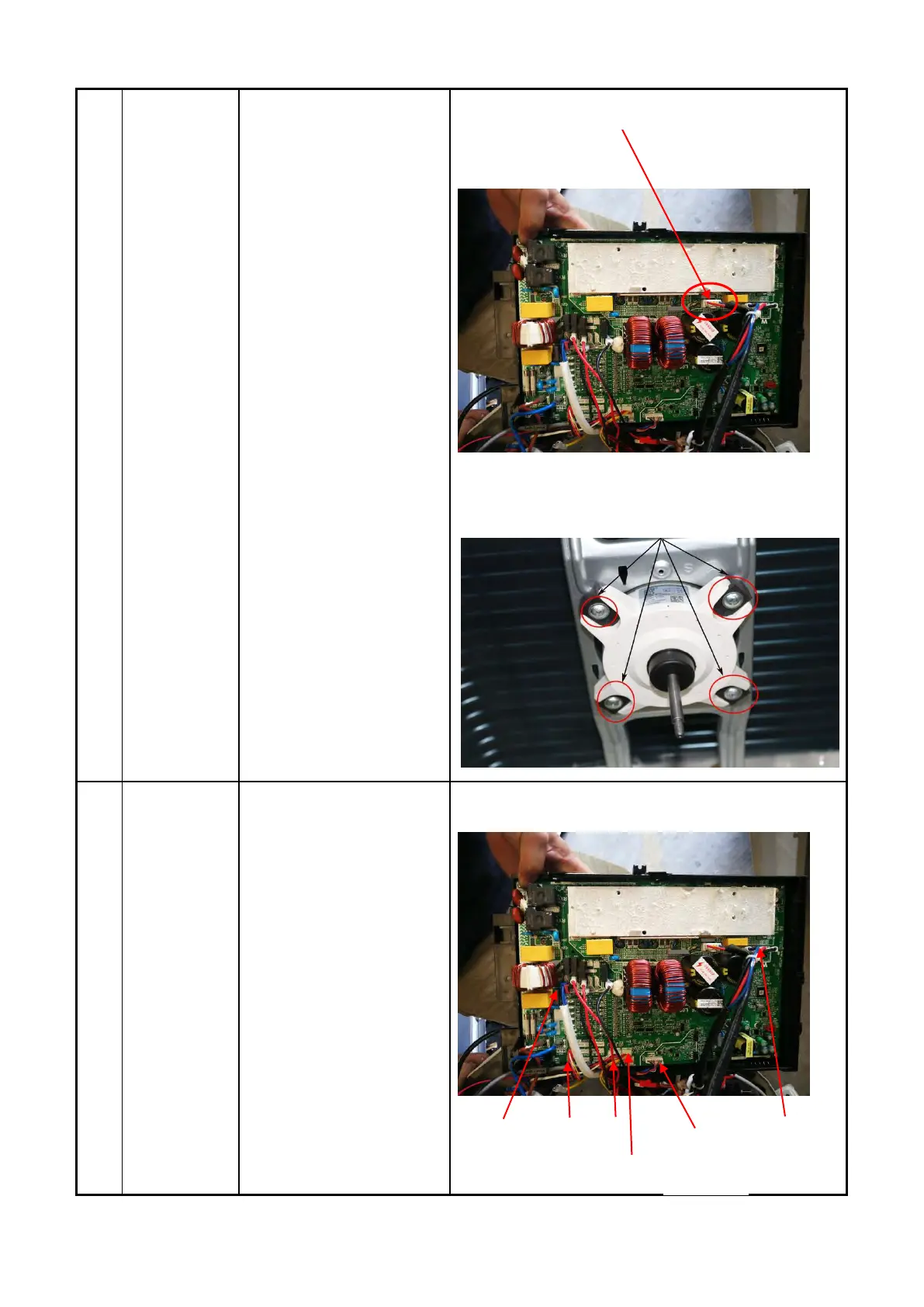

Midea MCD-24HRFN1-M(C) - Page 230

320
5) Disconnect the
connector of fan motor
from the electronic control
board.
6) Remove the four fixing
screws of the fan motor,
then remove the motor.
3
Electrical
parts
How to remove the
electrical parts.
1) After finish work of
item 1 and item 2, remove
the connector for the
compressor
2) Pull out the
connectors from the
electronic control
board.
○
1
4-way valve
⑥
○
5
U V W
EEV
T3T4T5
pressure
switch
Connect to
key board
CN1
