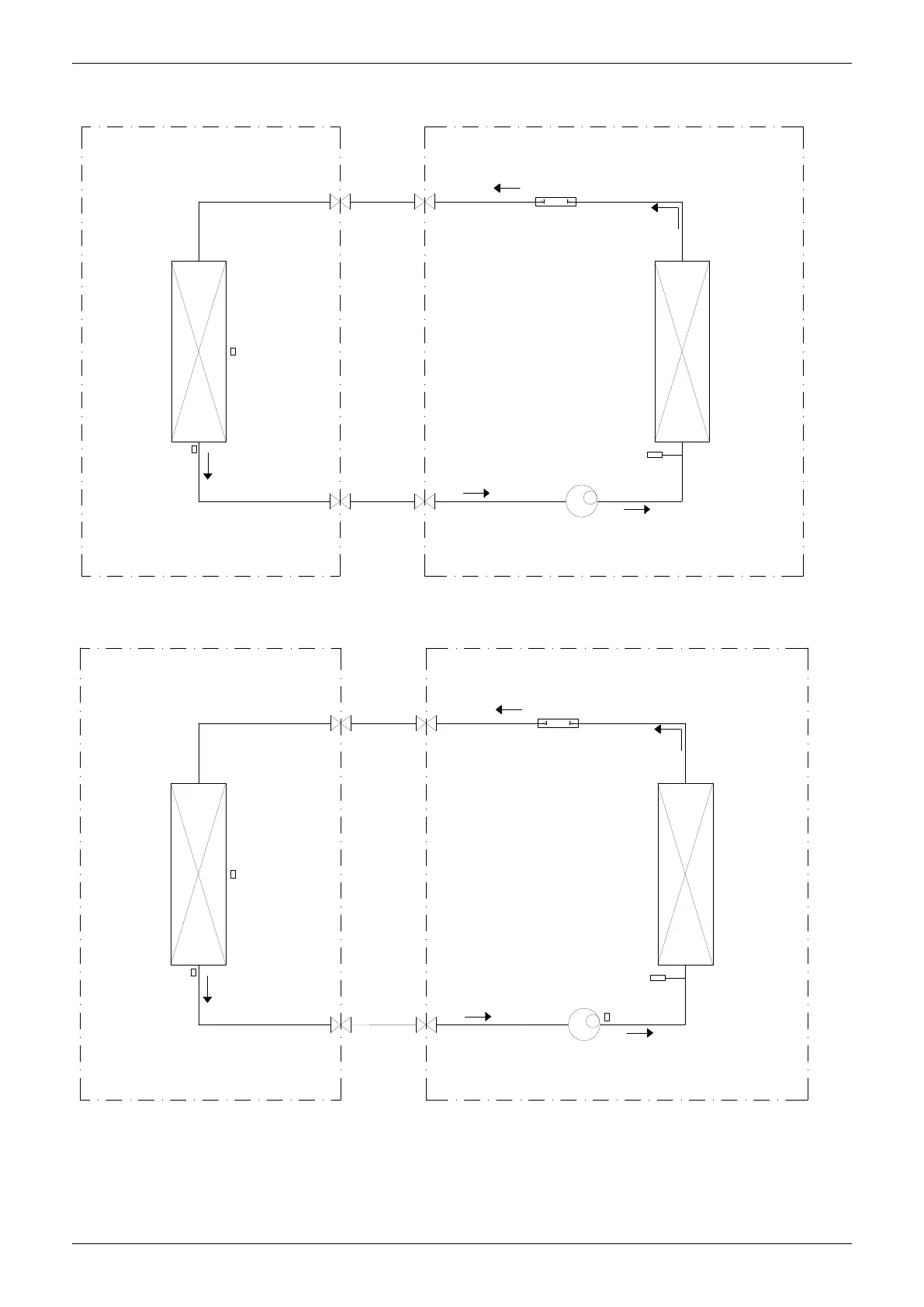

Piping Diagrams
Outdoor Units 175
MOD30U-36CN1-R, MOD30U-48CN1-RB4
INDOOR OUTDOOR
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
High pressure
switch
Throttle orifice
MOD32U-36CN1-QB6
INDOOR OUTDOOR
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
High pressure
switch
Throttle orifice
T5 Discharge
temp. sensor
