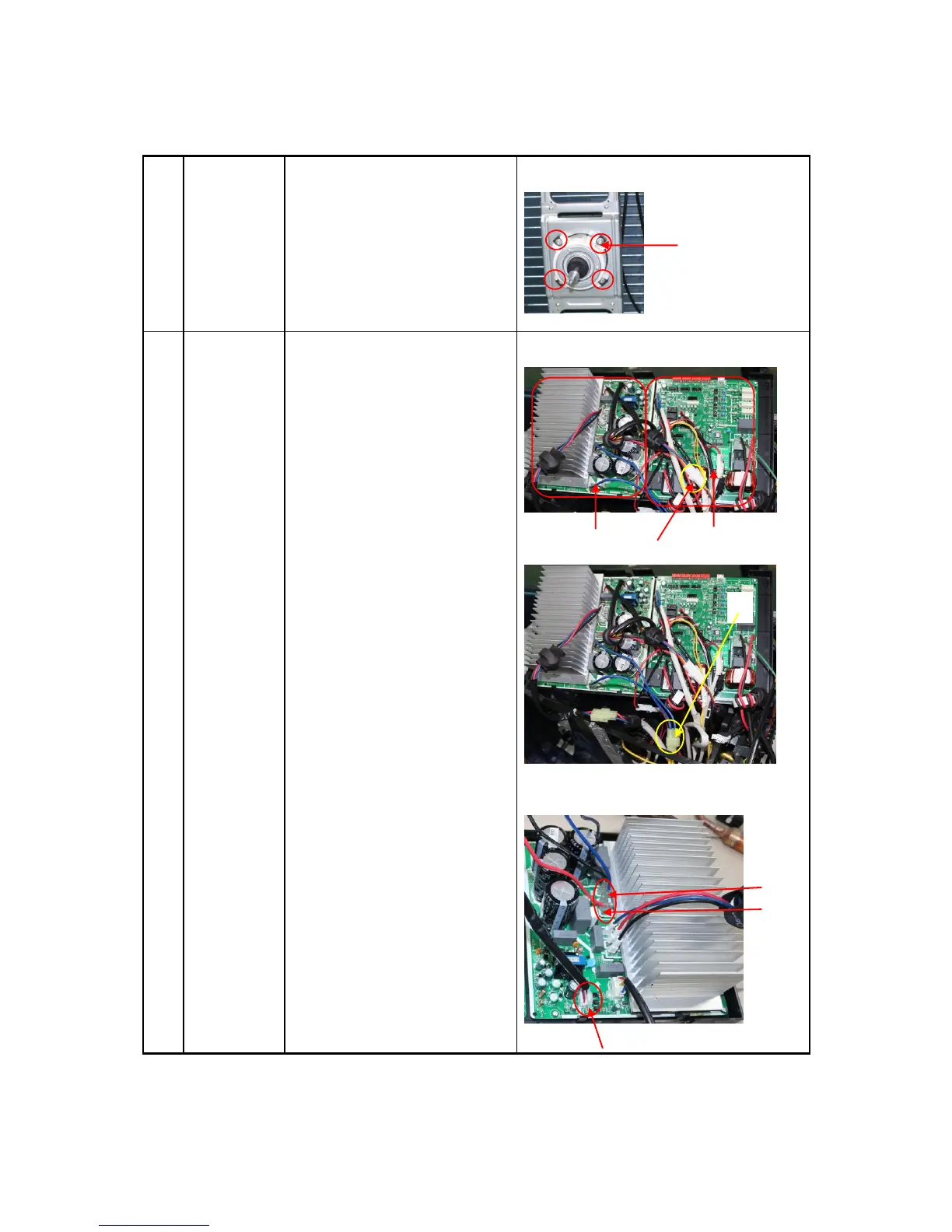

6) Remove the fan motor
after unfastening four fixing
screws.
3
Electrical
parts
How to remove the electrical
parts.
1) Perform work of item 1,2.
2) Unfasten the connector
of the reactor.
3) Unfasten the connector
of the compressor.
4) Unfasten the connector of
the PFC inductor.
5) Disconnect following 3
pieces of connection wires and
connectors between driver
board and PCB.
CN55-CN7(7p,white)
CN54-CN6(red)
CN53-CN5(black)
6) Remove the fixing screws,
then move the driver board.
7) Disconnect the
connectors and wires
Driver board
PCB board
To Next Page
