65

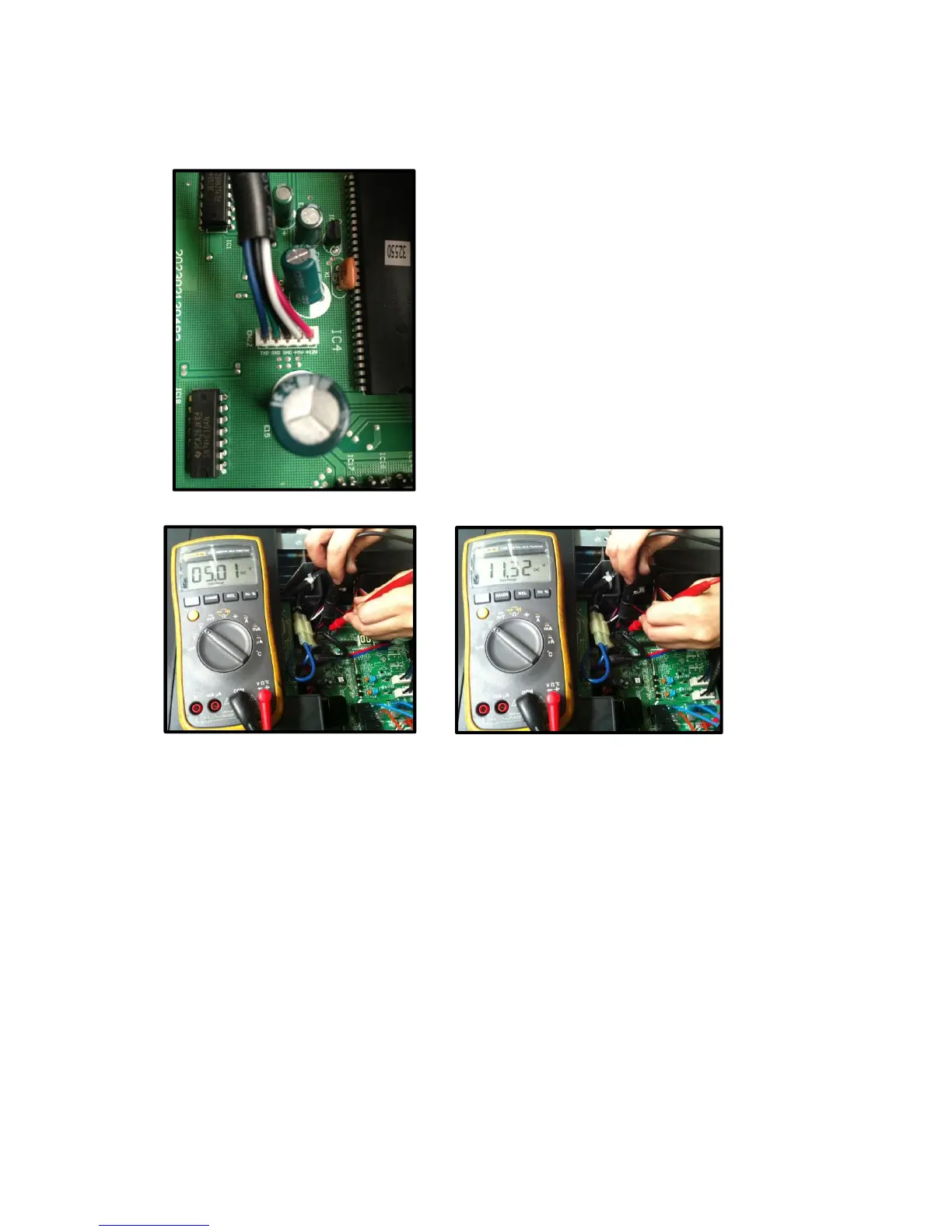

Remark:
Use a multimeter to
test the DC
voltage between black p
in and
white pin of signal w
ire The normal
value should be around
5V.
Use a multimeter to
test the DC
voltage between black p
in and red
pin of signal wire. The no
rmal
value
should be around 12
V.
64
66
