08
EN
sleeve pipe
stopper
screw

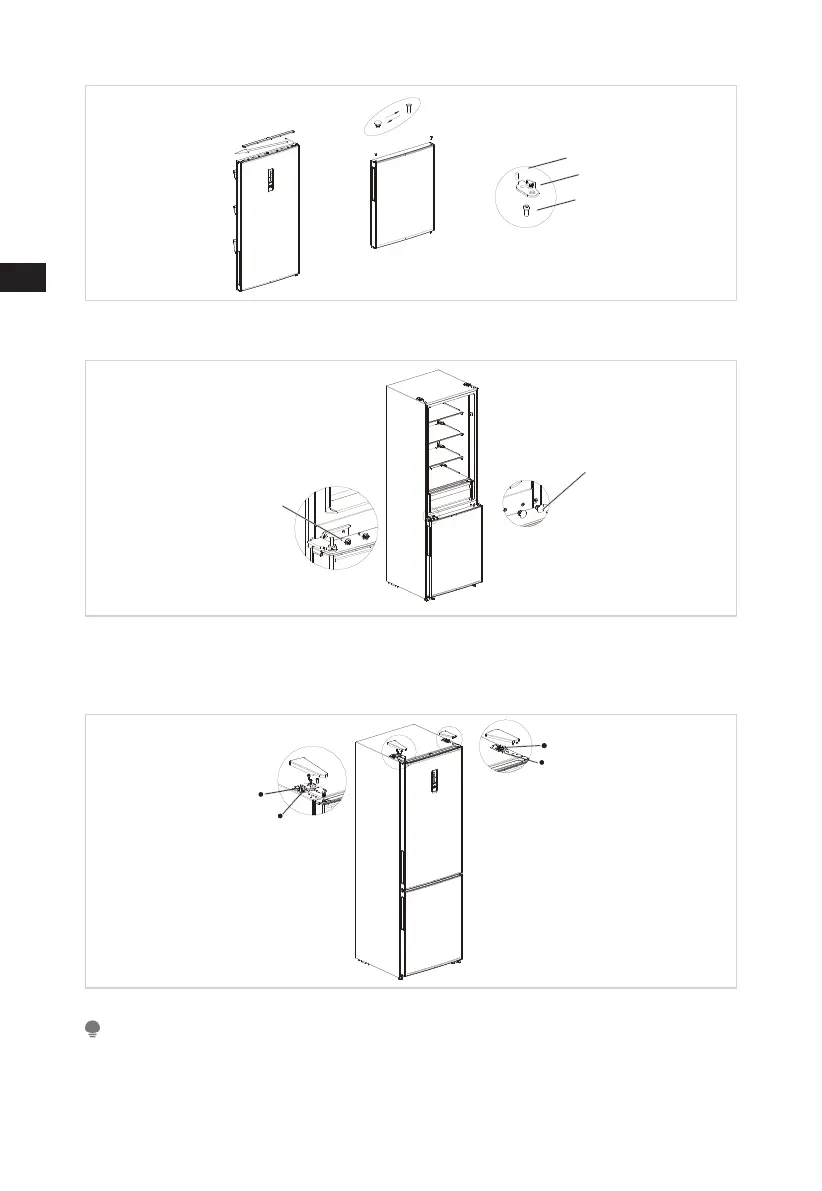

6. Put the freezer door on bottom hinge , install the middle hinge, the screws and
the screw hole caps.
hole cap
screw
middle hinge
7. Place the door body for the refrigerator compartment on the middle hinge,
then install the upper hinge to the other side of the cabinet,finally connect the
terminals 1, 2 for the signal wires at the side of the upper hinge and terminals 3,
4 on the other side and cover the hinge cover and hole cover.
4
2
3
1
ATTENTION
The picture above is only for reference. The actual conī“guration will depend on the physical
product or statement by the distributor.
