61
Hang the air-in grill to the panel, then connect
the lead terminator of the swing motor and that
of the control box with corresponding
terminators on the body respectively.
Note: The panel shall be installed after the
wiring connected.

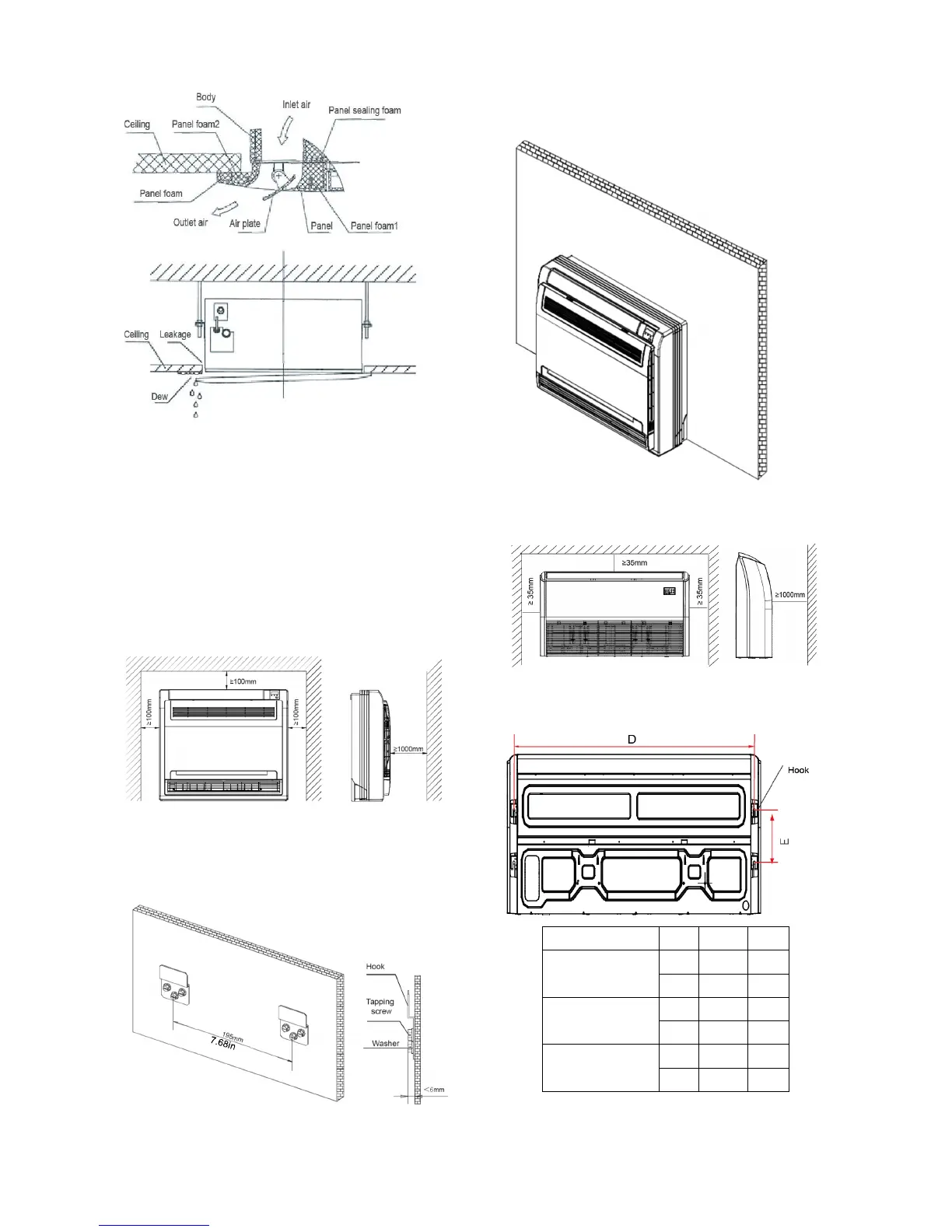

12.2.3 Console indoor unit installation
12.2.3.1 Service space for indoor unit
12.2.3.2 Install the main body
Fix the hook with tapping screw onto the
wall
Hang the indoor unit on the hook.
(The bottom of body can touch with floor or
suspended, but the body must install vertically.)
14.2.4 Ceiling-floor unit installation
12.2.4.1 Service space for indoor unit
12.2.4.2 Bolt pitch
① Ceiling installation
Capacity (Btu/h)
