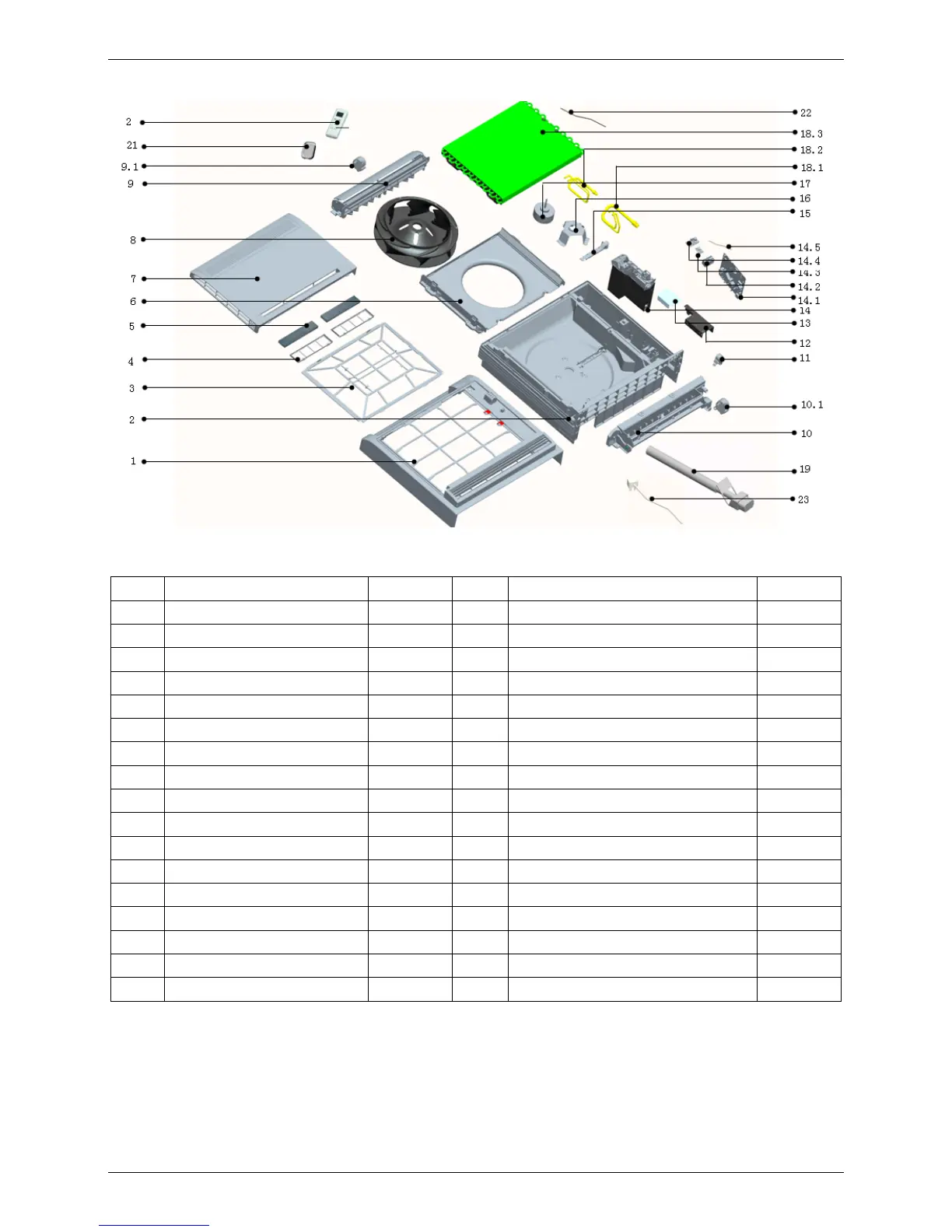

MCAC-UTSM-2009-03 Exploded View
Indoor Units 15
9.2 MFA-12HRN1-Q
No. Part Name Quantity No. Part Name Quantity
1 Panel frame ass'y 1 14.2 Wire joint 1
2 Base ass'y 1 14.3 Dial-up board ass'y 1
3 Filter 1 14.4 Display board ass'y 1
4 Air fresh net 2 14.5 Room temp. sensor ass'y 1
5 Formaldehyde-killer 2 15 Wire clamp 1
6 Air guide ring ass'y 1 16 Motor bracket 1
7 Panel ass'y 1 17 Dc motor 1
8 Centrifugal fan 1 18 Evaporator ass'y 1
9 Air outlet frame ass'y 1 18.1 Output pipe ass'y 1
9.1 Stepper motor 1 18.2 Input pipe ass'y 1
10 Drainage pan ass'y 1 18.3 Evaporator 1
10.1 Stepper motor 1 19 Connection tube ass'y 1
11 Pipe clamp 1 20 Remote controller 1
12 E-Part box cover 1 21 Remote controller holder ass'y 1
13 Insulation washer 1 22 Temp. sensor ass'y 1
14 E-part box ass'y 1 23 Power supply wire 1
14.1 Main control board ass'y 1
