Installation of outdoor unit MCAC-UTSM-2009-03
40 Installation
3. Installation of outdoor unit

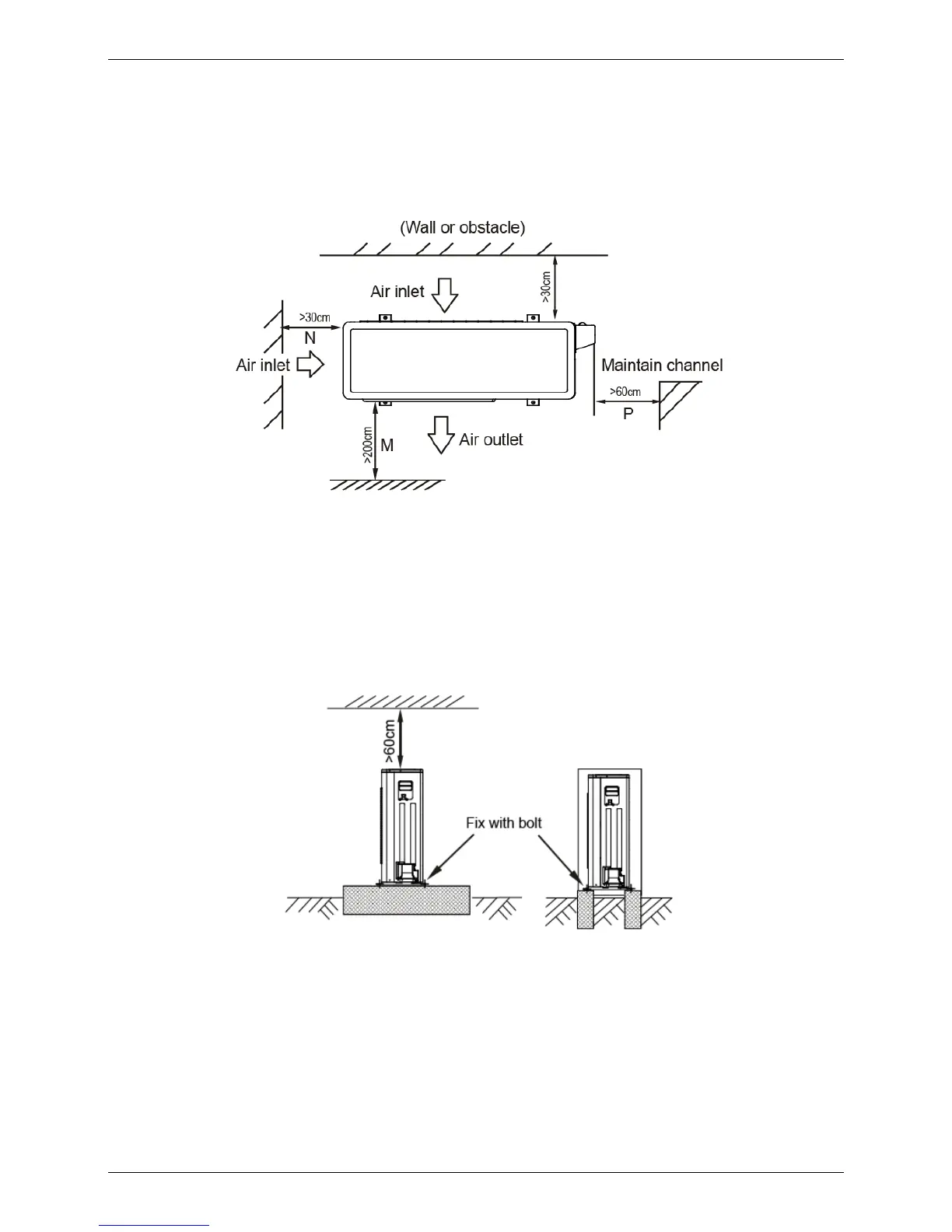

3.1 Necessary space for Installation and Maintenance
If possible, please remove the obstacles nearby to prevent the performance from being impeded by too little
of air circulation. The minimum distance between the outdoor unit and obstacles described in the installation
chart doesn’t mean that the same is applicable to the situation of an airtight room. Leave open two of the
three directions (M, N, P).
3.2 Moving and Installing
1. Since the gravity center of the unit is not at its physical center, so please be careful when lifting it with a sling.
2. Never hold the inlet of the outdoor unit to prevent it from deforming.
3. Do not touch the fan with hands or other objects.
4. Do not lean it more than 45°, and do not lay it sidelong.
5. Make concrete foundation according to the specifications of the outdoor units.
6. Fasten the feet of this unit with bolts firmly to prevent it from collapsing in case of earthquake or strong wind.
