Installation of the Connecting Pipe MCAC-UTSM-2009-03
42 Installation

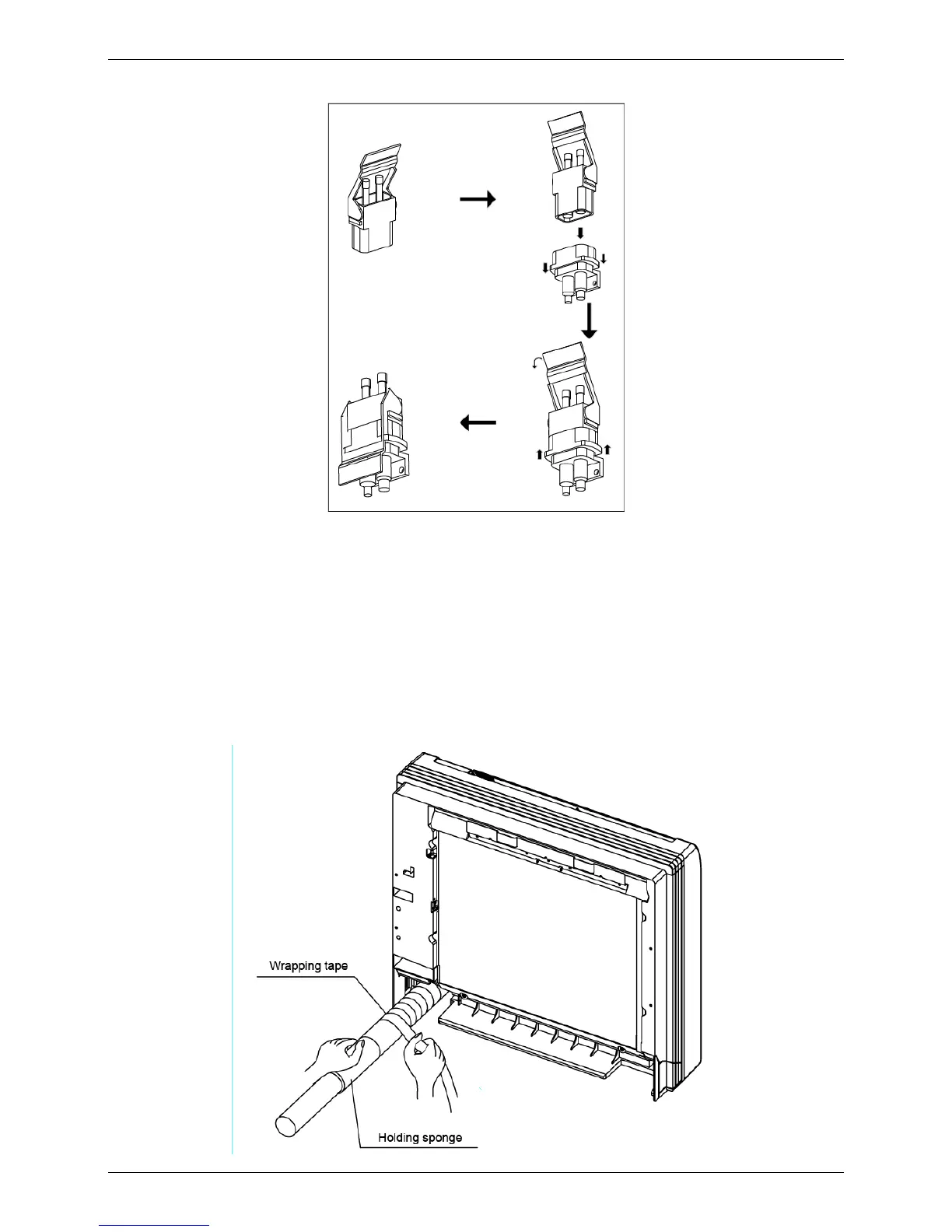

To connect the couplings:
Step 1: Ensure that the handle on the male coupling is in a reclined position away from the mating male
coupling.
Step 2: Retract the “Release Sleeve” on female coupling, insert the male coupling located on the indoor unit
into the female coupling.
Step 3:
Release the “Release Sleeve” to the lock the male coupling into places.
Step 4: Fold the male coupling handle towards the female coupling half and push until the handle seals
behind the “Release Sleeve” and flat against the entire coupling assembly.
Frost proof processing
For prevent that the connect pipe produce frost to drip, you need to inhibit the holding sponge on the connect
pipe of inside door, and then bundle it by wrapping tape.
