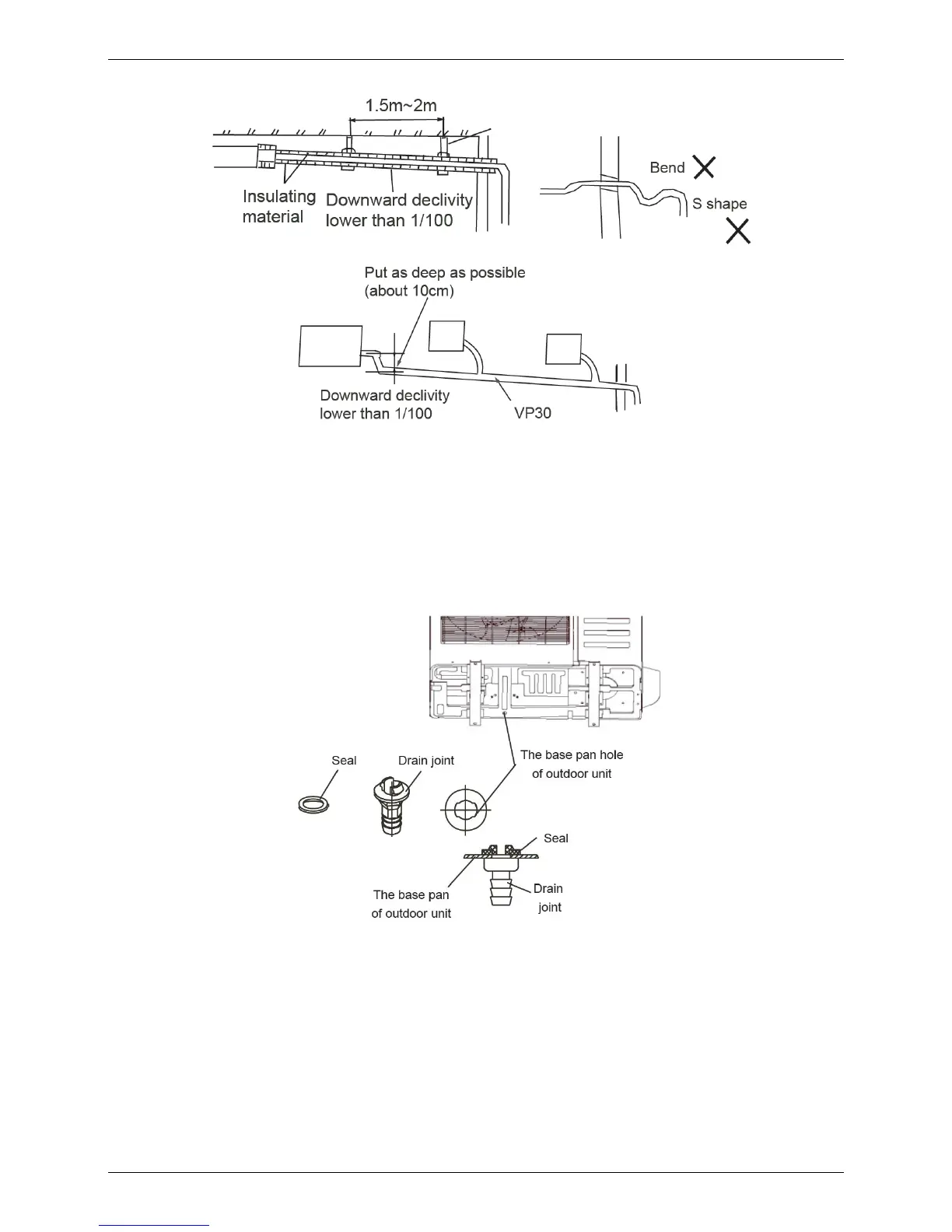

MCAC-UTSM-2009-03 Connect the Drain Pipe
Installation 49
5.2 Drainage test
1) Check whether the drainpipe is unhindered.
2) New built house should have this test done before paving the ceiling.
5.3 Install the drain joint of the outdoor unit
Fit the seal into the drain elbow, then insert the drain elbow into the base pan hole of outdoor unit, rotate
90°to securely assemble them. Connect the drain elbow with an extension drain hose (Locally purchased),
in case of the condensate draining off the outdoor unit during the heating mode. (Refer to below chart)
To Next Page
