MCAC-UTSM-2009-03 Wireless remote controller R51D/E
Control 57
1. Wireless remote controller R51D/E
1.1 Remote Controller Specifications
Model
Environment
Reaching Distance
Signal Range
Lowest Voltage of CPU
Emitting Signal
Rated Voltage
R51D/E R51D/CE，
-5 C 60 C
。。
8m (when using 3.0 voltage,
it Gets 11m)
3.0V(Alkaline dry batteries LR03 2)
2.0V
×

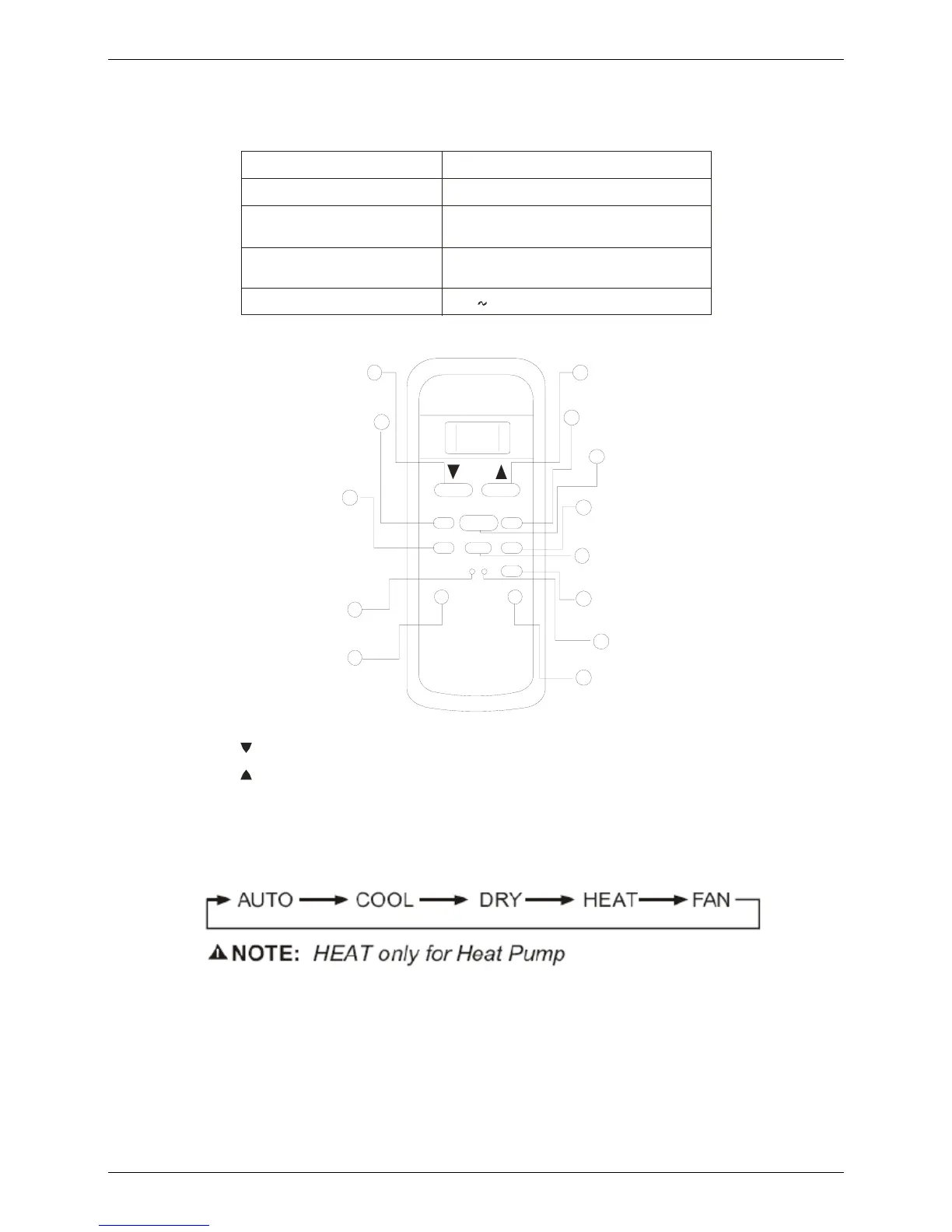

1.2 Introduction of Function Buttons on the Remote Controller
1
2
4
6
7
3
8
9
10
11
12
13
SE T T EM PERATURE C )（
O
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
TE M P .
MODE
ON/ OF F
FAN S PEE D
SWING
ECONOMIC
TI MER ON
RE S E T
LOCK
TI MER OFF
AIR DIRECTION
POWE RFU L
5
1. TEMP Button
: Press the button to decrease the indoor temperature setting.
2. TEMP Button
: Press the button to increase the indoor temperature setting.
3. ON/OFF Button: Push this button to start the unit operation. Push the button again to stop the unit
operation.
4. MODE Select Button: Each time you push the button, a mode is selected in a sequence that goes from
AUTO、COOL、DRY、HEAT and FAN, as the following figure indicates:
5. SWING Button: Push this button, the louver would swing up and down automatically. Push again to stop it.
6. RESET Button: When the RESET button is pushed, all of the current settings are cancelled and the
control will return to the initial settings.(Use a φ1mm little round stick to push the button )
7. AIR DIRECTION Button: Push this button, the louver can be fixed at a desired angle. The louver swing
(upward or downward) to a certain angle for each press. When the louvers swing at an angle which
would affect the cooling and heating efficiency of the air conditioner, it would automatically change the
swing direction (upward or downward).
8. FAN SPEED Button: This button is used for setting Fan Speed in the sequence that goes from AUTO,
LOW , MED to HIGH, then back to Auto.
