Midea MFM-24ARN1-Q

DM16-01.01.25en Floor Standing MFM
31 Service manual
6.5 Wiring

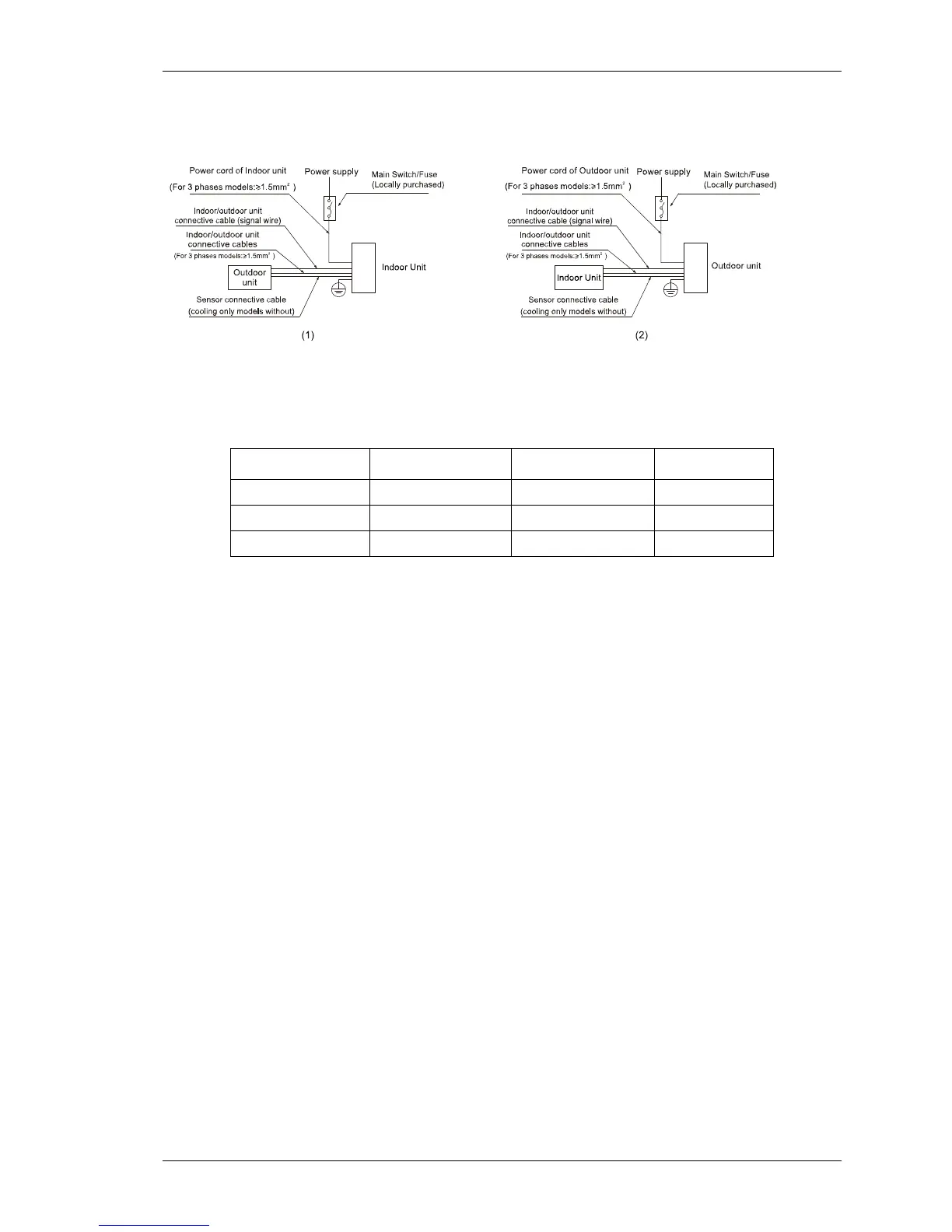

Please refer to the Wiring Diagram.
Note: The power supply of the air conditioner is different according to the models. Please refer to
the WIRING DIAGRAM pasted on the indoor and outdoor units before wire connection.
Model Power supply
Input Rated Amp
(Switch/Fuse)
Power Cord Size
<24000Btu/h 220-240V~ 50Hz 32/25A
≥2.5mm
2
≥24000Btu/h
220-240V~ 50Hz 63/50A
≥6mm
2
≥24000Btu/h
380-420V~ 50Hz 16/16A
≥1.5mm
2
