Midea MGA-D10/N1 User Manual

MCAC-UTSM-2014-01 R410A Mini Split Chiller 50Hz
59

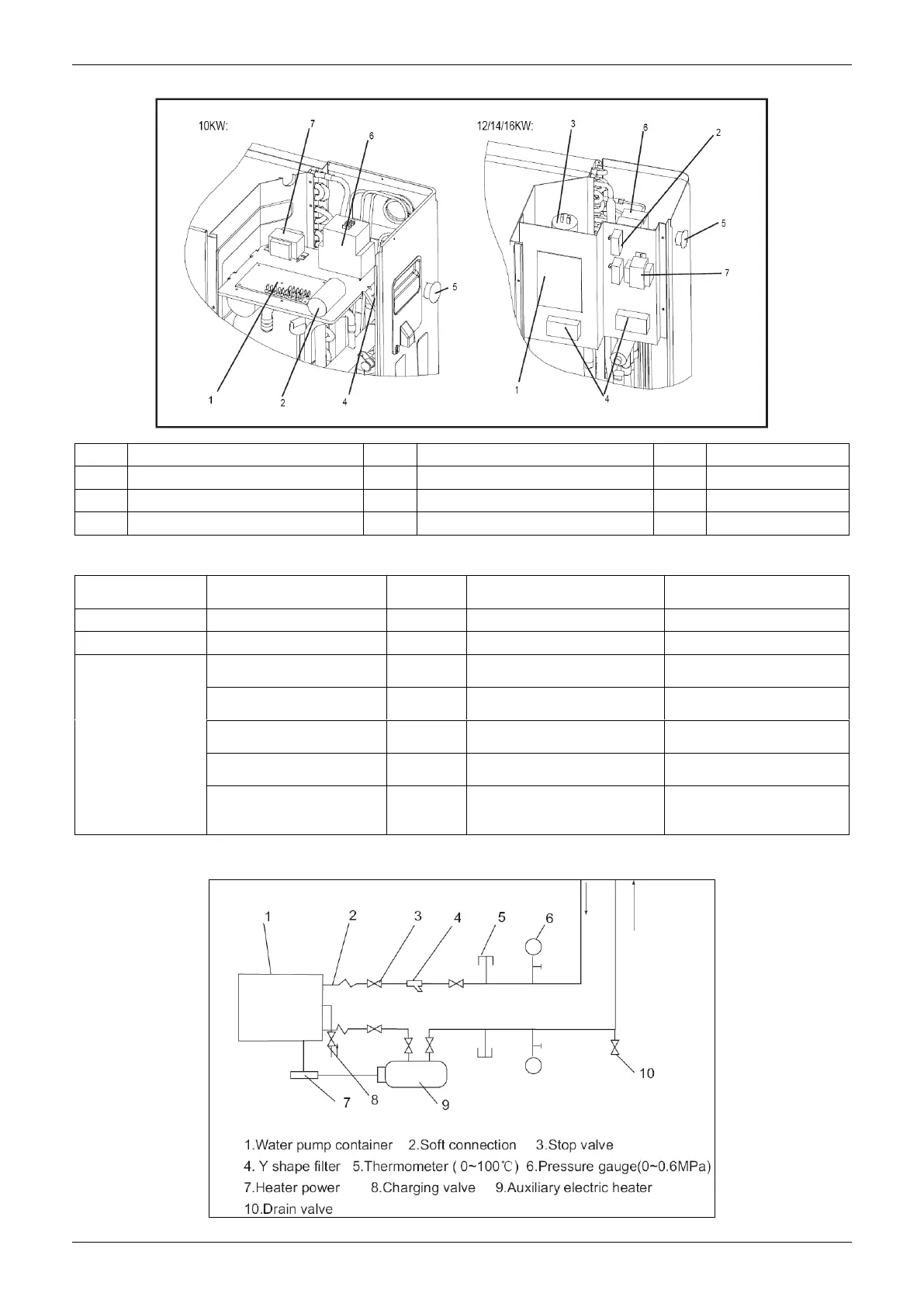

Electrical panel layout
No
Name
No
Name
No
Name
1
Power control board
4
Terminal board
7
Transformer
2
Fan capacitor
5
Emergency switch
3
Compressor capacitor
6
Compressor contactor
18.6.3 Outdoor unit wiring specifications
Model
Name
Quantity
Specifications
(for reference)
Notes
(purchased by customers)
10.5/12kW
Overall power core
1
RVV-300/500 3×6.0mm
2
For outdoor unit
14/16kW
Overall power core
1
RVV-450/750 5×4.0 mm
2
For outdoor unit
10.5/12/14/16kW
Water-flow controlling wire
1
AWG24(7-core shielding wire)
Between outdoor unit and
water pump box
Temp. Sensor signal wire
(shielding wire)
1
RVV-300/500 3×1.0 mm
2
Between outdoor unit and
auxiliary heater
Water pump power core
1
RVV-300/500 3×1.0 mm
2
Between outdoor unit and
water pump box
Auxiliary heater controlling
wire
1
RVV-300/500 3×1.0 mm
2
Between outdoor unit and
auxiliary heater
Controlling wire for
Central & wired controller
1
RVVP-300/300 2×0.5 mm
2
(2-core shielding wire)
Between outdoor unit and
central& wired controller
shorter than 120m.
18.7 Auxiliary electric heater installation
