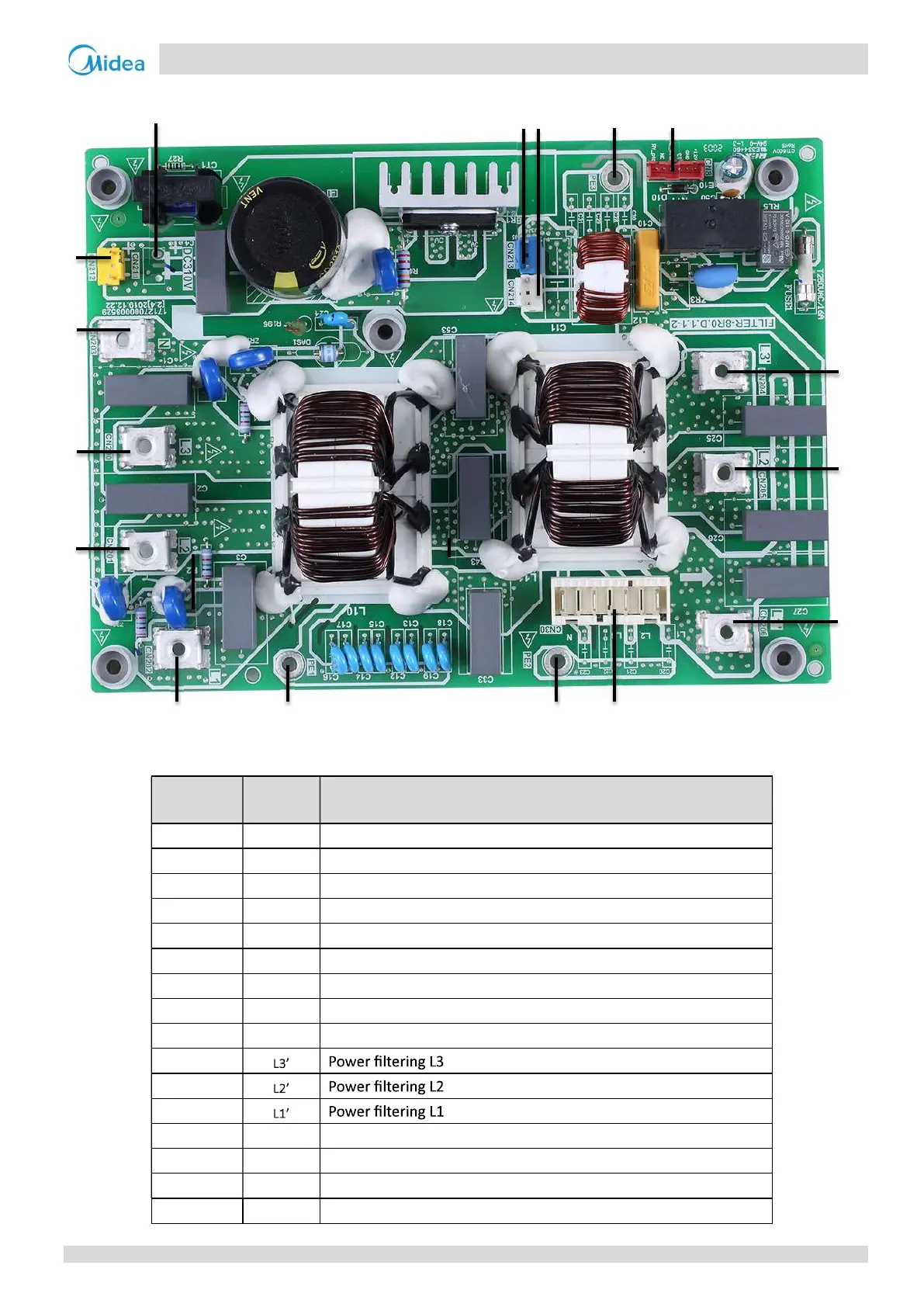

Figure 4-2.8: MHA-V12(14,16)W/D2RN8-B outdoor unit filter board
5 6 7 8 9
4
3
2
1
10
11
12
16 15 14 13
Table 4-2.8: MHA-V12(14,16)W/D2RN8-B outdoor unit filter board
Label in
Figure 4-2.8
Code Content
1 CN201
Power supply L2
2 CN200
Power supply L3
3 CN203
Power supply N
4 CN212
Power supply port of 310VDC
5 CN211
Reserved
6 CN213
Port for FAN Reactor
7 CN214
Power supply port for Inverter module
8 PE3
Ground wire
9 CN8
Port for communication with main PCB for filter board
10
11
12
13 CN30
Power supply port for main control board
14 PE2
Port for ground wire
15 PE1
Port for ground wire
16 L1
Power supply L1
