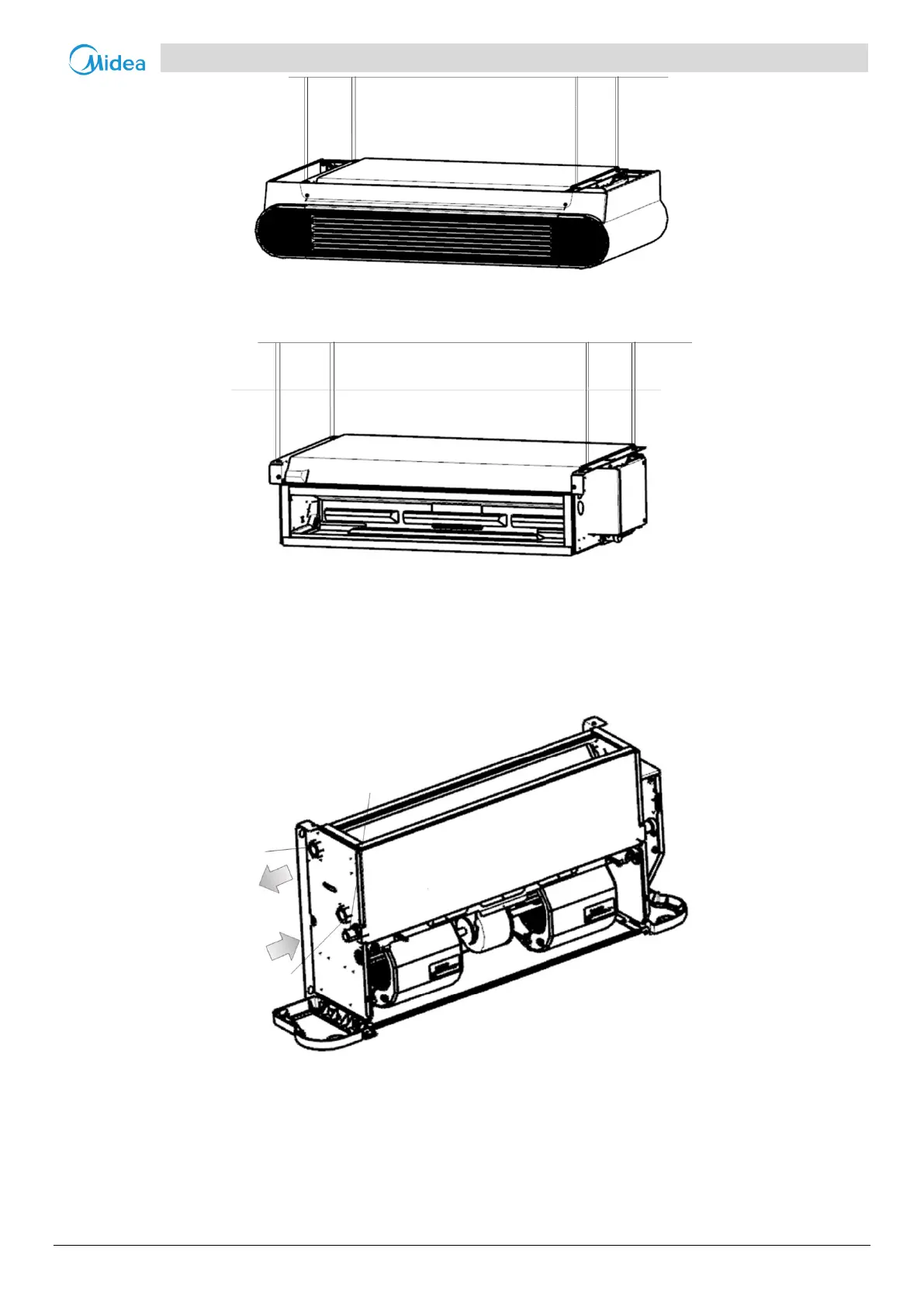

Figure 10.4.4 Diagram of ceiling exposed
Figure 10.4.5 Diagram of ceiling concealed
Liquid pipe connections
Connect the unit to the water system using inlet and outlet connectors.
Drainage
Water
outlet
Water
inlet
Figure 10.4.6
All water system coils are equipped with discharge and drain valves.
Use a screwdriver or wrench to open and close the valve.
When installation is complete,
① Remove air inside pipes.
