Midea MKT3H-1400G70

High static pressure ducted FCU MCAC-KTSM-2012-03

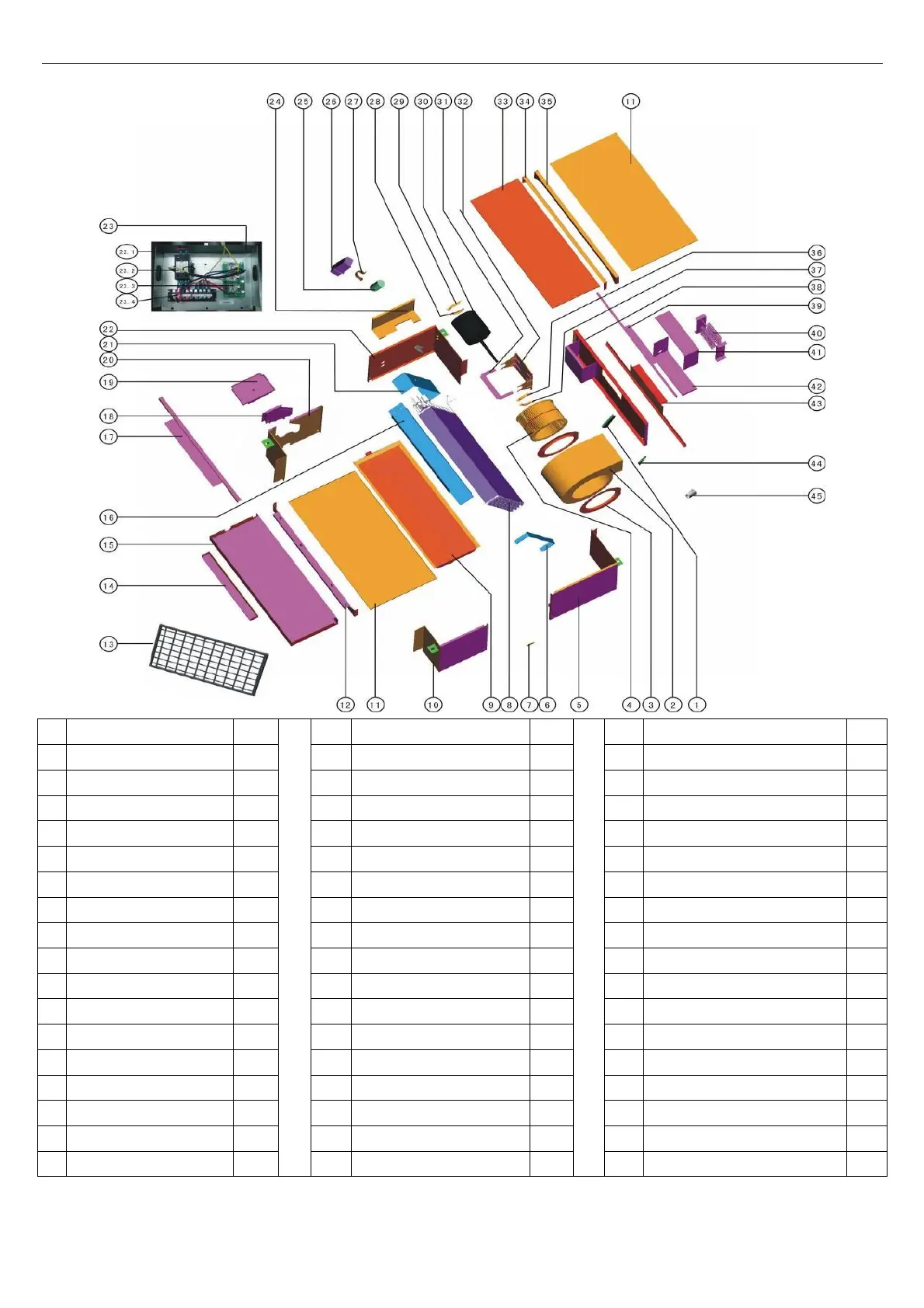

24 Exploded View
MKT3H-800EG70 MKT3H-1000EG70 MKT3H-1200EG70 MKT3H-1400EG70
No.
Part Name
Qua.
No.
Part Name
Qua.
No.
Part Name
Qua.
1
Right fixing board
1
18
Cover plate ass'y
1
31
Board
1
2
Volute shell ass'y
1
19
Drainage pan
1
32
Motor bracket
1
3
Wind ring ass'y
2
20
Clapboard ass'y
1
33
Rear cover ass'y
1
4
Centrifugal fan ass'y
1
21
Evaporator right clapboard
1
34
Beam ass'y
1
5
Side board ass'y
1
22
Front right clapboard ass'y
1
35
Beam ass'y
1
6
Evaporator left clapboard
1
23
E-part box ass'y
1
36
Motor up cover
1
7
Stator
2
23.1
E-part box
1
37
Motor below cover
1
8
Evaporator ass'y
1
23.2
Contactor
1
38
Base
1
9
Drainage pan ass'y
1
23.3
Relay control board ass'y
1
39
Former upside board ass'y
1
10
Clapboard ass'y
1
23.4
Wire joint, 9p
1
40
Electric heater ass'y
1
11
Front cover ass'y
2
24
E-Part box cover
1
41
Board II
1
12
Beam ass'y
1
25
Capacitor box
1
42
Board I
1
13
Air filter
1
26
Pipe performing
1
43
Former underside board ass'y
1
14
Back Underside board
1
27
Capacitor
1
44
Left fixing board
1
15
Base ass'y
1
28
Motor below cover
1
45
Water pipe
1
16
Baffle
1
29
Motor up cover
1
17
Back upside board ass'y
1
30
Fan motor
1
