Midea MKT3H-1400G70

MCAC-KTSM-2012-03 High static pressure ducted FCU

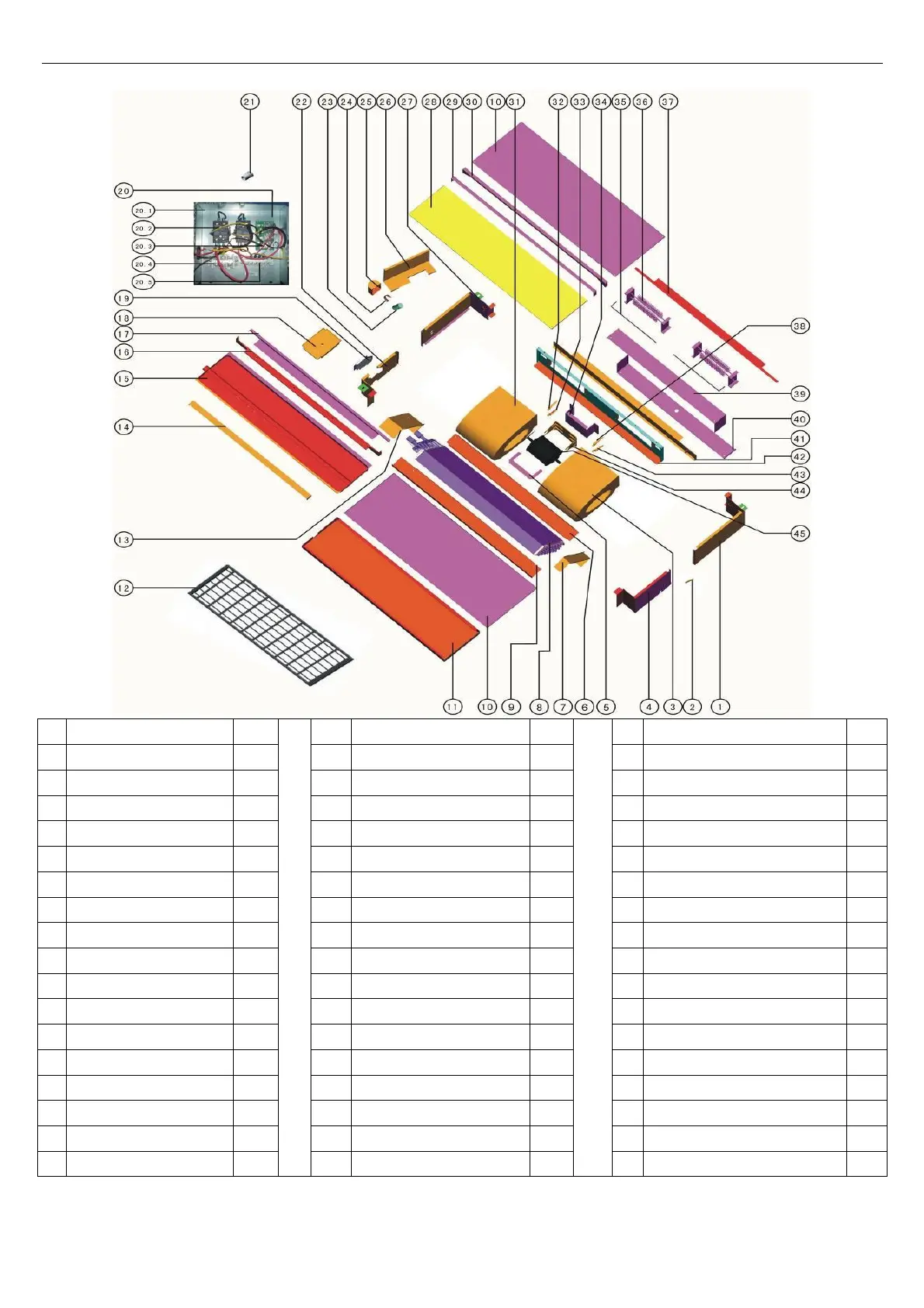

Exploded View 25
MKT3H-1600EG100 MKT3H-1800EG100 MKT3H-2200EG100
No.
Part Name
Qua.
No.
Part Name
Qua.
No.
Part Name
Qua.
1
Side board ass'y
1
18
Drainage pan
1
30
Beam ass'y
1
2
Stator
2
19
Cover plate ass'y
1
31
Right wind wheel ass'y
1
3
Fan ass'y
1
20
E-part box ass'y
1
32
Motor up cover
1
4
Clapboard ass'y
1
20.1
E-part box
1
33
Motor below cover
1
5
Board
1
20.2
Contactor
2
34
Fixing board ass'y
1
6
Below baffle
1
20.3
Relay control board ass'y
1
35
Baffle bar
2
7
Left fixation board
1
20.4
Wire joint, 3p
1
36
Electric heater ass'y
2
8
Evaporator ass'y
1
20.5
Wire joint
1
37
Former upside board ass'y
1
9
Protection board
1
21
Water pipe
1
38
Motor up cover
1
10
Front cover ass'y
2
22
Clapboard ass'y
1
39
Board I
1
11
Base ass'y
1
23
Compressor capacitor
1
40
Board
2
12
Air filter
1
24
Capacitor clamp
1
41
Former underside board ass'y
1
13
Right fixing board
1
25
Compressor capacitor box
1
42
Fixing board ass'y
1
14
Back Underside board
1
26
E-Part box cover
1
43
Motor below cover
1
15
Drainage pan ass'y
1
27
Front right clapboard ass'y
1
44
Motor bracket
1
16
Beam ass'y
1
28
Rear cover ass'y
1
45
Motor
1
17
Back upside board ass'y
1
29
Beam ass'y
1
