Midea MKT3H-2200EG100

MCAC-KTSM-2012-03 High static pressure ducted FCU

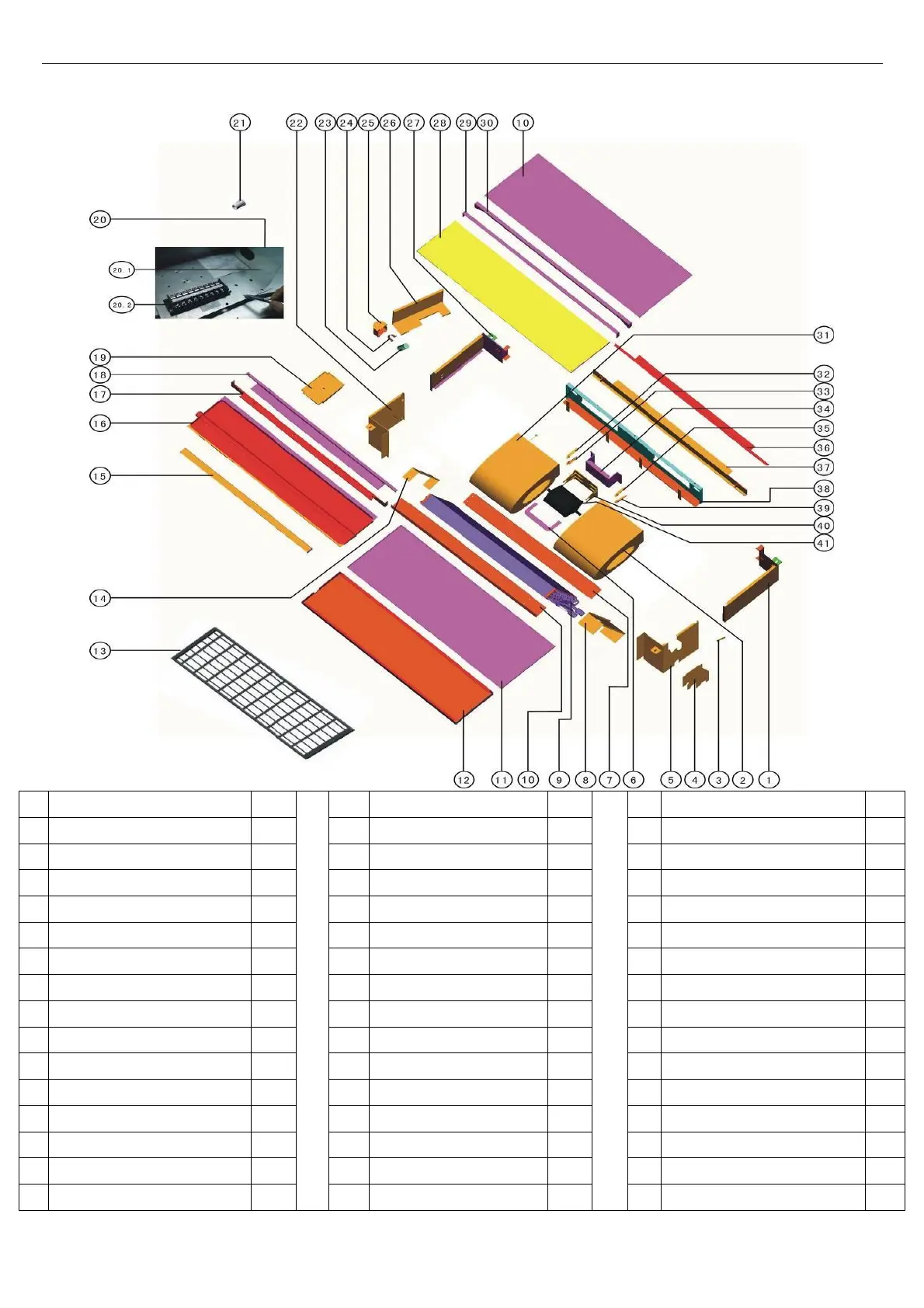

Exploded View 23
MKT3H-1600G100 MKT3H-1800G100 MKT3H-2200G100
No.
Part Name
Qua.
No.
Part Name
Qua.
No.
Part Name
Qua.
1
Side board ass'y
1
16
Drainage pan ass'y
1
29
Beam ass'y
1
2
Fan ass'y
1
17
Beam ass'y
1
30
Beam ass'y
1
3
Stator
2
18
Back upside board ass'y
1
31
Right wind wheel ass'y
1
4
Cover plate ass'y
1
19
Drainage pan
1
32
Motor up cover
1
5
Clapboard ass'y
1
20
E-part box ass'y
1
33
Motor below cover
1
6
Board
1
20.1
E-part box
1
34
Fixing board ass'y
1
7
Below baffle
1
20.2
Wire joint, 9p
1
35
Motor up cover
1
8
Evaporator left clapboard ass'y
1
21
Water pipe
1
36
Former upside board ass'y
1
9
Evaporator ass'y
1
22
Clapboard ass'y
1
37
Former underside board ass'y
1
10
Evaporator up clapboard ass'y
1
23
Capacitor
1
38
Fixing board ass'y
1
11
Front cover ass'y
2
24
Capacitor clamp
1
39
Motor below cover
1
12
Base ass'y
1
25
Capacitor box
1
40
Motor bracket
1
13
Air filter
1
26
E-Part box cover
1
41
Motor
1
14
Evaporator right clapboard ass'y
1
27
Front right clapboard ass'y
1
15
Back Underside board
1
28
Rear cover ass'y
1
