Midea MKT3H-2200G100

High static pressure ducted FCU MCAC-KTSM-2012-
03
28 Installation

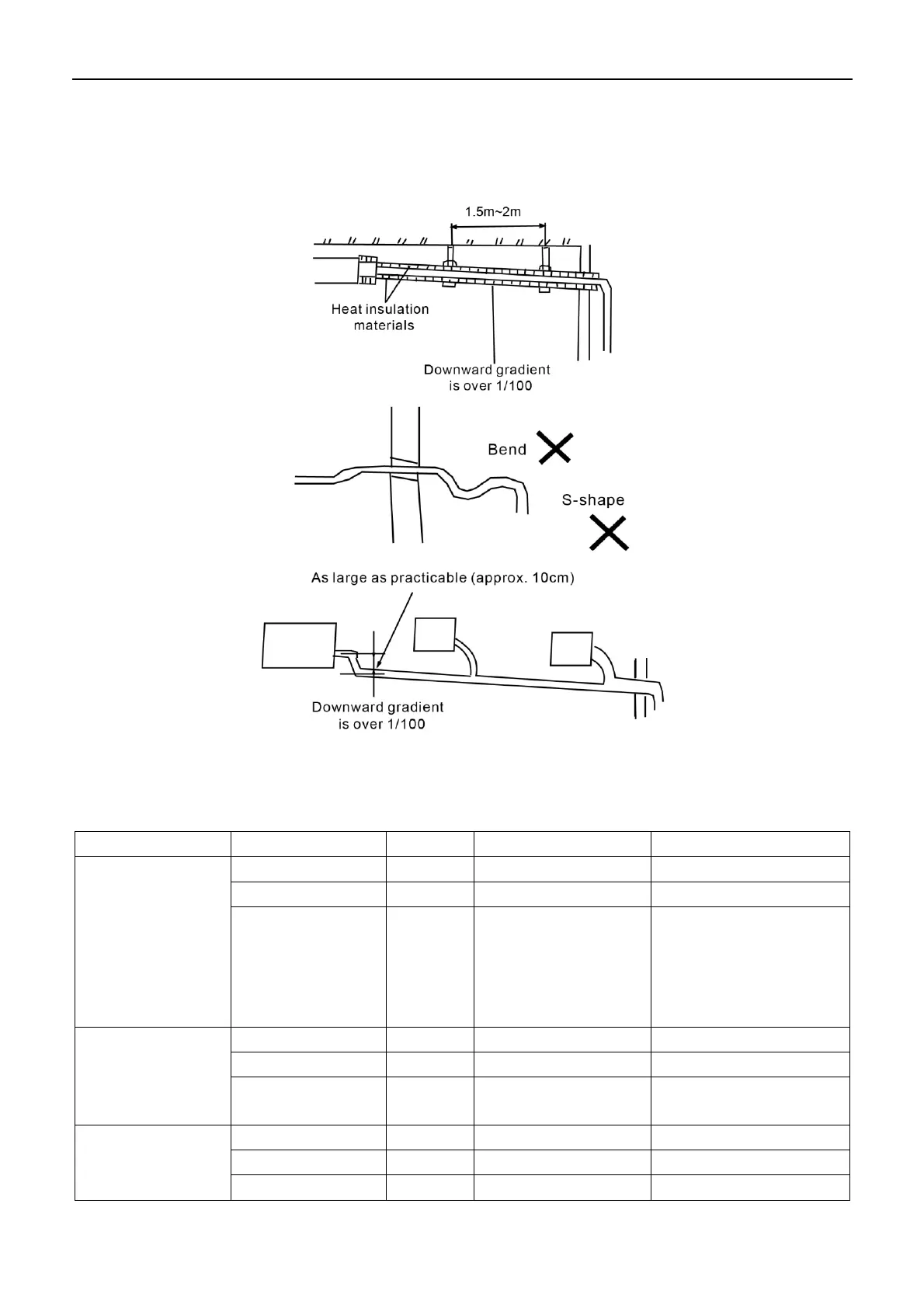

 Same as the joint of the indoor unit. Be careful not to apply force at the pipe side of the indoor unit.
 The downward gradient of the drain pipe should be higher than (1/100), without bend in the middle.
 The widthwise stretch of the drain pipe should be with1in 2110m. If the drain pipe is long, set up brackets
to support it.
 The centralized pipes should be distributed against the figure shown on the right side.
 Drain test
 Before the test, ensure that the drain pipes are smooth and the adapters are sealed.
 Newly built rooms should undergo the drain test before the ceiling is laid.
12.4 Wiring
Fan coil units model
Name of cable
Cable Qty.
Specification(Optional)
Note
MKT3H-800G70
MKT3H-1000G70
MKT3H-1200G70
MKT3H-1400G70
MKT3H-1600G100
MKT3H-1800G100
MKT3H-2200G100
Main power cord
1
RVV-300/500 3×2.5 mm
2
Owner purchase it optionally
Controller power cord
1
RVV-300/500 3×2.0 mm
2
Owner purchase it optionally
Control wire
1
RVV-300/500 5×1.5 mm
2
Owner purchase it optionally
MKT3H-800EG70
MKT3H-1000EG70
MKT3H-1200EG70
MKT3H-1400EG70
Main power cord
1
RVV-300/500 3×3.3 mm
2
Owner purchase it optionally
Controller power cord
1
RVV-300/500 3×2.0 mm
2
Owner purchase it optionally
Control wire
1
RVV-300/500 5×1.5 mm
2
Owner purchase it optionally
MKT3H-1600EG100
MKT3H-1800EG100
MKT3H-2200EG100
Main power cord
1
RVV-300/500 3×6.0 mm
2
Owner purchase it optionally
Controller power cord
1
RVV-300/500 3×2.0 mm
2
Owner purchase it optionally
Control wire
1
RVV-300/500 5×1.5 mm
2
Owner purchase it optionally
