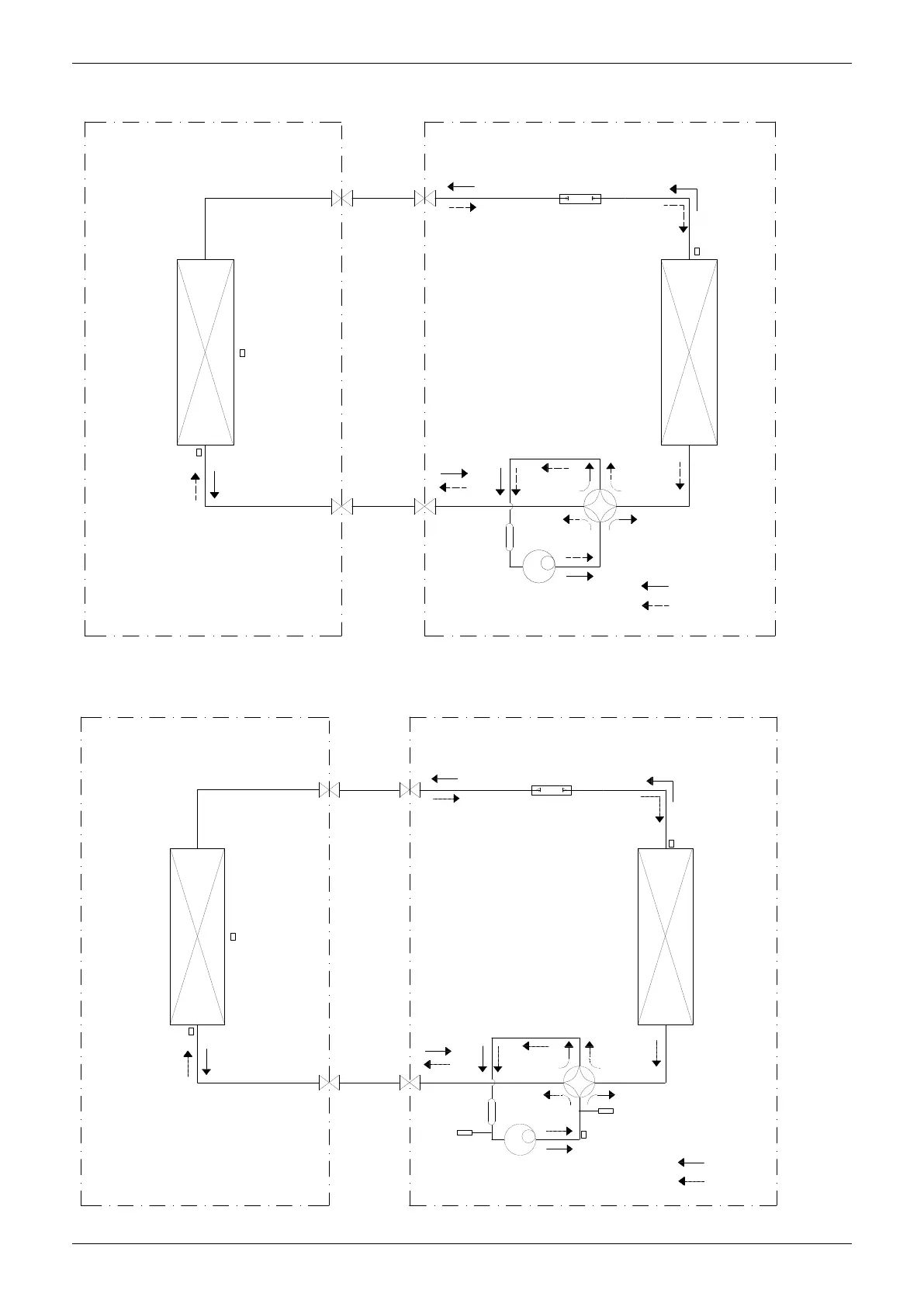

Piping Diagrams
Outdoor Units 173
MOCA30U-24HN1-Q, MOD30U-30HN1-Q
Throttle orifice
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
ACCUMULATOR
INDOOR OUTDOOR
MOD31U-36HN1-Q, MOD31U-36HN1-R, MOU-48HN1-R(22023016000194) , MOE30U-60HN1-R
Throttle orifice
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
Compressor
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
Accumulator
T5 Discharge
temp. sensor
High pressure
switch
Low pressure
switch
INDOOR OUTDOOR
T3 Condenser
temp. sensor
