Midea MODU-48CN1-R User Manual

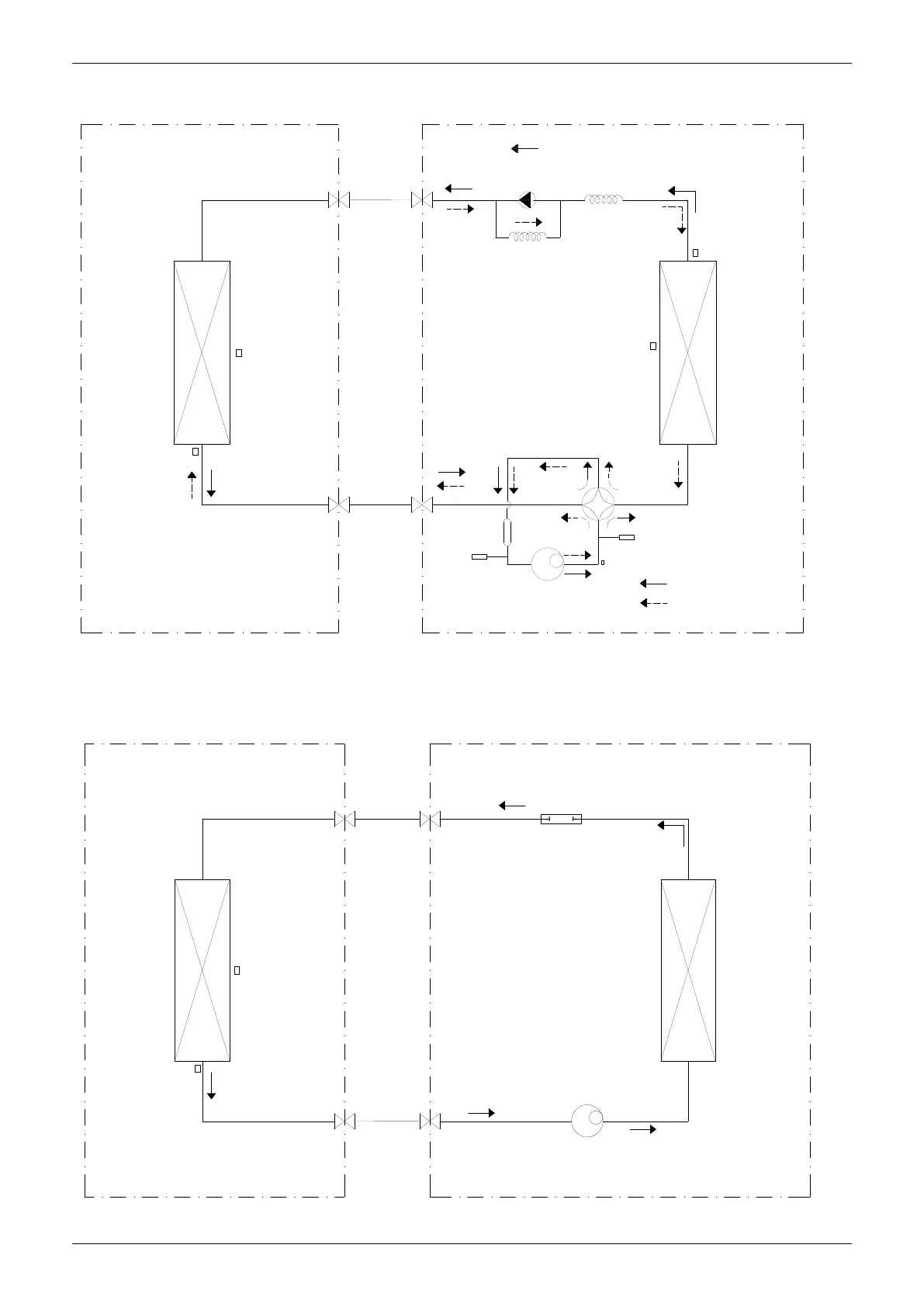

Piping Diagrams
174 Outdoor Units
MOU-48HN1-R(22023016000109), MOUA-60HN1-R
ACCUMULATOR
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
Compressor
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
T5 Discharge temp. sensor
High pressure switch
T4 Ambient
temp. sensor
Low pressure
switch
INDOOR OUTDOOR
CHECK VALVE
(Heating Model only)
CAPILLARY TUBE
MOCA30U-24CN1-QB9, MOCA30U-24CN1-Q, MOD30U-30CN1-Q, MOD30U-36CN1-Q,
MOCA31U-24CN1-QB9, MOD32U-36CN1-RB6
INDOOR OUTDOOR
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
Throttle orifice

Midea MODU-48CN1-R Specifications

General

Brand	Midea
Model	MODU-48CN1-R
Category	Air Conditioner
Language	English
