Installation
Instructions
Hook
Hole Seat
Lower groove
adaptor
Make sure the adaptor
is inserted into the lower
groove of the air outlet.

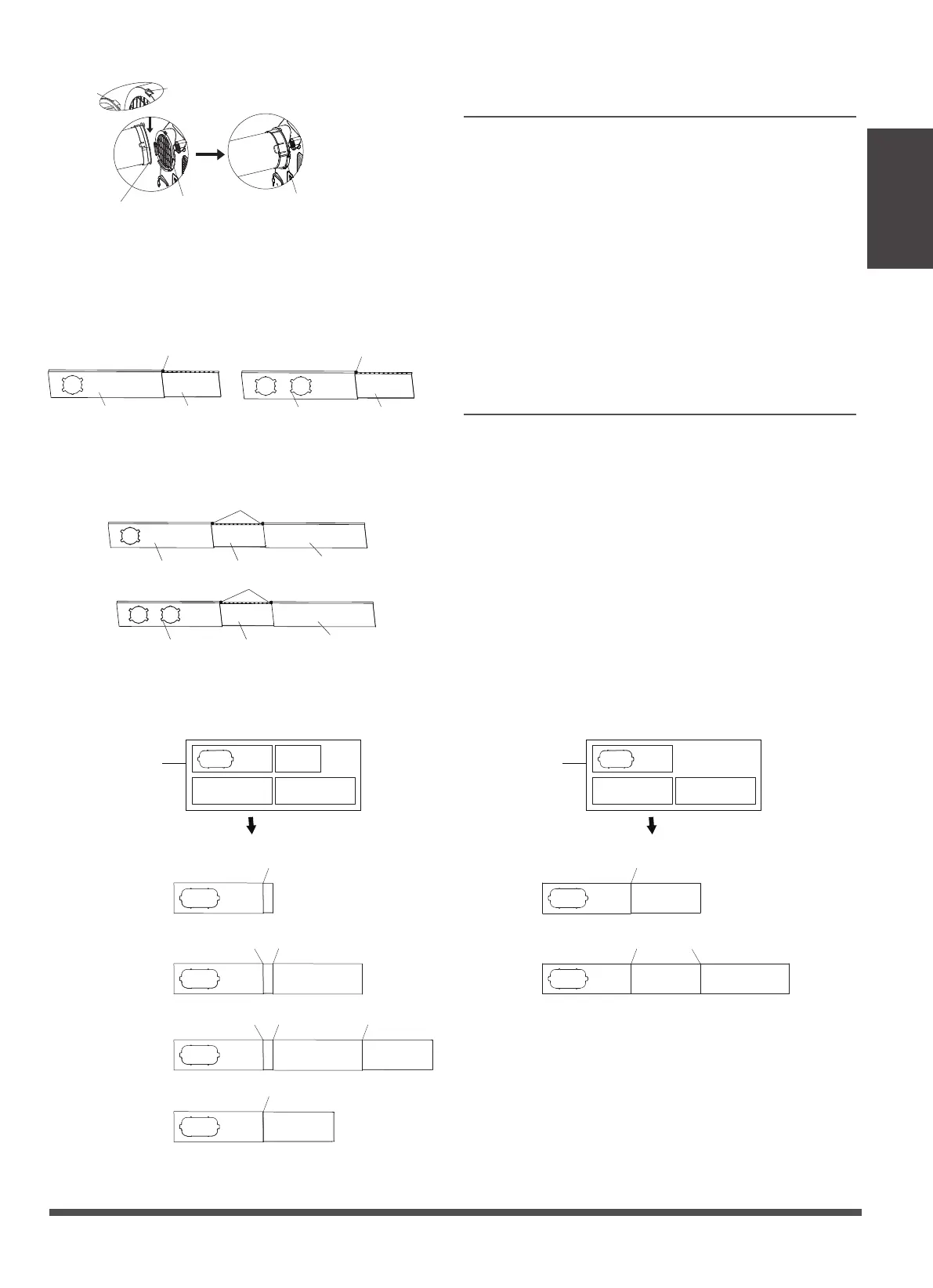

Step Two: Install the Exhaust hose assembly to
the unit
Insert unit adaptor of the Exhaust hose assembly
into the lower groove of the air outlet of the unit
while the hook of the adaptor is aligned with the
hole seat of the air outlet and slide down the
Exhaust hose assembly along the arrow direction
for installation.
Step Three: Preparing the Adjustable Window
Slider
or
or
Window slider A
MODEL A MODEL B
Window slider B
Bolt
Window slider A Window slider B
Bolt
MODEL A
MODEL B
MODEL C MODEL D
1+2：
Window slider A Window slider B
Window slider C
Bolts
Window slider A Window slider B
Window slider C
Bolts
Bolt Bolt
Bolt
1+2+3：
1+2：
1+2+3：
Bolt
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window Sliders
After assembly
Before assembly
Window Sliders
After assembly
Before assembly
1. Choose the window sliders according the size of
your window. Sometimes, it needs to be cut short
to meet the window size, please take extra care to
cut it properly.
2. Use bolts to fasten the window sliders once they
are adjusted to the Proper length.
