20

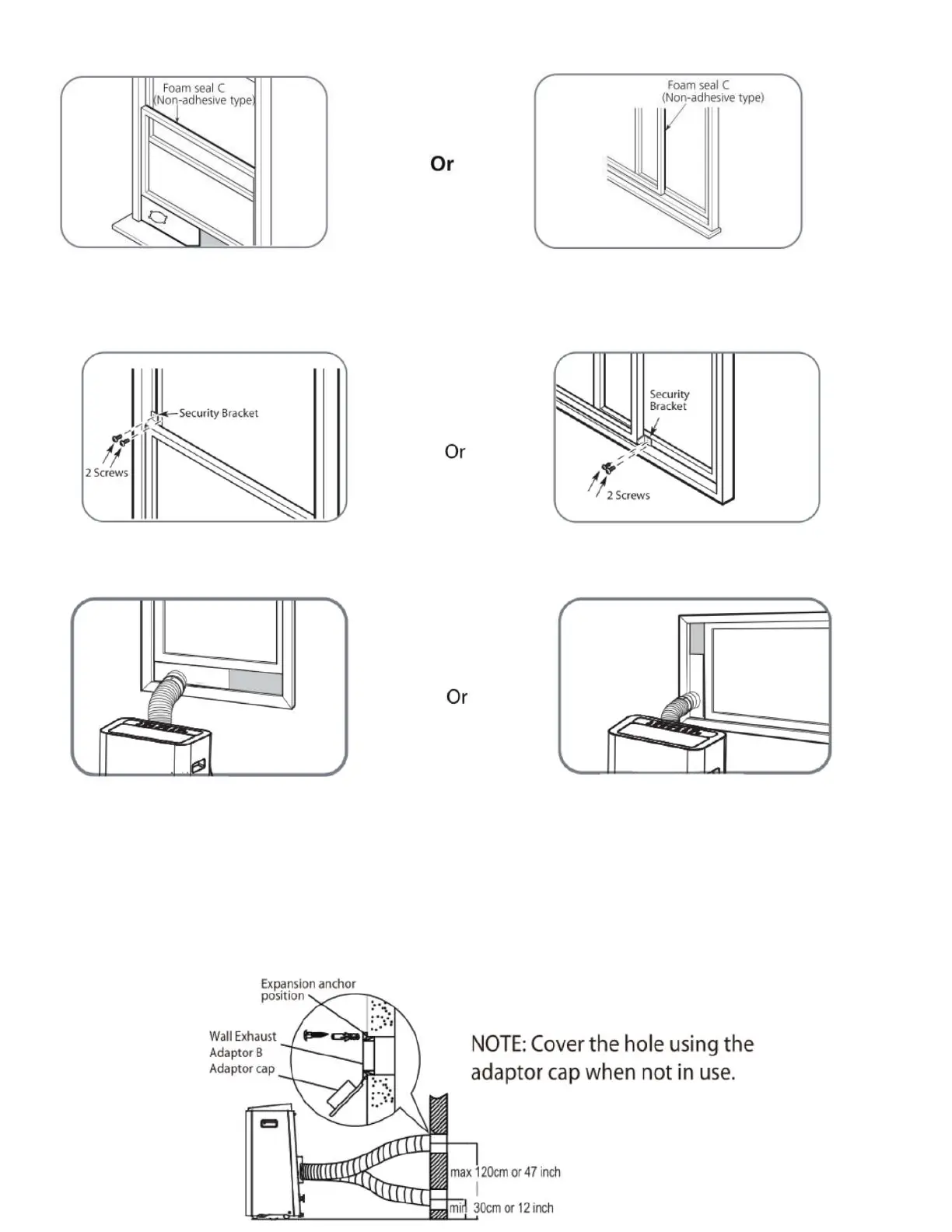

2. Insert the window slider assembly into the window opening.
3. Cut the non-adhesive foam seal C strip to match the width (or height) of the window. Insert the seal
between the glass and the window frame to prevent air and insects from getting into the room
4. If desired, install the security bracket with 2 screws as shown.
5. Insert the window slider adaptor into the hole of the window slider.
Type 2：Wall Installation (Optional)
1. Cut a 125mm (4.9inch) hole into the wall for the Wall Exhaust Adaptor B.
2. Secure the Wall Exhaust Adaptor B to the wall using the four Anchors and Screws provided in the kit.
3. Connect the Exhaust Hose Assembly (with Wall Exhaust Adaptor A) to the Wall Exhaust Adaptor B.
To Next Page
