Midea MRC-24CWN1-M13L User Manual

6
Electrical service access
compapartment panel
Condensate drain
connection 3/4” NPTI
(Trap required)
Left
Condenser coil
Front

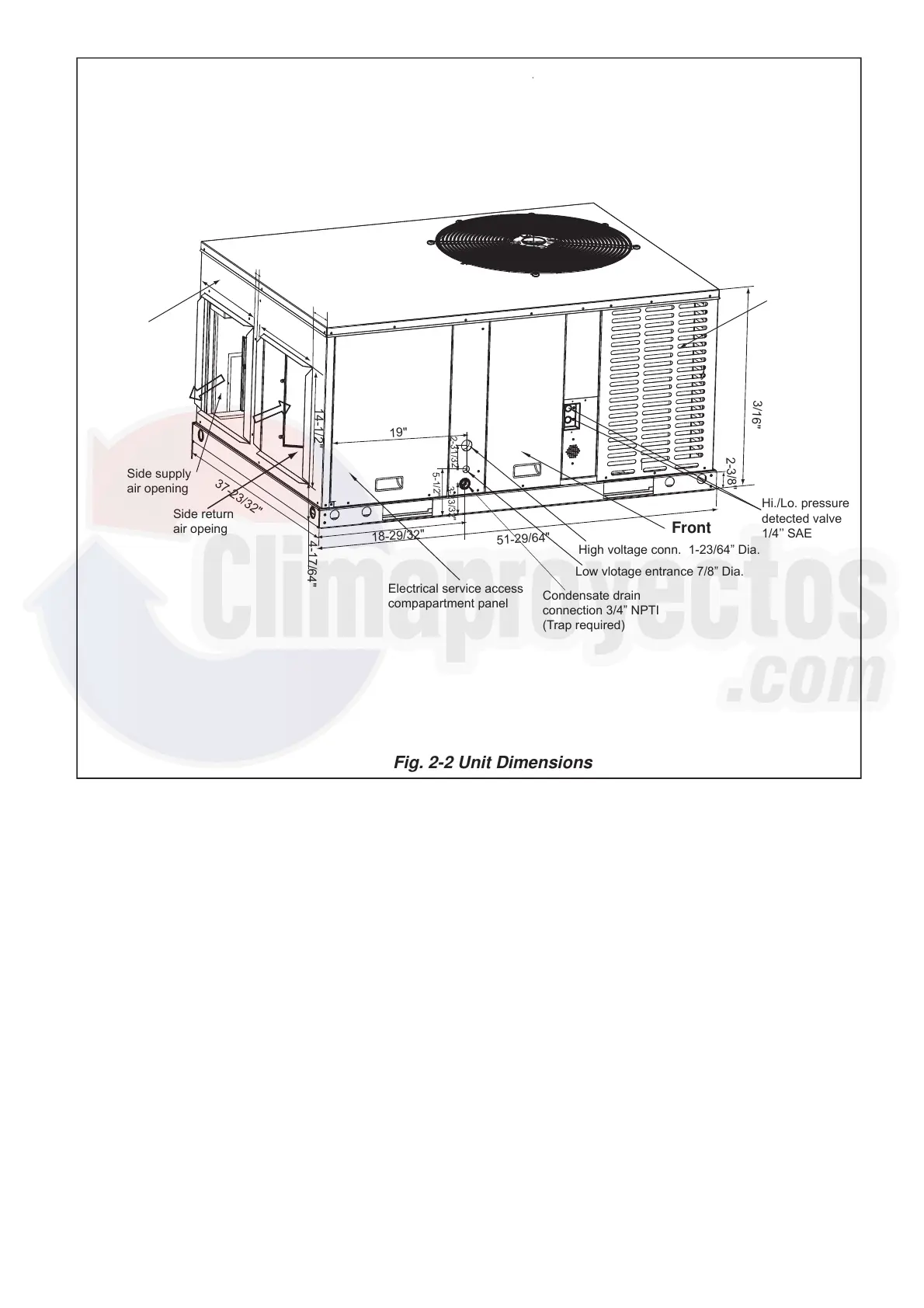

Fig. 2-2 Unit Dimensions
Low vlotage entrance 7/8” Dia.
High voltage conn. 1-23/64” Dia.
Unit size：
024, 036
* The above figure for reference purpose only.
Hi./Lo. pressure
detected valve
1/4’’ SAE
Side supply
air opening
Side return
air opeing
14-1/2"
3-55/64"
1
4-1/2"
2-31/32"
14-1/2"
4-17/64"
51-29/64"
24-13/16"
2-3/8"
3-23/32"
5-1/2"
2-31/32"
18-29/32"
37-23/32"
19"

Midea MRC-24CWN1-M13L Specifications

General

Brand	Midea
Model	MRC-24CWN1-M13L
Category	Air Conditioner
Language	English
