6. Using an 8 mm socket wrench, remove the three hinge screws.
7. Using a Phillips screwdriver, remove the ground screw (left-hand door
hinge only).
a
b
c

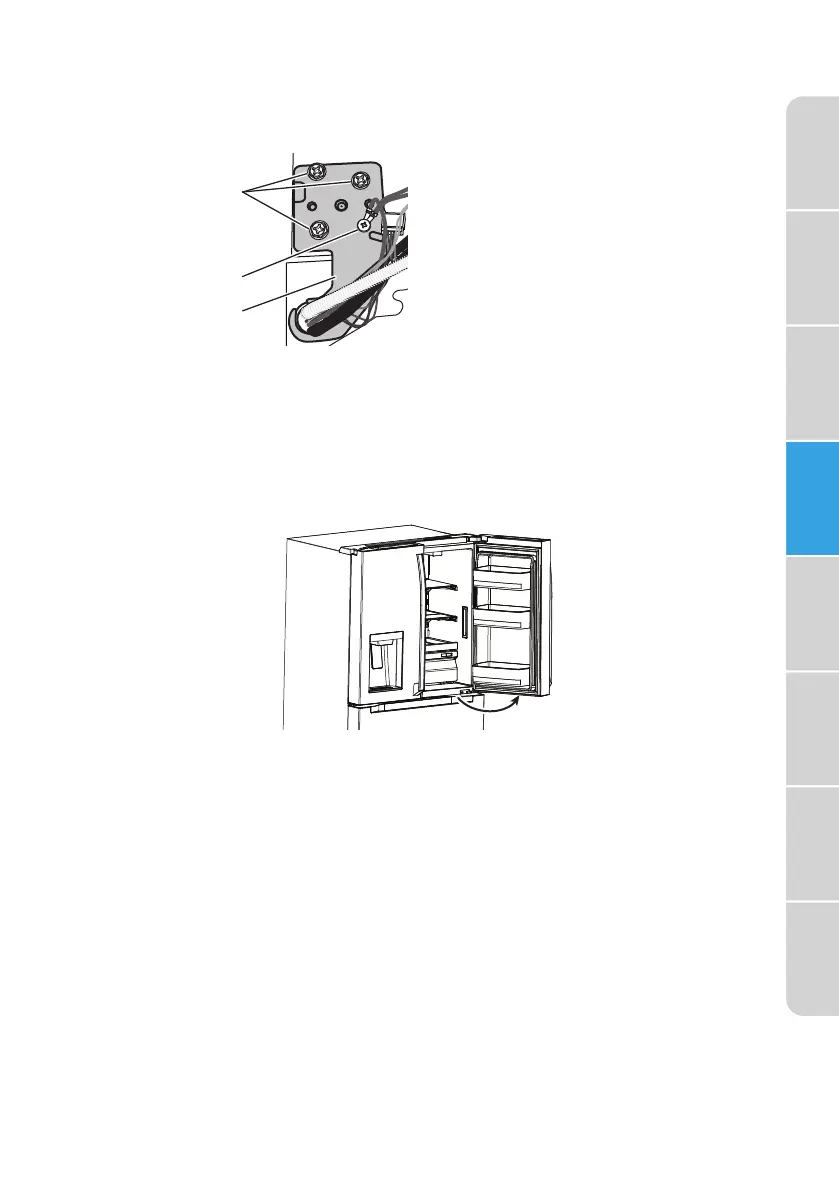

a Hinge screws
b Ground screw
c Top hinge
NOTE: Provide additional support for the door while the hinge is being
removed. Do not depend on the door gasket magnets to hold the door
in place while you are working.
8. Remove the top door hinge.
9. Using both hands, slowly swing the door until it is open to a 90° angle
to the cabinet, and then lift the door off the bottom hinge. Set the
door onto a soft surface to protect the finish.
10. Repeat this procedure to remove the right-hand refrigerator door.
REPLACE DOORS
NOTE: The hinge pin extends from the bottom edge of the door.
1. Insert the hinge pin into the opening in the bottom hinge.
2. Insert the top hinge into the top of the door.
3. Using the hinge screws removed earlier, fasten the top hinge to the top
of the cabinet.
4. Replace the ground screw (left-hand door only).
5. Reconnect the four wiring harnesses (left-hand door only).
6. Reconnect the water line (left-hand door only).
7. Replace the right-hand door following steps 1 through 3.
8. Using the three screws removed earlier, fasten the hinge cover to the
top of the cabinet.
