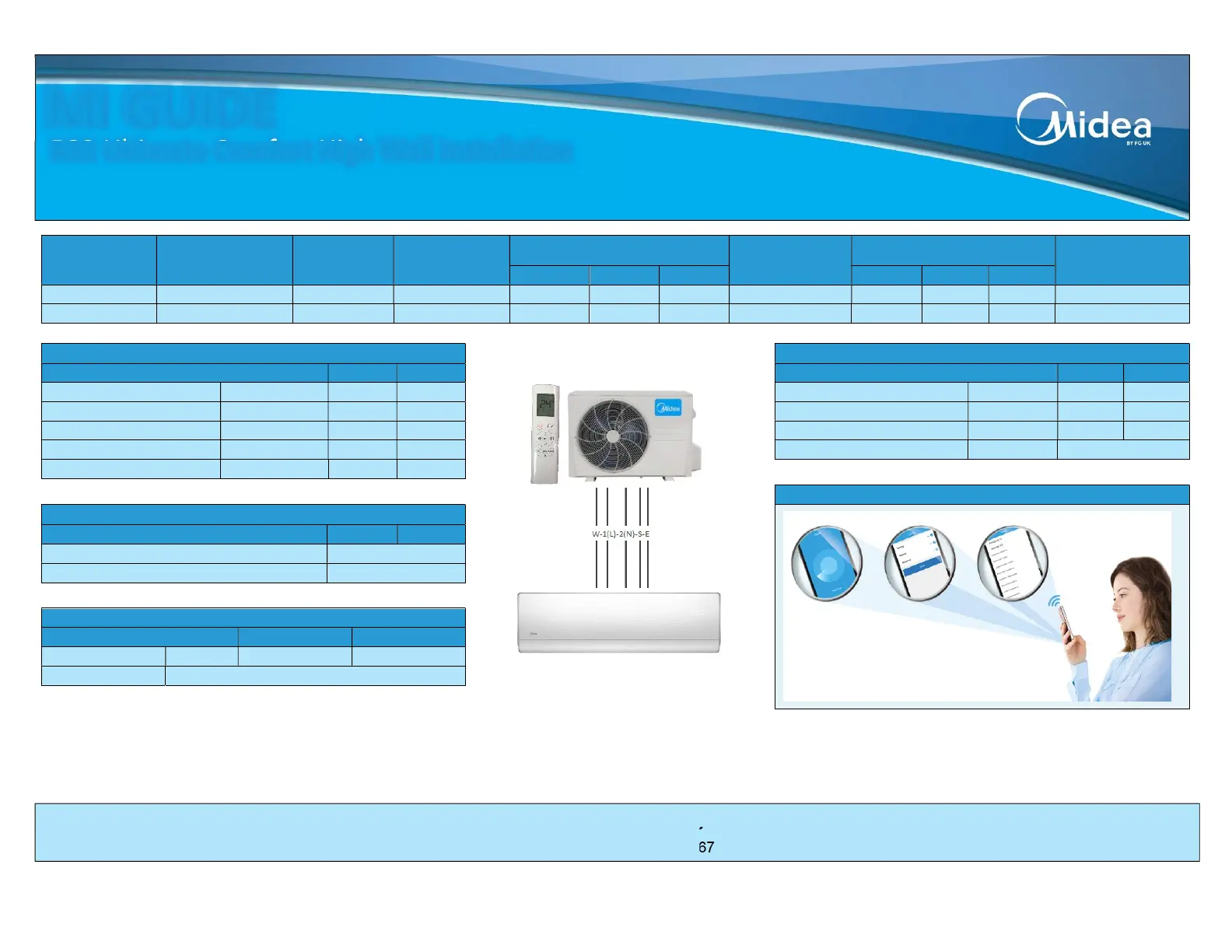

Midea MT-09N8D6-I Quick Step Installation Guide

Indoor
Model
Outdoor Model
Cooling
Duty (kW)
Heating Duty
(kW)
Outdoor Dimensions
Outdoor
Weight (Kg)
Indoor Dimensions
Indoor
Weight(Kg)
W(mm)
D(mm)
H(mm)
W(mm)
D(mm)
H(mm)
MT-09N8D6-I MBT-09N8D6-O 3.3 3.75 800 333 554 29.1 886 188 315 10.3
MT
-
12N8D6
-
I
MBT
-
12N8D6
-
O
4.3
4.4
800
333
554
29.1
886
188
315
10.3
Piping Information
Model: 09 12
Liquid Line
Inch
1/4
1/4
Gas Line Inch 3/8 3/8
Drain Line
Φ mm
16
16
Max Length M 25 25
Max Height
M
10
10
Electrical Wiring Information
Model: 09 12
Mains Outdoor
3x1.5mm
²
Interconnecting/Indoor Power 5x1.5mm²
Power Supply Information
Model: 09 12
Outdoor
Ph/A
1/
16
1/
16
Indoor Powered from Outdoor Unit
Refrigerant Charging Information
Model: 09 12
Pre
–
Charge
Kg
0.65
0.69
Charged to M 5 5
Additional
g/m
1
2
1
2
Refrigerant Type R32
Optional Wi Fi Control Available
R32 Ultimate Comfort High Wall Installation
MI GUIDE
Please contact your Midea support team if you have any issues during the installation and commissioning process.
Midea UK Tel: 0191 263 6367

Midea MT-09N8D6-I Specifications

General

Brand	Midea
Model	MT-09N8D6-I
Category	Air Conditioner
Language	English
