Midea MTA-120CRN1 - Service Space

MCAC-UTSM-2012-12 R410A 50Hz Tropical Split AC
15

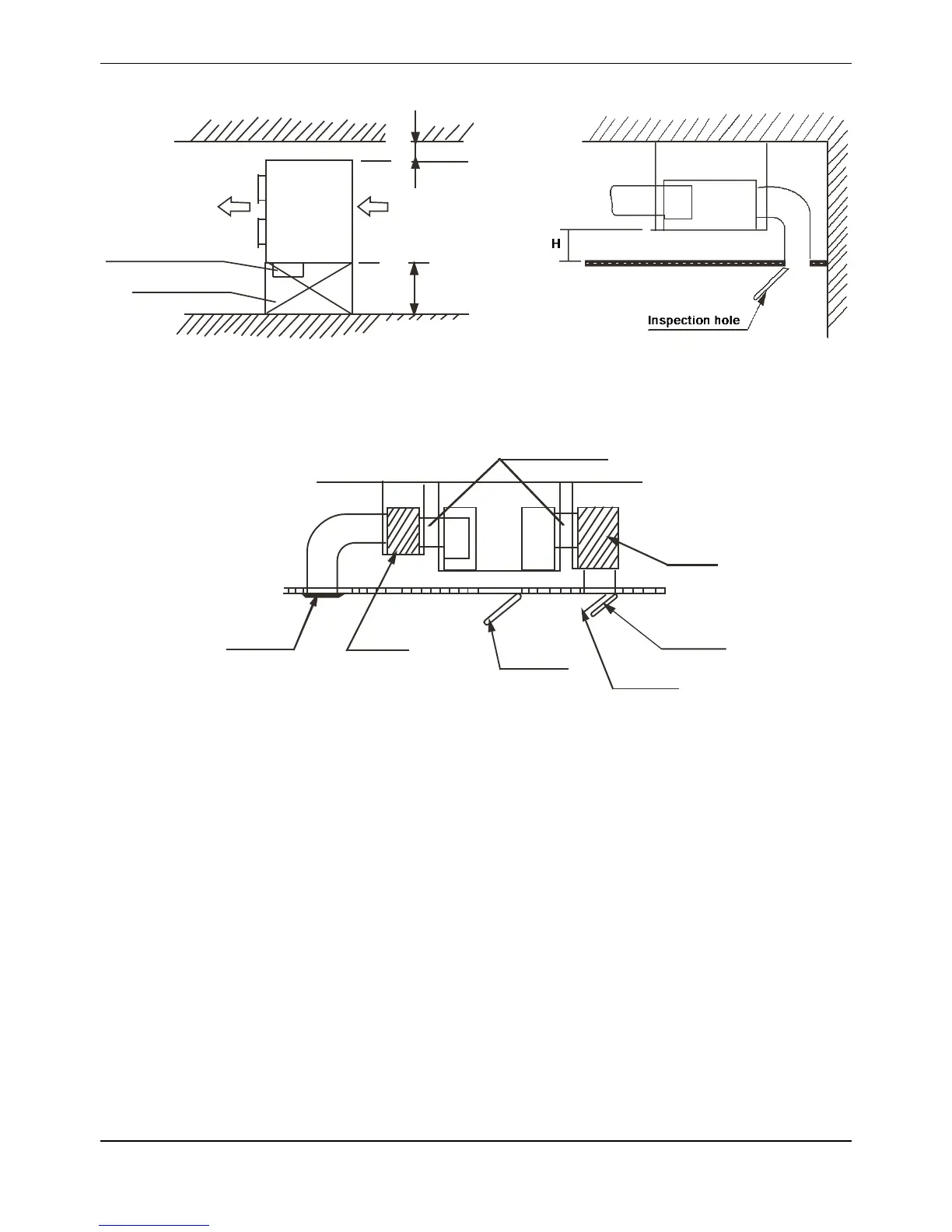

4. Service Space
Electric control box
Inspection hole
≥
6
0
0
m
m
≥
5
0
0
m
m
Top view Side view
Inspection
Canvas adapter
Muffle
Air outlet
Air inlet
Air filter
hole
Muffle
Air duct system
