Midea MTA-76CRN1 - Wiring Diagrams

MCAC-UTSM-2012-12 R410A 50Hz Tropical Split AC
65
6. Wiring Diagrams

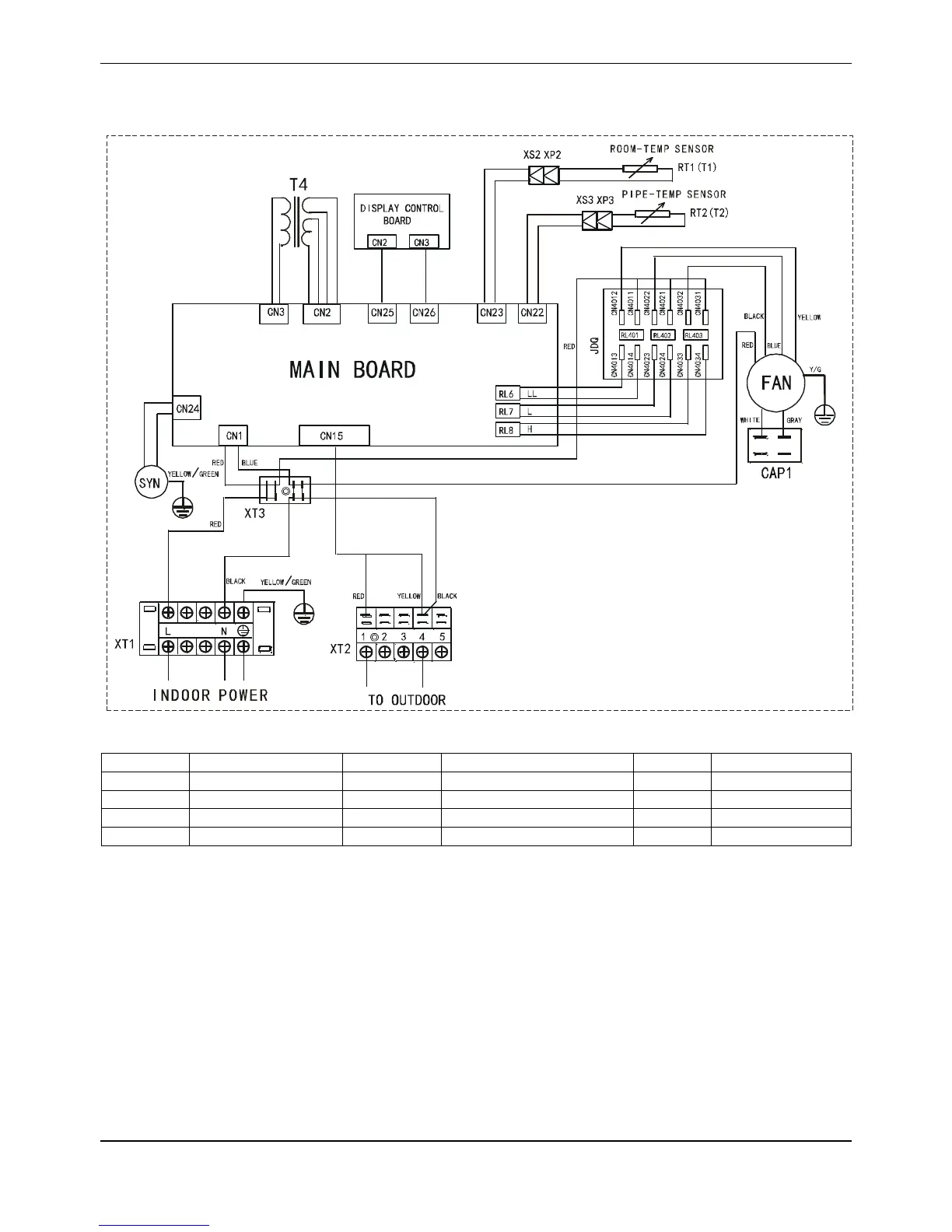

6.1 MFA-76CR, MFA-96CR
Item
Name
Item
Name
Item
Name
CAP1
Fan capacitance
RT1
Room temp. sensor
XS1-3
Connector plugs
FAN
Indoor fan
RT2
Pipe temp. sensor
SYN
Swing motor
XT1-3
Connector
JDQ
Fan aided control board
-
-
T4
Transformer
XP1-3
Connector plugs
-
-
