Midea MTA-76CRN1 User Manual

MCAC-UTSM-2012-12 R410A 50Hz Tropical Split AC
99

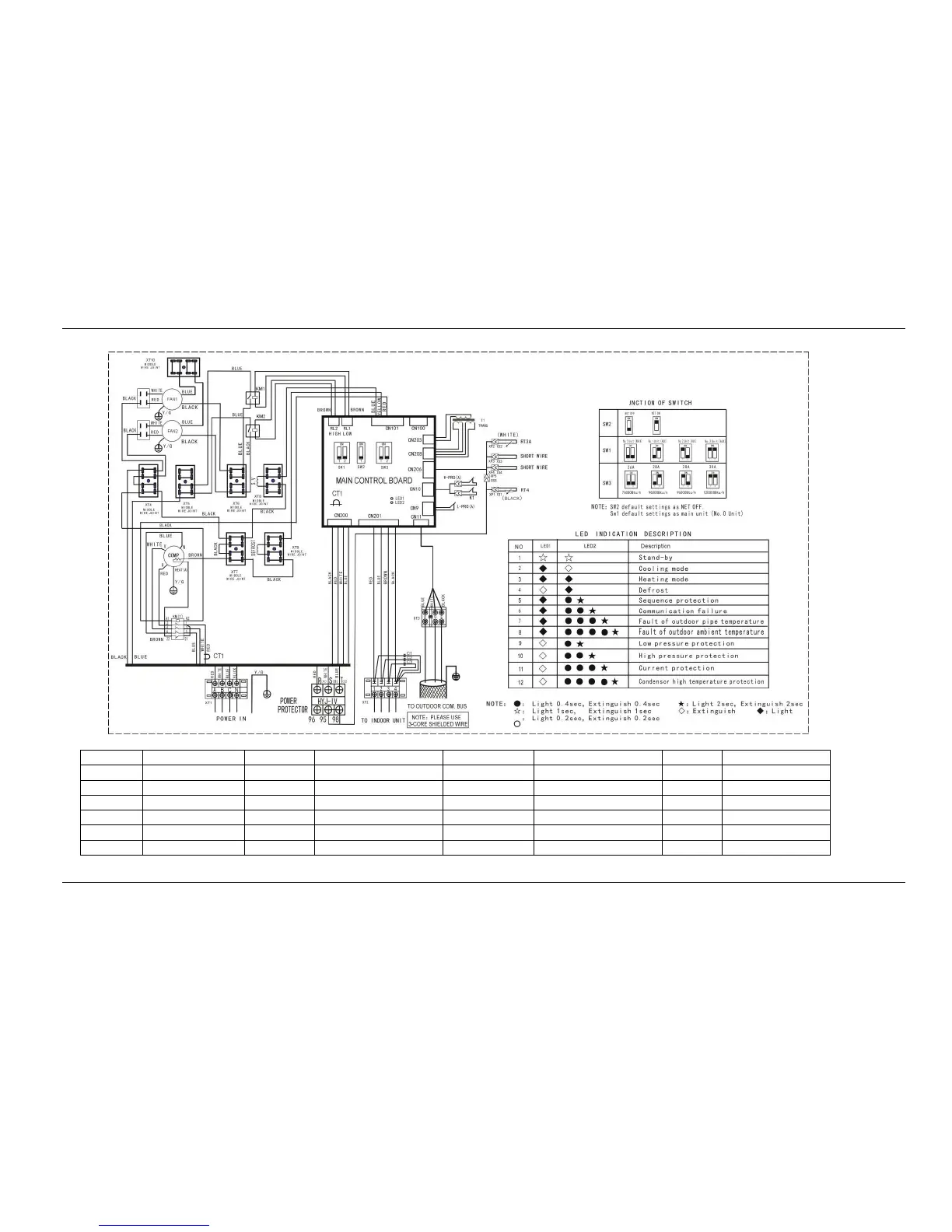

4.2 MOV-76HN1-C, MOV-96HN1-C, MOV-120HN1-C
Item
Name
Item
Name
Item
Name
Item
Name
COMP
Compressor
HEAT(A)
Crank
RT3A
Pipe temp. sensor
T1
Transformer
FAN1-2
Outdoor fan
CT1
Current detector
RT4
Room temp. sensor
SW1-3
Switch
CAP1-2
Fan capacitance
XT1-2
4-way terminal
XS1-5, XP1-5
Connectors
C1-3
Filter capacitor
S.V
4-way valve
XT3
3-way terminal
L-PRO(A)
Low pressure switch
KM1-2
Relay
KM(1)
AC contactor
H-PRO(A)
High pressure switch
K1
Temp. protect switch
CN8-208
P.C. board socket
XT4-10
Middle wire joint
-
-
-
-
-
-

Midea MTA-76CRN1 Specifications

General

Brand	Midea
Model	MTA-76CRN1
Category	Air Conditioner
Language	English
