Outdoor Unit Engineering Data
11.2 Octave Band Levels

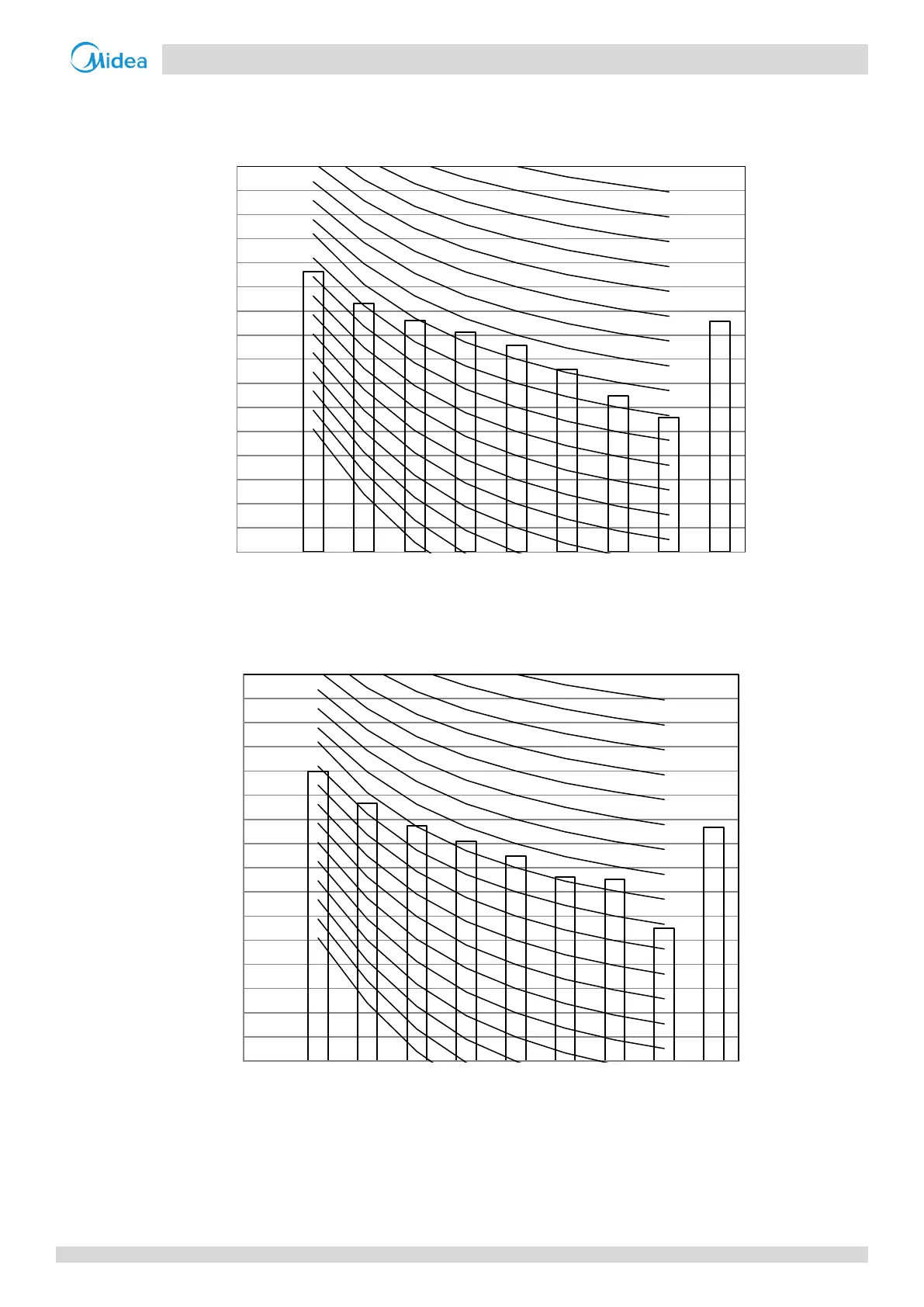

Figure 2-11.2: 8HP octave band level
Octave band sound pressure level (
dB(A)
Octave band center frequency (Hz)
Figure 2-11.3: 10HP octave band level
Octave band sound pressure level (
dB(A)
Octave band center frequency (Hz)
