Midea MV6-R450WV2GN1 User Manual

V6R VRF 50/60Hz
132
Midea
V6R
Series Engineering Data Book

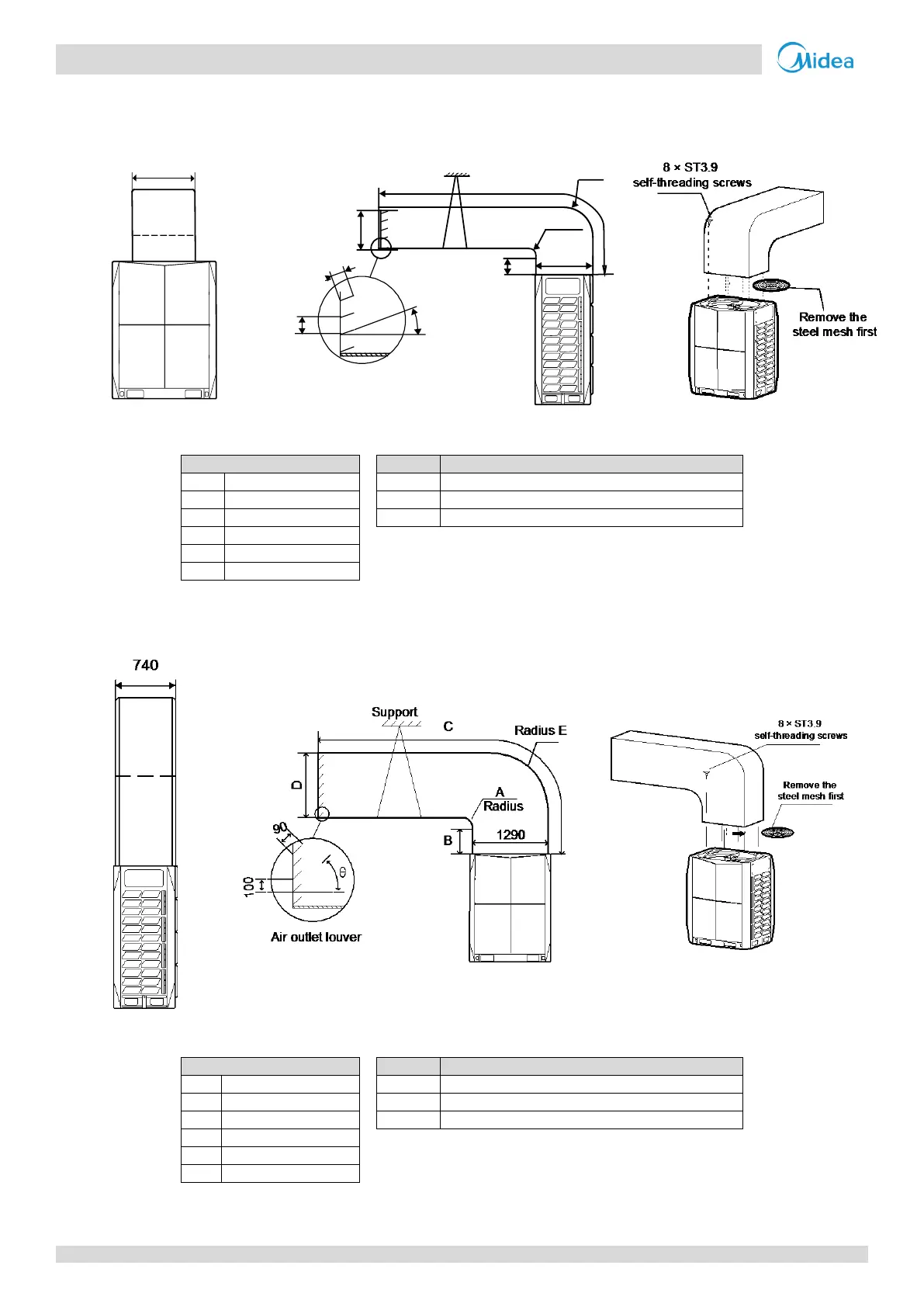

Ducting for 14/16/18/20HP Units
3.3.3 Option A – Transverse ducting
Figure 3-3.4: Transverse ducting for 14/16/18/20HP units (unit: mm))
Table 3-3.5: Duct dimensions
Table 3-3.6: External static pressure
Dimensions (mm)
ESP (Pa)
Remarks
A
A ≥ 300
0
Factory default
B
B ≥ 250
0 – 20
Remove steel mesh and connect to duct < 3m long
C
C ≤ 3000
20-80
Dial switch S4 setting
D
D ≥ 770
E
E = A + 770
θ
Θ ≤ 15°
3.3.4 Option B – Longitudinal ducting
Figure 3-3.5: Longitudinal ducting for 14/16/18/20HP units (unit: mm)
Table 3-3.7: Duct dimensions
Table 3-3.8: External static pressure
Dimensions (mm)
ESP (Pa)
Remarks
A
A ≥ 300
0
Factory default
B
B ≥ 250
0 – 20
Remove steel mesh and connect to duct < 3m long
C
C ≤ 3000
20-80
Dial switch S4 setting
D
D ≥ 1290
E
E = A + 1290
θ
Θ ≤ 15°
800
Air outlet louver
770
A
C
D
B
90
0
0
1
θ
E
Radius
Radius
Support
