Midea MVC-500WV2GN1

VC Pro VRF 50/60Hz
149
Part 3 - System Design and Installation
Ducting for 24-30HP Units
3.3.5 Transverse ducting only

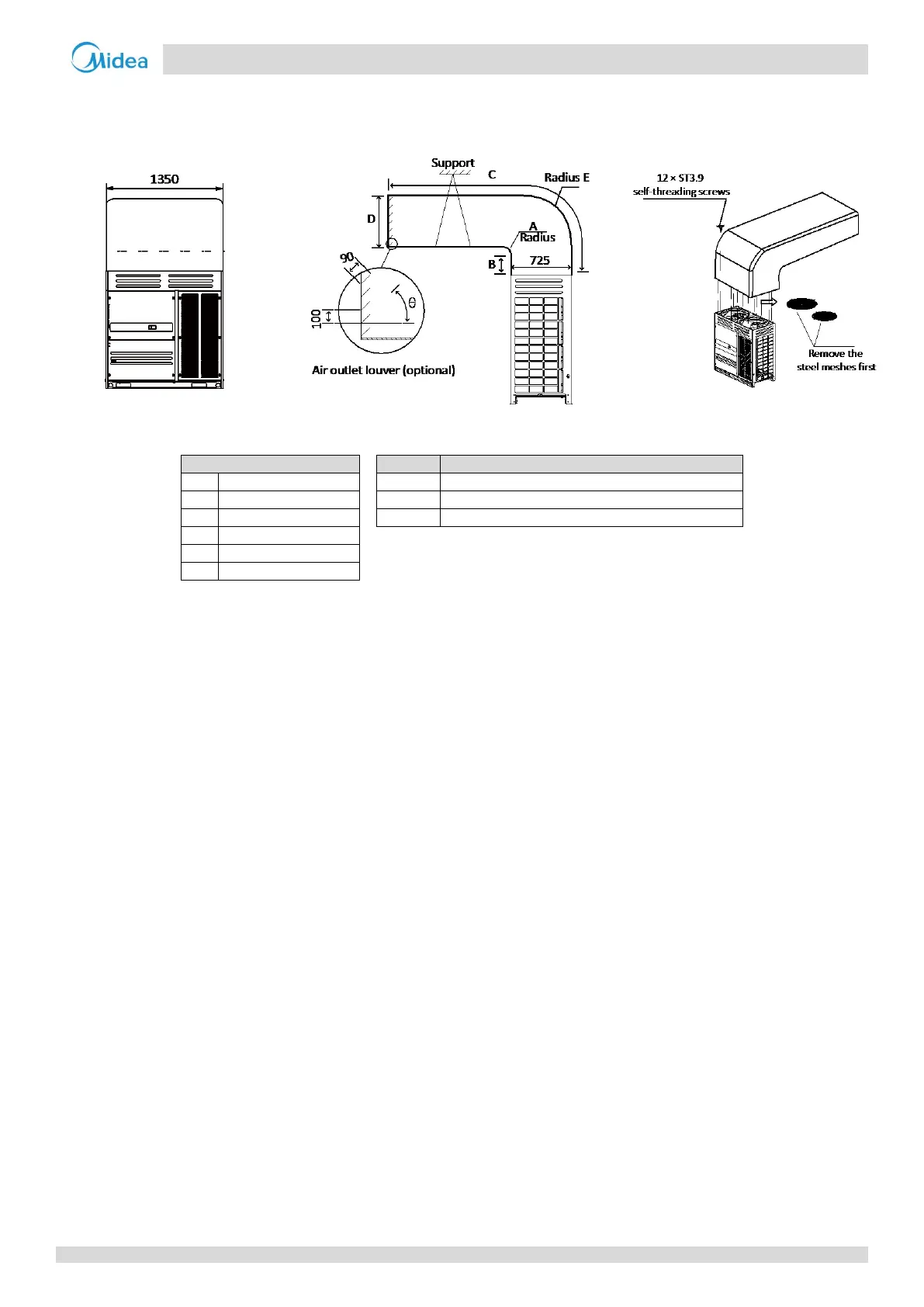

Figure 3-3.6: Transverse ducting for 24-30HP units (unit: mm))
Table 3-3.9: Duct dimensions
Table 3-3.10: External static pressure
Dimensions (mm)
ESP (Pa)
Remarks
A
A ≥ 300
0
Factory default
B
B ≥ 250
0 – 20
Remove steel mesh and connect to duct < 3m long
C
C ≤ 3000
> 20
Customization option
D
725 ≤ D ≤ 760
E
E = A + 725
θ
Θ ≤ 15°
