Midea MVC-500WV2GN1

VC Pro VRF 50/60Hz
43
Part 2 - Outdoor Unit Engineering Data
24-30HP

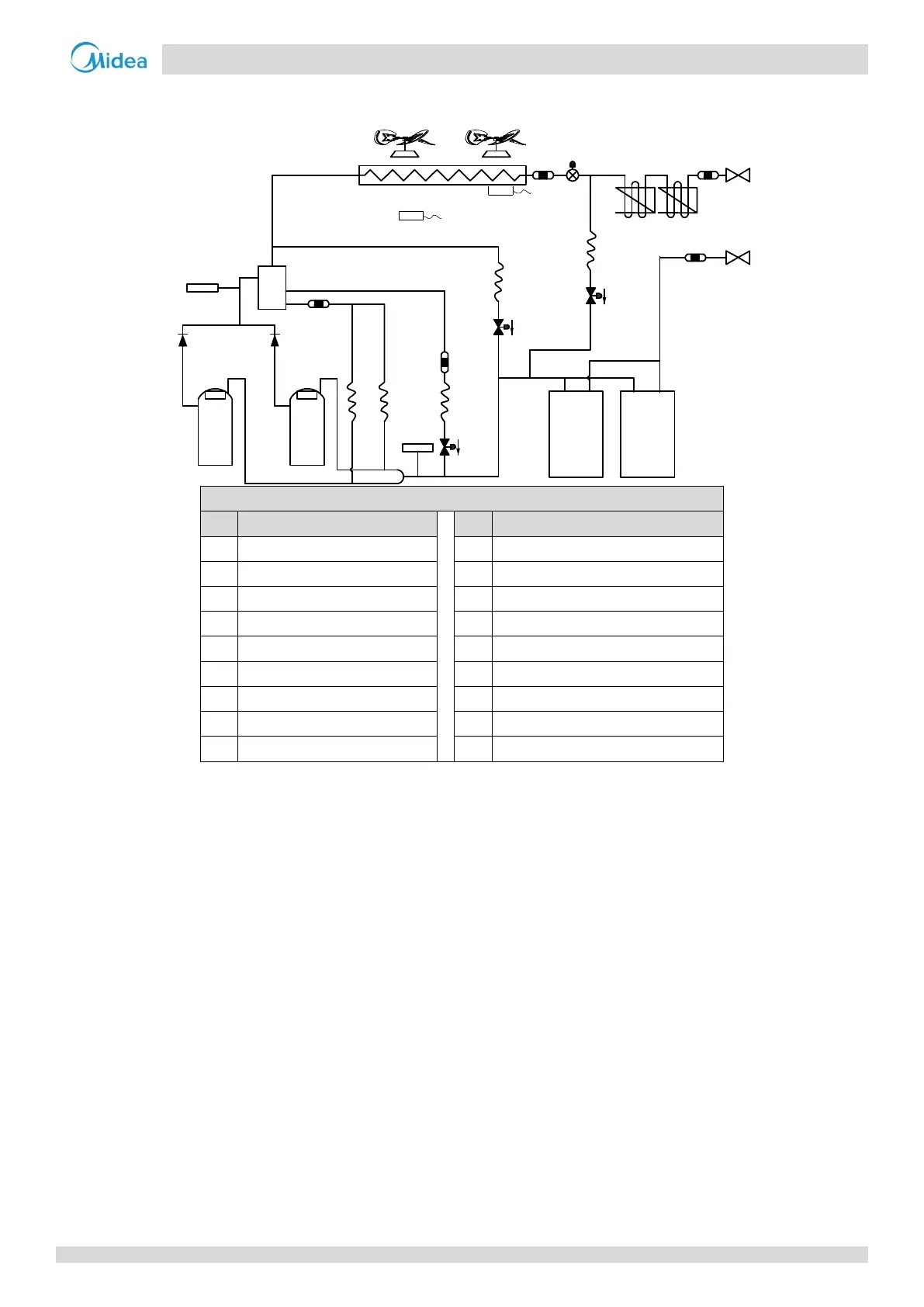

Figure 2-4.3: 24-30HP piping diagram
Legend
No.
Parts name
No.
Parts name
1
Compressor
10
Stop valve (gas side)
2
Discharge temperature sensor
11
Accumulator
3
High pressure sensor
12
Low pressure switch
4
Oil separator
13
Solenoid valve
5
Heat exchanger
T3
Heat exchanger temperature sensor
6
Electronic expansion valve (EXV)
T4
Outdoor ambient temperature sensor
7
Fan motor
SV2
Liquid injection valve
8
Fan
SV4
Oil return valve
9
Stop valve (liquid side)
SV7
Pressure valve
13
SV7
13
SV2
3
4
12
11 11
13
SV4
2
1
2
1
9
10
8
7
8
7
5
6
EXVA
XX°C
T3
T4
XX°C
