V6-i VRF 50Hz
28
Midea V6-i Series Engineering Data Book

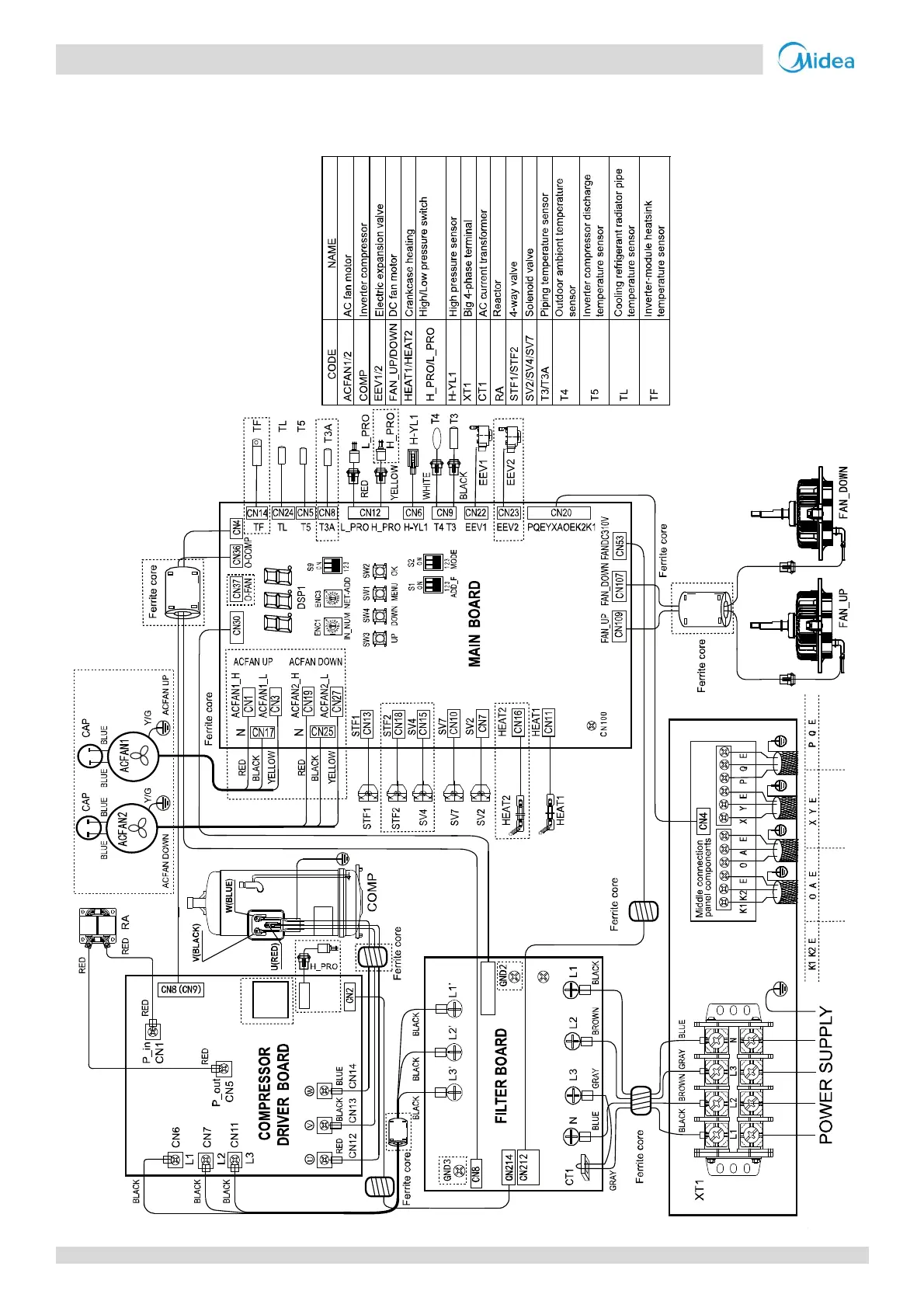

5 Wiring Diagrams
Figure2‐5.1:Wiringdiagram
PED-
MD-
BOARD
CN22
CN23
To centralized
controller
To kilowatt-
hour meter
Reserved
To indoor
units communi-
cation bus
(CN10)
CN30(CN11)
PE1(GND1)
or shorting stub
