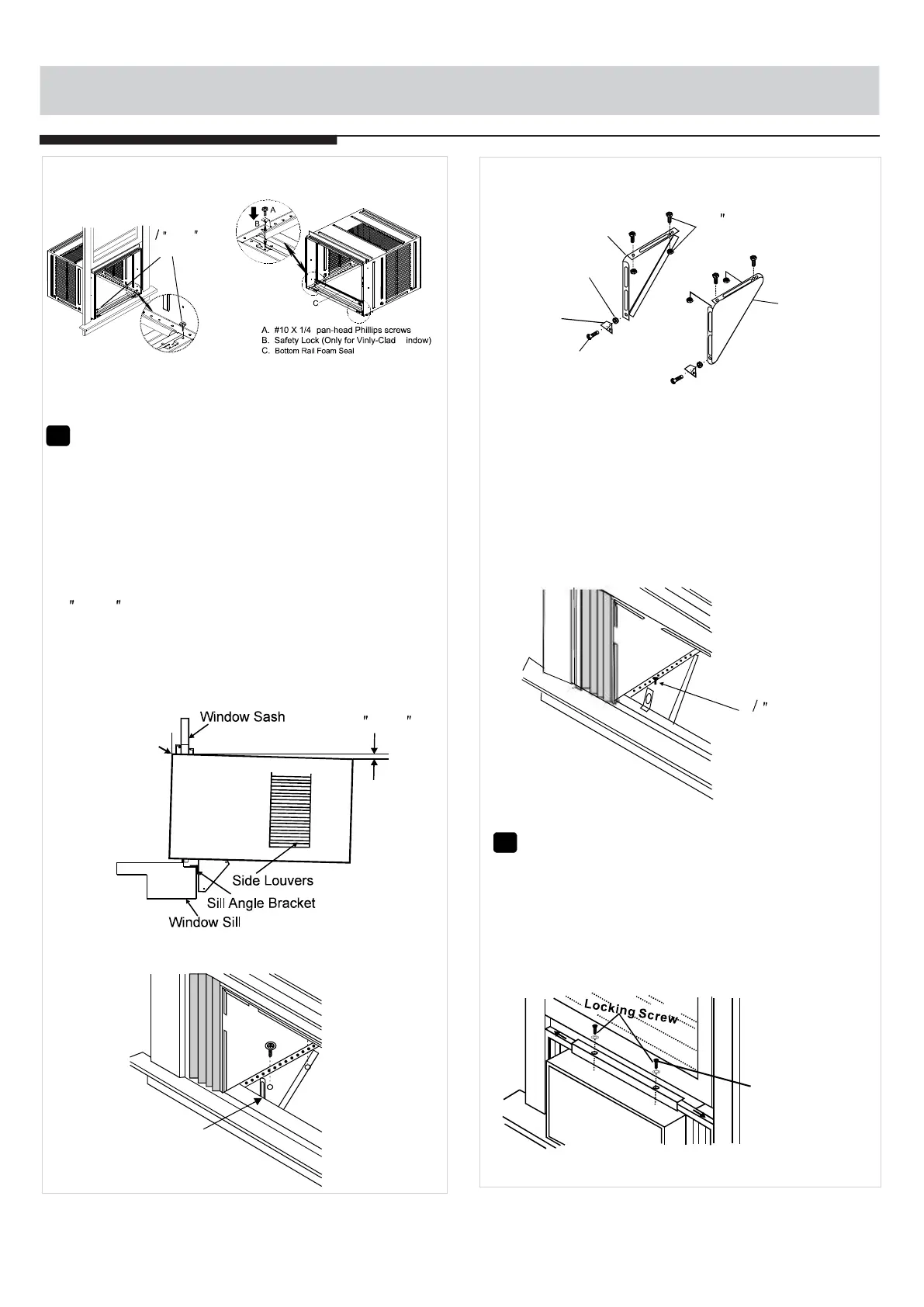

INSTALLATION INSTRUCTIONS
5
Install Suppor t Bracket
1. Hold each support bracket flush against
outside of sill, and tight to bottom of cabinet
as shown in Fig.15A. Mark brackets at top level
of sill and remove.
2. Assemble sill angle bracket to support
brackets at the marked position(Fig.15B).
Hand tighten, but allow for any changes later.
1 2 Long Screws
And Locknuts
Left
Right
Sill Angle
Bracket
Flat Head
Bolt
2 Each Required For
Each Support Bracket
Locknut
Fig.15A
Mark
Fig.15B
3. Close window behind top angle.
6
Extend Window Filler Panels
1. Carefully raise window to expose filler panel
locking screws. Loosen screws so filler panels
slide easily.
2. Extend panels to fill window opening completely.
Tighten locking screws on top(Fig.17).
3. Install support brackets(with sill angle
brackets attached) to correct hole in
bottom of cabinet as shown in Fig.16.
4. Tighten all 6 bolts securely.
1 2 Long Screws
and Locknuts
7/16"Locking Screw
and Washer
Fig.16
Fig.17
FIG.14
5
About1 / to1 /
1 5
4 8
Measure from
the cabinet edge.
NOTE: Check that air conditioner is tilted back about
1 / to 1 / (tilted about 3 to 4 downward to the outside).
After proper installation, condensate should not drain
from the overflow drain hole during norma l use, correct
the slope otherwise (Fig.14).
1 5 O O
4 8
3 4 (or1 )Long
Hex-head Screw
/2
Fig.13
Fig.13B
