Page 22
Installation
Instructions
WARNING
You must extend the
Anti-Tip Brackets into the
Window Track Opening.
Failure to follow this warning
may cause serious injury.

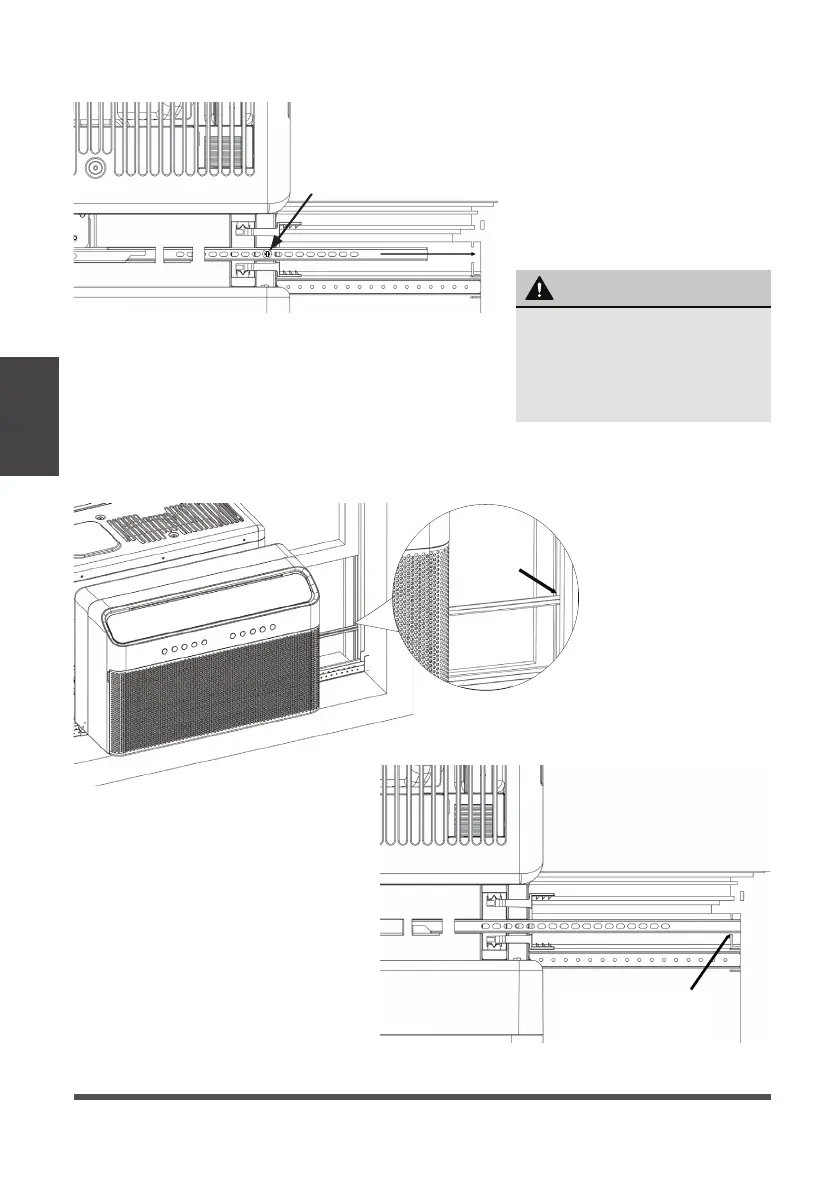

The images below show how the Anti-Tip Bracket is to be installed in the window track.
Note the Side Arm Foam was removed for illustration purposes only.
Top view
Extend into Window Track
The factory installed 1/2“ screw
must be re-used to secure the
Anti-Tip Bracket. Failing to use
this screw could damage the
air conditioner.
Top of Unit
D. The Anti-Tip Brackets
must be extended into the
window track opening (the
vertical track your window
slides up and down in) until
they stop.
Secure the brackets in place
by using the provided 1/2“
Phillips head screw.
Fig. 21
Fig. 22
Top view
Anti-Tip Bracket
Installed in Window
Track Opening
Fig. 23
To Next Page
