Installation
Instructions
IF AC IS BLOCKED BY STORM WINDOW
SASH
OUTSIDE INSIDE
1-1/2" min
(38 mm)
Board thickness as
required, for proper
pitch to rear, along
entire sill. Fasten
with nails or screws.
Storm window
frame or other
obstruction.
Add wood as shown, or remove
storm window before air
conditioner is installed.
If storm window frame must
remain, be sure the drain holes or
slots are not caulked or painted
shut. Accumulated rain water or
condensation must be allowed to
drain out.
You must secure the support
bracket to the added wood piece
using the provided 1” Type A
Screws. Refer to the Open Window
Bracket installation step.

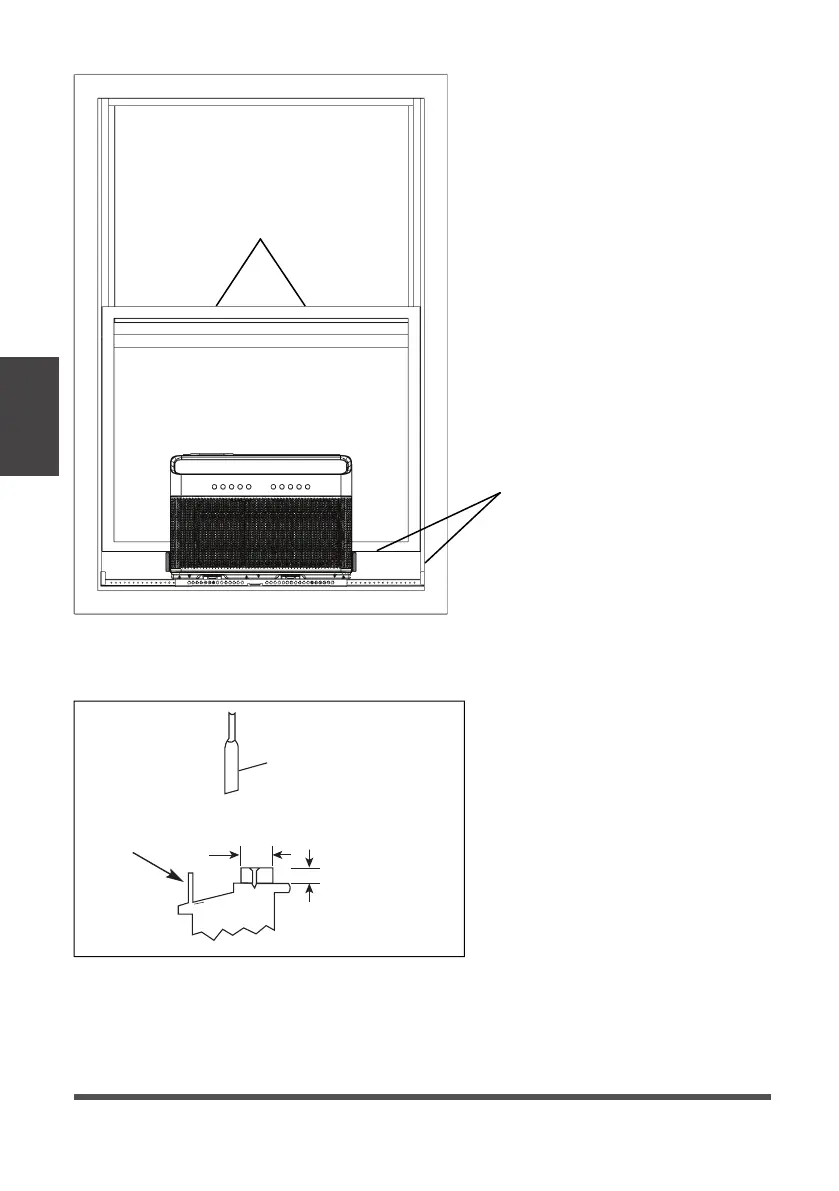

Final Check: Review the installation
and check for any gaps or
openings to the outdoor air. Cover
these gaps with the provided
foam ensuring no outdoor air leaks
inside. See image for areas to
check for gaps.
Check
for Gaps
Check for Gaps
Fig. 27
Fig. 28
