GD Midea Refrigerant Equipment Co. Ltd Service manual for E1 Window
5
2.4.2 Installation of the unit into the housing
1. Slide the unit into the housing until it is firmly against the rear of the housing. Care is
required to ensure the foam sealing strips on the housing remain in position.
2. Connect the air conditioner to the power and position excess cord length beneath the
air conditioner base.
3. Engage the chassis fixing brackets
into the bottom housing rail and
secure to the base with the screw
provided.
4. Remove the front panel from it's
carton and plastic bag and fit as per
the installation instruction.
5. Switch unit on. Check for operation of
the unit and check for vibration in the
installation.
6. Fit the drain pan to the housing and
run a drain line to a suitable location if
required.

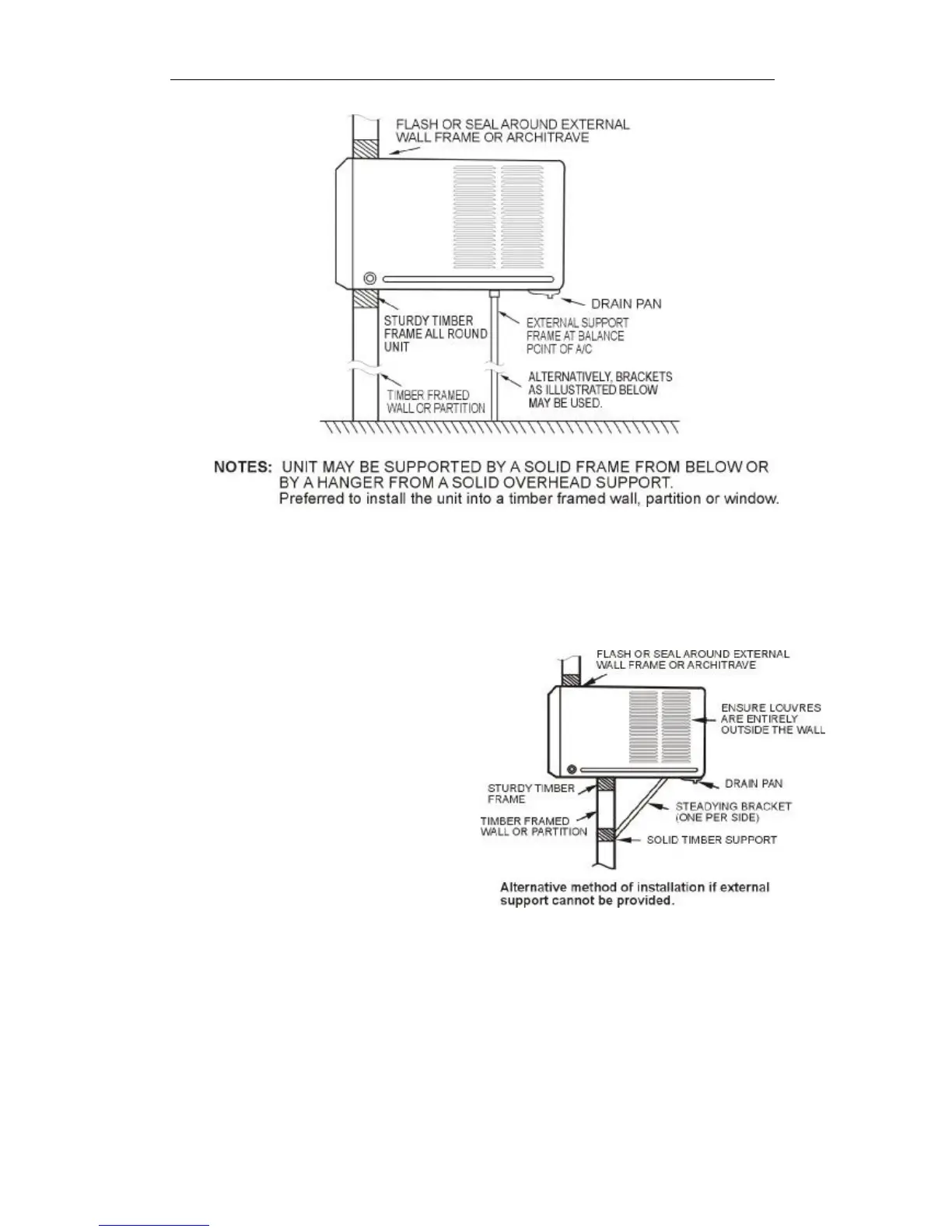

2.4.3 Installation of the unit into the wall
